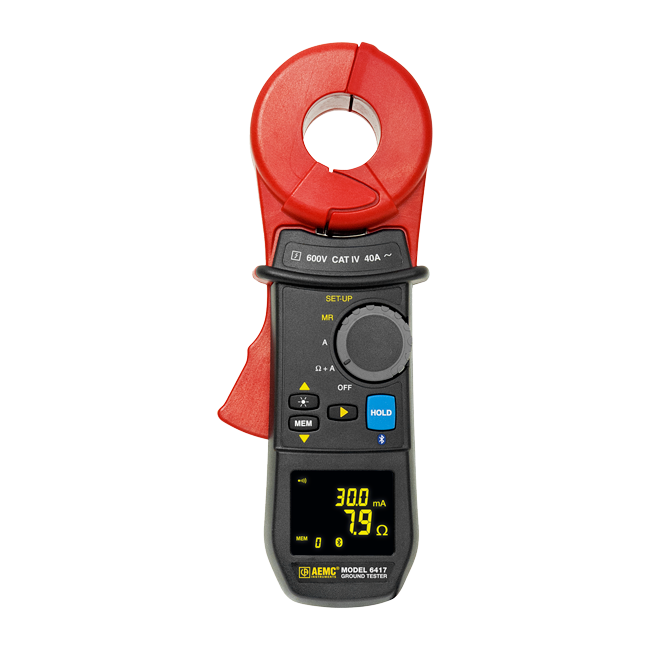

AEMC 6417 (2141.02) Clamp On Ground Resistance Tester

Description :

Ground Resistance Tester Model 6417 measures ground rod and grid resistance and impedance without the use of auxiliary rods. Clamp-on ground resistance testers can be used in multi-grounded systems without disconnecting or de-energizing the ground system under test it. The Model 6417 simply clamps around the grounding electrode or conductor and measures the resistance to ground. By performing measurements on intact ground systems, the user also verifies the quality of the grounding connections and bonds. Resistance and continuity of grounding loops around pads and buildings may also be measured.

Features :

Ground voltage indication (warns of possible unsafe conditions)
Large multi-function bright yellow organic LED display (OLED)
Selectable test frequency (improves accuracy in inductive environments)
Auto Power OFF function
Alarm function with adjustable set point and buzzer for quick field checks for volts, amps and ohms
Easy clamp opening via force compesation trigger system with 35mm clamp diameter
Differentiates between loop and ground resistance measurements
Selectable test frequency for improved accuracy in inductive environments
Stores up to 300 measurements (Ω, A,V and µH with time-stamping)
Uses 4×1.5V LR6 (AA) Alkaline batteries
Rugged Lexan® head and body construction resists breakage
Alarm settings and stored memory information saved during shutdown
Designed to EN 61010-1, 600V CAT IV safety standards
Noise icon and buzzer alert user to presence of dangerous voltage and current levels
splays stored measurements on the OLED display or via Bluetooth (Class 2 -communicates up to 30 ft) to a PC or the Android™ based mobile application
Includes DataView® software for data storage, real-time display, analysis, report generation and system configuration

What’s in the Box :

(1) Users Manual
(1) Hard carrying case
(1) Calibration loop
(4) Batteries
(1) USB stick with ground tester workbook
(1) DataView software
(1) Quick start Guide

Clamp meter adalah sebuah alat ukur yang sangat nyaman digunakan yang memberikan kemudahan pengukuran arus listrik tanpa mengganggu rangkaian listriknya. Saat melakukan pengukuran arus listrik menggunakan multimeter, kita harus memotong kabel/memutusnya dan menghubungkan alat ukur tersebut ke rangkaian yang hendak diukur. Namun jika menggunakan clamp meter/tang ampere, kita dapat mengukur arus dengan hanya meng-clamp kan pada salah satu kabel/konduktor. Salah satu keuntungan dari metode ini adalah kita bahkan dapat mengukur arus tinggi tanpa harus mematikan terlebih dulu rangkaian yang akan diukur.
Update Jual AEMC 6417 (2141.02) Clamp On Ground Resistance Tester dengan harga murah dan garansi resmi dari distributor. Dapatkan produk terbaik dari merek AEMC dengan spesifikasi lengkap.

Belanja online Clamp Meter hanya di Kucari dengan kualitas terbaik, harga murah bersaing, bisa COD, Gratis pengiriman wilayah Jakarta dan sekitarnya. Beli sekarang hanya di toko online terpercaya.

Pengiriman ke seluruh Indonesia seperti Jakarta, Bandung, Bekasi, Depok, Cikarang, Tangerang, Lampung, Pontianak, Jogja, Semarang, Solo, Batam, Padang, Pekanbaru, Malang, Surabaya, Medan, Makassar, Balikpapan, Samarinda, Palembang, Riau, Aceh, Manado, NTT, NTB, Papua dan Bali Denpasar.

Specification: AEMC 6417 (2141.02) Clamp On Ground Resistance Tester

Berat 1 kg
