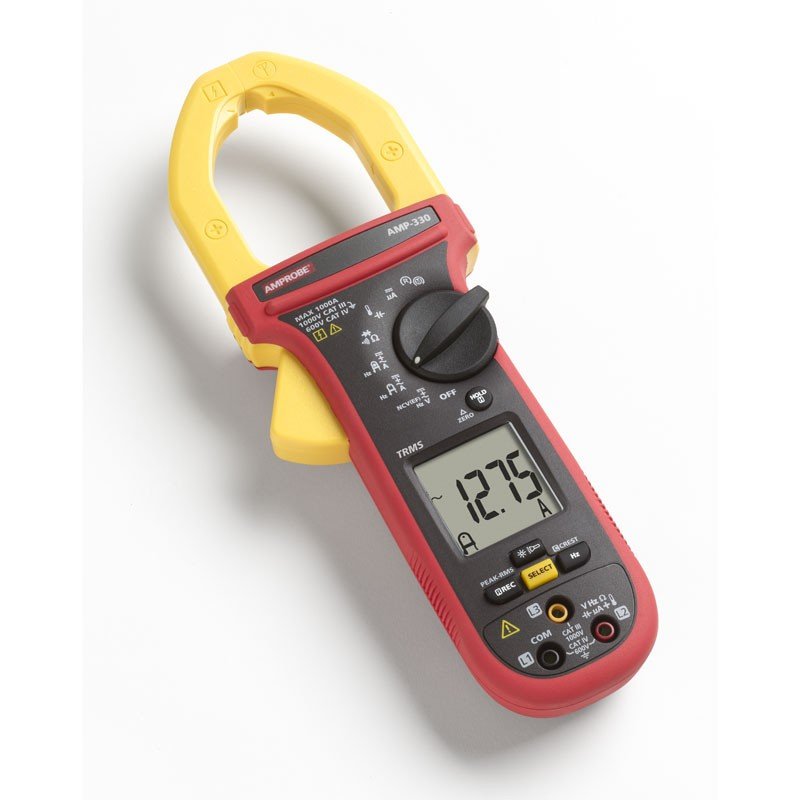

AMPROBE AMP330 AC/DC TRMS Clamp Meter

Description :

Amprobe AMP-330 True-RMS Multimeter Clamps offer customers a complete range of measuring functions for modern industrial environments, motor testing and HVAC applications. This model features True-RMS sensing, low pass filters and fast response processors for quick, error-free measurements. The Amp-Tip function allows for precise measurement of current down to the tenth of an Amp, and a third input jack enables motor rotation and 3-phase sequence testing. The True-RMS function allows for accurate measurement of current, voltage and frequency on all electrical systems, even distorted, non-sinusoidal signals. The low pass filter allows measurement of current and voltage on variable frequency drives (motors with speed controlled by frequency). Without this feature, the meter would provide erroneous readings when measuring voltage and current. This clamp meter also has resistance and continuity functions to verify quality of electrical connections and to check if motor and transformer coils are working properly. In addition, this multimeter also has Inrush current measurement for motor start-up monitoring, allowing users to verify that the motor is receiving the required inrush current to support proper motor start, as wll as capacitance measurement for the starting and runing motor capacitors. The AMP-330 model is available for both AC and DC measurements.

Features :

Measures AC/DC Current to 1000 A and AC/DC Voltage to 1000 V
Measures temperature from -40° to 752°F, (-40° to 400°C)
Measures DC Microamps output to test proper operation of the flame sensor on gas appliances
Measures capacitance, test diodes, and features a continuity beeper
Tests 3-phase sequence and motor rotation to ensure proper connection of a motor to a 3-phase system
Monitors inrush current during motor start-up
Features True-RMS sensing for accurate voltage measurements in noisy electrical environments
Amp-Tip function delivers precise low AC current measurements – 0 to 60 A
Includes a low pass filter to accurately measure voltage and current on variable frequency drives
Provides resistance and continuity measurement capabilities to verify the quality of electrical connections and the proper operation of motor and transformer coils
Provides data hold, relative zero, and MAX/MIN/AVG mode for quick analysis
Maximizes battery life with auto power off and low battery indicator
Backlit display for easy measurement viewing in bright and dim environments
CAT IV 600 V, CAT III 1000 V safety rated
Boasts peak hold and work light
Accommodates conductors up to 2.0 inches (51mm)
Includes test leads, batteries (installed), alligator clip set, banana plug K-type thermocouple, carrying case, and user manual

What’s in the Box :

(1) Test Leads
(1) Aligator clip set
(1) Banana plug K-thermocouple
(2) AAA Batteries (installed)
(1) User Manual
(1) Carrying Case
