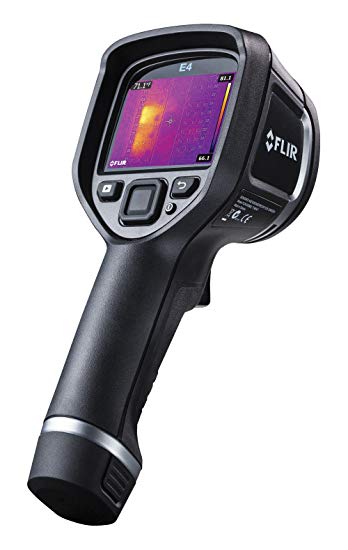

FLIR E4 Compact Infrared Thermal Imaging Camera

Description :

Flir E4 Infrared Camera is a sophisticated point-and-shoot infrared camera that combines the best performance and value in compact thermal imaging cameras. Designed to fit beautifully into your IR inspection program, budget, and the palm of your hand, the Flir E4 quickly pays for itself by identifying electrical, mechanical, or building envelope issues before a failure occurs or an expensive tear-down is required.

Flir E4 is easy to use out of the box and offers a temperature range of 2 to 250°C (-4 to 482°F) with an accuracy of ±2% and a thermal sensitivity of < 0.07°C. With it’s economic pricing and it’s dramatic MSX thermal images, that clearly reveal problems from sources of energy loss, moisture intrusion and structural issues to overheating electrical and mechanical equipment, the Flir E4 is an overall versatile Thermal Imager.

With the the 4800-pixel thermal image clarity, the Flir E4 camera offers a resolution to fit the target size, working distance, and detail required for various applications and situtations as well as your budget. The Flir E4 on up feature an on-screen center spotmeter for measuring temperatures. With the Flir E4, the user can view thermal, visual, and MSX images and store them simultaneously for further analysis using FLIR Tools software.3

A focus-free lens and simple button navigation to on-screen settings, imaging modes, measurement tools, and saved JPEGS make all four of these cameras amazingly easy to operate, even with just the press of a single gloved thumb.

Thanks to it’s built in Quick-release feature, the Flir E4’s tool-type Li-ion battery is easy to remove, recharge and snap back in. Additionally, the Flir E4 can recharge itself either with the Charge in-camera or with the optional charging station to keep you up and running all day.

Features :

Display: 3″ color LCD
On-board 640 x 480 Digital Camera
Easy-to-use, weighs only 1.2lbs
2% accuracy
File format: Radiometric jpg
Swappable Li-ion Battery with 4 hour life
Spot Measurement mode
Simultaneous Storage of IR/Visual/MSX Images
Variable emissivity and reflected temperature parameters for detection accuracy

Specification
Imaging and Optical Data Specifications
IR Pixel Resolution    4,800 (80 x 60)
MSX Resolution    320 × 240
Thermal Sensitivity    <0.15°C
Frame Rate    9Hz
Field of View    45° x 34°
Focus    Focus free
Detector    Uncooled Microbolometer
Screen    3.0 inch Screen
320 × 240 color LCD

Analysis Specifications
Image Modes    IR image, visual image, MSX, thumbnail gallery
Multi Spectral Dynamic Imaging (MSX)    IR image with enhanced detail presentation
Picture-in-Picture    N/A on this model
(Featured on: E6, or E8)
Temperature Range    -4 to 482°F (-20 to 250°C)
Accuracy    ±2% or 2°C
Measurement Modes    Spot (center) mode
Alarm    N/A on this model
(Featured on: E6, or E8)
Emissivity Correction    Variable from 0.1 to 1.0
Auto Hot/Cold Detection    N/A on this model
(Featured on: E5, E6, or E8)
Set-Up Specifications
Color Palettes    Iron, Rainbow, and Gray
Set-up Commands    Local adaptation of units, language, date and time formats

Image Storage Specifications
Storage Capacity    Internal memory store at least 500 sets of images
Storage Mode    Simultaneous storage of images in IR, visual and MSX
File Formats    Standard JPEG, 14-bit measurement data included

General Specifications
Battery Type    Swappable Li-ion Battery
Battery Life    4 Hours Per Charge
Drop    2 meter / 6.6 ft
Weight    1.27 lbs (0.575 kg)

Complette Package :

Thermal Camera
Hard Transport Case
USB Cable
Power Supply/Charger
Rechargeable Battery
