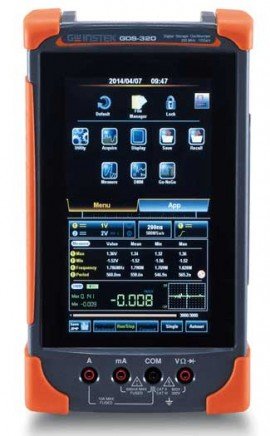

GW Instek GDS310 Digital Storage Oscilloscope
GDS-310 handheld digital storage oscilloscope is a compact DSO developed by GW Instek. The GDS-310 introduces a 7” capacitive full touch panel LCD which can be positioned in portrait and landscape display. The recharging-battery design makes the series easy to operate for field operations. The GDS-310 is suited for applications in laboratories, R&D, large electric system tests, power product tests, motor tests, solar power battery inspection and repair, and maintenance personnel who are always on field assignments. The GDS-310 also includes a temperature measurement and logging function.
GDS-310, with two analog signal input channels, has a bandwidth of 100 MHz and the maximum sample rate per channel is 1 GSa/s with a memory depth of 5 Mpts. The GDS310 has a 50,000 count DMM which can simultaneously measure and monitor A.C. and D.C. voltage, and current. Trend plots over long periods of time can also be drawn which allows engineers to effectively monitor standard electric parameters while measuring basic circuit signals.
optional 40 MHz dual-channel differential probe can achieve equivalent isolation results for measurement systems under strict power and grounding environments. Users can also easily apply the oscilloscope as a very convenient USB storage equipment to store waveform images and raw data. Additionally, the oscilloscope can be connected with smart phones to transmit the recorded data.
Engineers are aware of GW Instek oscilloscopes’ thoughtful designs through diversified application software. Advanced DMM functions and GO/NOGO template editing facilitate users in conducting advanced diversified measurement functions. Engineering calculator, attenuation calculation analysis, and resistance indication analysis help users apply auxiliary functions that demonstrate the concept of powerful and comprehensive technological integration.
GDS 310 oscilloscope adopts a full touch panel capacitive LCD. In the era of smart phones, GW Instek can also usher users into the full touch panel measurement era. With only one finger, users not only can move waveform up and down but also the trigger line position. Two-point touch panel is also applied. Engineers can use two fingers to adjust vertical voltage levels and to enlarge or narrow time division scales. The brand new touch panel and swift response renews your measurement concept. Additionally, one finger drag menu selection allows users to follow their intuition to locate required measurement functions, and to save and retrieve diagrams and data anytime anywhere.
Engineers have different requirements under different environments. When field test and measurement is necessary engineers often need portrait displays to conduct measurement due to environment limitation and the emphasis of integrated functions. Waveform measurement and DMM can be simultaneously operated. When indoor test and measurement is required engineers often need stable measurements and large screen which is answered by landscape display. 7” full measurement screen can also be applied as a stable desk-top oscilloscope.
Traditional oscilloscopes can not meet users’ requirements of conducting integrated system circuit measurement. One extra DMM is often required to work with traditional oscilloscopes to handle enormous test requirements. GDS-310 oscilloscope integrates the functions of oscilloscopes and DMMs to conduct simultaneous measurements. In the analysis of system circuit waveforms, GDS-310 can also use DMM to measure basic voltage and current of the peripheral components that provides users with very powerful test integration.
Once engineers finished waveform measurement and report compilation, the GDS-310 oscilloscope can be used as USB storage component to retrieve and store files. Briefing speaking, users can use USB connecting cables to connect GDS 310 with a PC or handheld device to retrieve any required files for follow-up actions. Today, the smart phone is ubiquitous, so the screenshots and measurement results of GDS-310 can be transmitted via smart phone saving a lot of trouble.
GDS-310 oscilloscope’s built-in temperature measurement and logging function allows users to conduct systematic temperature measurement and logging for electric components and electric systems. This function can collocate with different temperature measurement probes. B,E,J,K,N,R,S,T thermal coupling measurement probes are also supported to conduct Celsius and Fahrenheit scaled temperature measurement. Users can also use trend plot editing to conduct temperature monitoring in a long period of time. It is a simple and convenient measurement tool for quality assurance and test departments.
This model has a bandwidth of 100 MHz, Two Input Channels
Maximum 5 M Memory Depth Per Channel
1 GSa/s Maximum Sample Rate
7” 800 x 480 Full Touch Panel Capacitive LCD Multi-Point Control, Landscape and Portrait Display
Built-In 50,000 Counts DMM
30,000 Consecutive Waveform Records Logging Function, Replay Measurement Results Any Time
Temperature Measurement and Logging Function
Built-In Engineering Calculator, SMD Resistance Coding, Color Coding Info, and Attenuator Calculation Application Software
Compact and portable for easy transportation
Differential Probe to Achieve Isolation Effect (Optional)
What’s in the Box :
(1) Quick Start Guide
(1) User Manual
(1) Power Cord
(1) 100 MHz Probe Suitable for GDS-307/207, GDS-310/210
(2) Multimeter Test Leads
(1) Soft Carrying Case
(1) Soft Carrying Bag
(1) AC-DC Adaptor
(1) Wrist Strap
