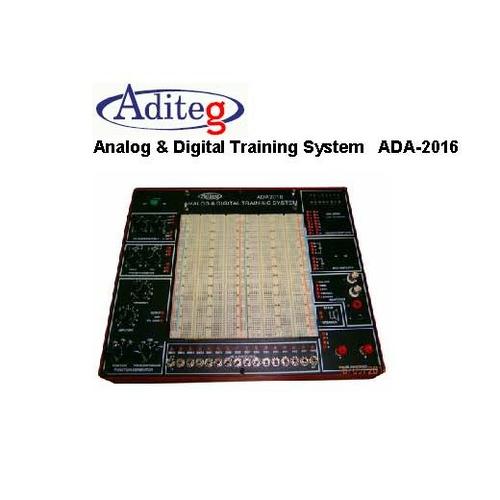

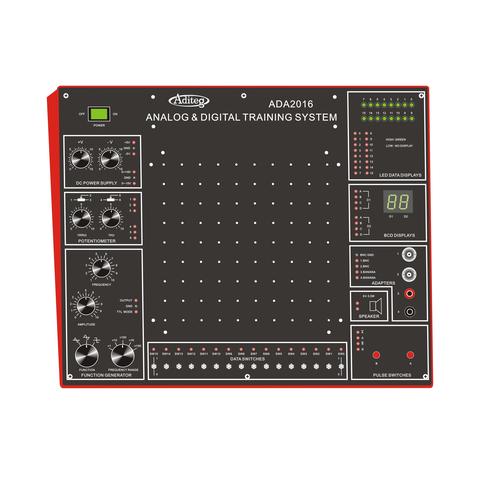

Aditeg ADA-2016 Analog & Digital Training System

Aditeg ADA‑2016 (juga disebut Analog and Digital Trainer ADA‑2016) adalah sebuah sistem pelatihan praktikum elektronik yang menggabungkan rangkaian analog dan digital dalam satu unit terintegrasi. Tujuannya adalah membantu mahasiswa atau pelajar Teknik Elektro dan Elektronika untuk melakukan berbagai eksperimen dasar secara mudah dan aman.

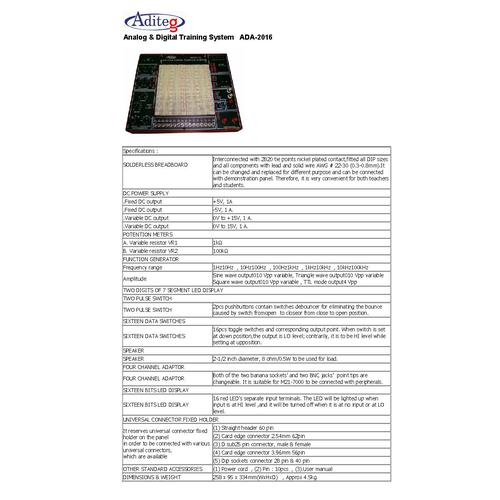

• SOLDERLESS BREADBOARD Interconnected with 2820 tie points nickel plated contact,fitted all DIP sizes and all components with lead and solid wire AWG # 22-30 (0.3-0.8mm).
• It can be changed and replaced for different purpose and can be connected with demonstration panel. Fixed DC output +5V, 1A Fixed DC output -5V, 1 A.
• Variable DC output 0V to +15V, 1 A.
• Variable DC output 0V to 15V, 1 A.
• POTENTION METERS A.
• Variable resistor VR1 1kΩ B.
• Variable resistor VR2 100kΩ FUNCTION GENERATOR Frequency range 1Hz10Hz , 10Hz100Hz , 100Hz1kHz , 1kHz10kHz , 10kHz100kHz Amplitude Sine wave output010 Vpp variable,
• Triangle wave output010 Vpp variable Square wave output010 Vpp variable , TTL mode output4 Vpp TWO DIGITS OF 7 SEGMENT LED DISPLAY TWO PULSE SWITCH 2pcs pushbuttons contain switches debouncer for eliminating the bounce caused by switch fromopen to closeor from close to open position.
• SIXTEEN DATA SWITCHES 16pcs toggle switches and corresponding output point.
• When switch is set at down position,the output is LO level; contrarily, it is to be HI level while setting at upposition.
• SPEAKER 2-1/2 inch diameter, 8 ohm/0.5W to be used for load.
• FOUR CHANNEL ADAPTOR Both of the two banana sockets #39; and two BNC jacks #39; point tips are changeable.
• It is suitable for M21-7000 to be connected with peripherals. SIXTEEN BITS LED DISPLAY 16 red LED #39;s separate input terminals.
• The LED will be lighted up when input is at HI level ,and it will be turned off when it is at no input or at LO level. UNIVERSAL CONNECTOR FIXED HOLDER It reserves universal connector fixed holder on the panel in order to be connected with various universal connectors. -Straight header 60 pin -Card edge connector 2.54mm 62pin -D sub25 pin connector, male amp; female -Card edge connector 3.96mm 56pin -Dip sockets connector 28 pin amp; 40 pin STANDARD ACCESSORIES *Power cord *Pin : 10pcs *User manual DIMENSIONS amp; WEIGHT 258 x 95 x 334mm(WxHxD) , Approx 5 Kg Made in China
