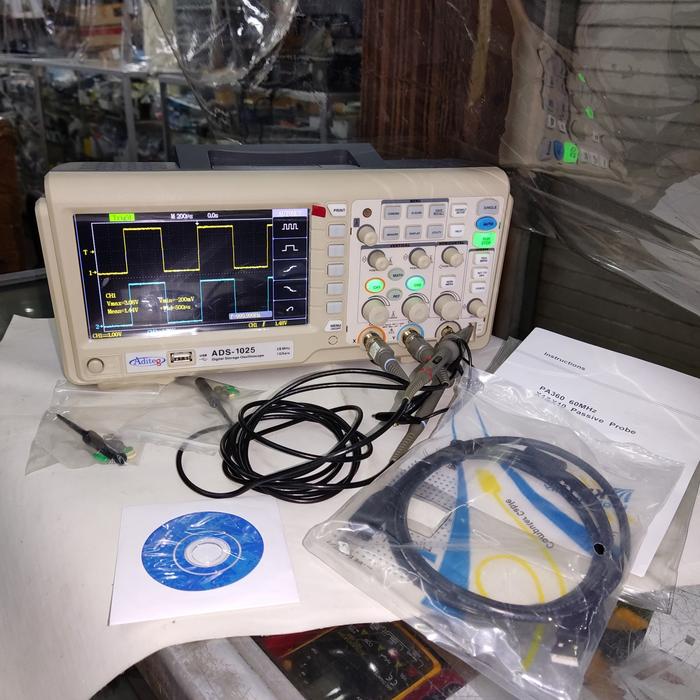

Aditeg ADS-1025 Digital Oscilloscope 25 MHz, 2 Channel

Aditeg ADS‑1025 adalah sebuah osiloskop digital dua saluran (2‑Channel) dengan spesifikasi bandwidth hingga 25 MHz. Penting untuk dikenali sebagai perangkat entry-level yang cukup handal untuk aplikasi pendidikan, hobi, atau kebutuhan elektronik dasar, dengan fitur-fitur yang cukup lengkap untuk umumnya pengukuran sinyal analog.

Spesifiaksi Aditeg ADS-1025

Bandwith : 25 MHz
Sampling mode : Real-time sampling , Sampling Rate : 1 GS/s
Display : Color , LCD 7 inch
Rise time : < 3.5 ns
Input Impedance : 1MΩ ll 13 Pf
Sec / div Range : 2.5ns/div-50S/div
Scan : 100ms-50s/div ( 1-2 , 5-5 sequence )
Channels : 2 Channel
Vertical Sensitivity : 2mV/div – 5V/div (1-2-5 step-by-step)
Vertical resolution : 8 bit
Timebase Accuracy : ± 100 ppm measured over 10 ms interval
Time window : 12 Divisons
Memory Depth : Single Channel : 2M ; Double Channel : 1M/CH
Channel voltage offset range 2 mv-200 mv : ± 1.6 V
206 Mv-10v : ± 40 V in Fixed Gain ranges & Variable Gain ranges
Input Coupling
AC, DC, GND
Max input Voltage
± 400 V ( DC + AC peak Value )
Support 2 Group referenced Waveform, 16 Group setups, 16 Group
captured Waveform internal Storage/Recall function and USB flash driver
storage function
Auto Set
Save / Recall
The auto setup function can realize automatic regulation of the vertical system, the
horizontal system and the trigger position.
Measure Display models
MAIN, WINDOW, WINDOW ZOOM, SCAN, X-Y
Trigger Types
Edge, Pulse Width, Video, Slope, Alternative
Auto Measure
Maximal valve, minimal value, peak-to-peak value, amplitude, top value,
bottom value, periodic average value, average value, periodic mean square
root, mean square root, rise extreme, descend extreme, rise time, descend
time, frequency, period, pulse width, positive pulse width, negative pulse
width, positive duty ratio, negative duty ratio, phase, FRR, FRF, FFR, FFF,
LRR, LRF, LFR, LFF

Averages
4, 16, 32, 64, 128, 256
Input voltage
100-240V AC, 45 Hz – 440 Hz , 50 VA Max
Size and weigth
305 mm x 133 mm x 154 mm / 4 Kg
Hardware Frequency Counter
Reading Resolution
6 bytes
Accuracy
± 0.01%
Range
DC Couple, 10 Hz to Max Bandwidth
Signal Type
Satisfying all Trigger signal (Except Pulse width trigger and Video Trigger)

Accessories Included :
* Probe Oscilloscope 2 pcs
* USB Cable + Software
* power cord
* User Manual
