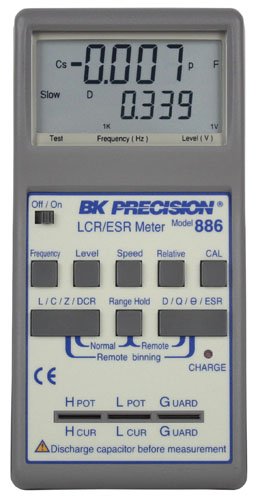

BK Precision 886 Synthesized LCR/ESR Meter

BK Precision 886 Synthesized LCR/ESR Meter is one of the first handheld meters of this type on the market, with a wide range of test frequencies up to 100 kHz for model 886 and many measurement parameters including Z, L, C, DCR, ESR, D, Q, and Ø as well. The 886 is designed for both component evaluation on the production line and fundamental impedance testing for bench-top applications.

With a built-in direct test fixture, you can test the lead components very easily. The optional 4-wire test clip can give a convenient connection to larger components and assemblies with the accuracy of 4-wire testing. The LCR meters offer fast, reliable, and versatile testing at low cost, making the 886 one of the most advanced handheld LCR meters available on the market today.

Features :

Measurement parameters: Z, L, C, DCR, ESR, D, Q, and Ø
Test conditions: 100Hz, 120Hz, 1kHz, 10kHz, 1Vrms, 0.25Vrms, 0.05Vrms
0.5% basic accuracy
Dual LCD display
SMD Surface Mount Tweezer Probe included
Very quick response, user friendly
Fully auto/manual selection
DC resistance measurement
Rechargeable battery/AC powered
Infrared RS-232 interface capability

Includes :

AA Rechargeable Batteries
SMD Probe
AC Adapter
Instruction Manual
