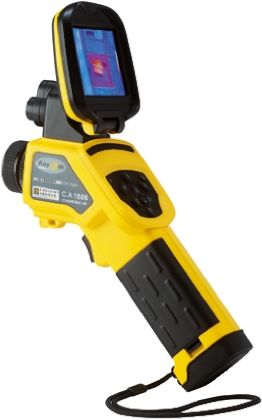

CHAUVIN ARNOUX CA 1886 Thermal Imaging Camera

CHAUVIN ARNOUX CA 1886 Thermal Imaging Camera high resolution infrared cameras provide thorough thermal analysis with comprehensive parameterization. They incorporate a large TFT screen for easier reading. Temperature sensitivity up to 600 °C and a temperature detection matrix resolution of up to 384 x 288 (C.A 1888). Complete IR-Merge functions (IR image in real image from 0 to 100 %).

Field of view: 20° x 15° (CA1886 740-6470) and 24° x 18° (CA1888 740-6474)
Matrix resolution: 160 x 120 (740-6470) and 384 x 288 (740-6474)
IR and real image merge, 0 to 100%
IP 54 leakproofing
Excellent legibility thanks to its multidirectional screen, even in places where access is difficult
Comfortable handling due to its pistol shape
Automatic detection and indication of hottest/coldest point
Parameter settings affecting measurement:
Adjustable emissivity
Adjustment of measurement distance
Parameters for defining relative humidity and ambient temperature
Parameterizable alarms
Isotherm function
Storage capacity of 1,000 radiometric images organized in 250 folders and back-up on mini-SD card (2GB max.)
