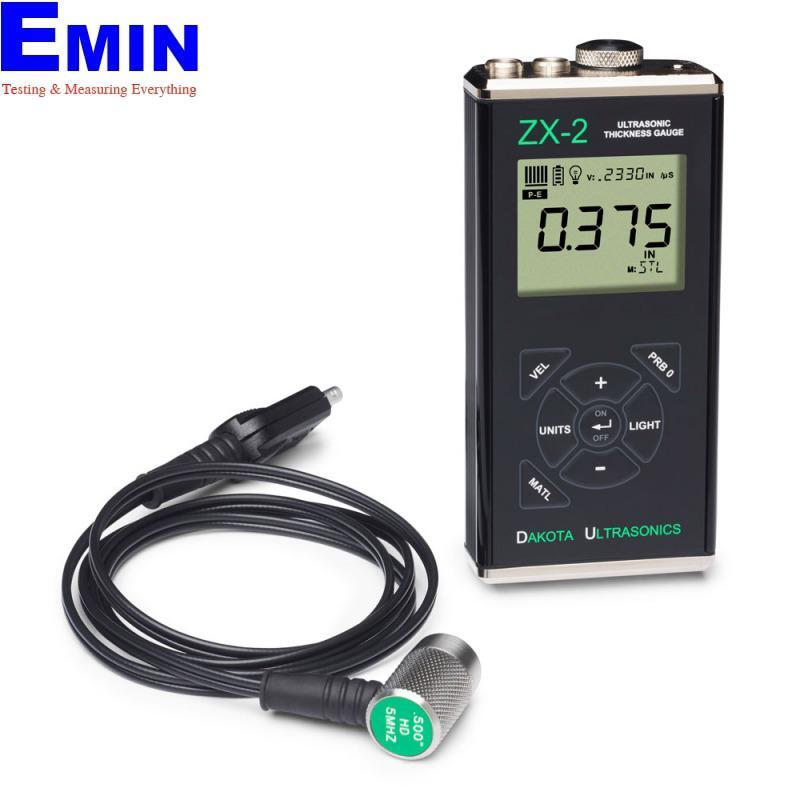

DAKOTA ZX2 Ultrasonic Thickness Gauge
Rp 38.500.000 *Inc. PPN
ZX-2 memungkinkan operator untuk memilih dari 8 bahan prasetel serta memprogram 2 kecepatan bahan khusus yang memungkinkan pengguna menyetel kalibrasi agar dioptimalkan untuk jenis bahan tertentu. Kecepatan yang diprogram dapat dikunci untuk mencegah penyesuaian yang tidak disengaja.
Related Products
ZX-2 memungkinkan operator untuk memilih dari 8 bahan prasetel serta memprogram 2 kecepatan bahan khusus yang memungkinkan pengguna menyetel kalibrasi agar dioptimalkan untuk jenis bahan tertentu. Kecepatan yang diprogram dapat dikunci untuk mencegah penyesuaian yang tidak disengaja.
Materi prasetel adalah sebagai berikut.
1. Baja 4340 .2330 n/μs / 5918 m/dtk
2. Tahan karat 303 .2230 / 5664
3. Aluminium 2024 .2510 / 6375
4. Besi Cor .1800 / 4572
5. Plexiglass .1060 / 2692
6. PVC .0940 / 2388
7. Polistirena .0920 / 2337
8. Poliuretan .0700 / 1778
9. Kustom
10. Kustom
Features
- Resolution of 0.001 inch (0.01 mm)
- The Transducer (probe) is waterproof and can be submerged in shallow water
- Special-purpose probes are offered for a variety of applications (1 to 10 MHz)
- Switch-selected units for inches or mm
- The extruded aluminum housing is impact-resistant and environmentally sealed (IP 65)
to provide trouble-free operation under the toughest field conditions - For underwater surveying, an optional 50 ft (15 meter) underwater probe/cable is available
- High visibility LCD Display is readable in all lighting conditions and temps as low as 22 °F (-30 °C)
- LCD shows Thickness Value, Velocity Setting, Stability Indicator, Battery Indicator and units
- Acoustic Velocity (calibration) is manually adjusted via the keypad
- 5 Year Warranty, CE-Certified and Made in USA
- Operates on two (2) AA Batteries – 45 hours continuous operation
- Selectable Backlight ON/OFF/AUTO
- Includes NIST Traceable Calibration Certificate
Measuring Limits
| Minimum Radius for Convex Surfaces | 0.350″ (8.89 mm) | |
| Minimum Radius for Concave Surfaces | 3″ (76.2 mm) | |
| Minimum Headroom | 1″ (25.0 mm) | |
| Minimum Sample Diameter | 0.150″ (3.8 mm) | |
| Minimum Substrate Thickness – F | NA | |
| Minimum Substrate Thickness – NFe | NA |
| Total Measuring Range (Steel) |
0.025 – 36.000 inches 0.63 – 914.4 mm (depends on material and transducer/probe type) |
| Measuring Range (Steel) |
0.040-8.000 inches 1.00-199.9 mm (with standard transducer T-102-2000) |
| Resolution | 0.001 inch (0.01 mm) |
| Measuring Mode | Pulse-Echo (P-E) |
| Velocity Range | 0.0120 to .7300 in/μs (305 to 18,542 m/sec) |
| Probe (Standard) | 1/4″, 5 MHz Dual Element Transducer, actual wearface is 5/8″ (17mm), p/n T-102-3300 |
| Probes (optional) | 1 to 10 MHz, 3/16″ up to 1 inch (custom probes available) |
| Probe Wearface | PEEK (Polyethylethylkytone) |
| Cable | 1.2m (4ft.) waterproof cable with non-polarized, quick-disconnect connectors |
| LCD Display | Multi-function 7 segment 4.5 digit liquid crystal display with 0.500″ digit height. Two 0.125 in14 segment fields for labels and values, and one 7 segment field for labels and values. Additional icons to indicate features and modes |
| Display Backlight | Backlight is selectable on/off/auto, and selectable brightness (Lo, Med, Hi) options |
| Display Update Rate | 10 Hz (10 updates/sec) |
| Temp. Limits | Ambient: -30 to 75° C (-22 to 167° F) Material: -20 to 100° C (0 to 200° F) High temperature probes available |
| Battery Type | 2x AA batteries (rechargeable batteries can be used) |
| Battery Life | 45 hours continuous use |
| Weight | 308 grams (11 ounces) |
| Dimensions | 63.5 x 131.3 x 31.5 mm (2.5″ x 5.17″ x 1.25″) |
| Accessories | Probe/cable assembly, 4 oz. bottle of coupling fluid, NIST Calibration Certificate, 2 AA batteries, operating instructions, hard-plastic carrying case. |
| Housing | Extruded aluminum body with nickel-plated aluminum end caps (gasket sealed) |
| Housing Rating | IP65 |
| Certifications | NIST Traceable and MIL-STD-45662A |
| Keypad | Sealed membrane that is resistant to both water and petroleum products Seven or eight tactile-feedback keys |
| Pulse Repetition Frequency (PRF) | 200 Hz (200 pulses/sec) |
| Warranty | Gauge: 5 Years Probes: 90 Days |
