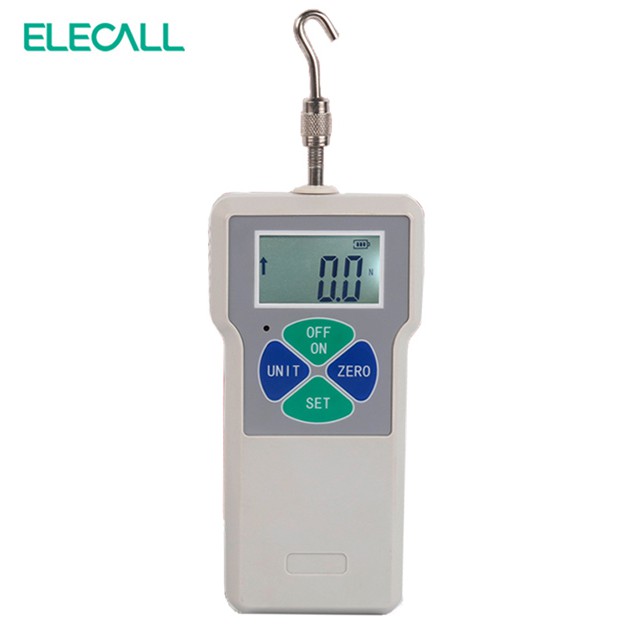

Elecall ELK10 Digital Force Gauge
Rp 3.000.000 *Inc. PPN
1. Digital display for easy reading
2. Light weight, portable, easy to carry
3. Unit display:Lb, Kg, N
4. The battery has over-load protection in case of short circuit and electricity leak.
5. Battery low indicator
6. Auto shut off with no operation in 10 minutes
Related Products
Alat Ukur Kekuatan Tarik Tekan (Push Pull force) dari Elecall
Kapasitas Maksimal 1kg. Resolusi 0.001kg
Features:
1. Digital display for easy reading
2. Light weight, portable, easy to carry
3. Unit display:Lb, Kg, N
4. The battery has over-load protection in case of short circuit and electricity leak.
5. Battery low indicator
6. Auto shut off with no operation in 10 minutes
Screen display
1. Peak mode: After turn on, enter into the measuring interface, click “SET” button to enter into the peak mode directly, record the Max force value during measuring.
2. PUSH & PULL force display: top arrow shows the Pull force, bottom arrow shows the Push force
3. Measuring force value display.
4. Three units: N(newton), kg(kilogram), lb(pound) display respectively. Press “UNIT” button to switch
5. Power displayOFF/ON : start up, shut down key
2. PUSH & PULL force display: top arrow shows the Pull force, bottom arrow shows the Push force
3. Measuring force value display.
4. Three units: N(newton), kg(kilogram), lb(pound) display respectively. Press “UNIT” button to switch
5. Power displayOFF/ON : start up, shut down key
ZERO: to zeroing the display
UNIT: To switch three different unit measurements
ELK Series Spec:
|
Mode |
ELK-2 |
ELK-3 |
ELK-5 |
ELK-10 |
ELK-20 |
ELK-30 |
ELK-50 |
ELK-100 |
ELK-200 |
ELK-300 |
ELK-500 |
|
The Max Load Value |
2N |
3N |
5N |
10N |
20N |
30N |
50N |
100N |
200N |
300N |
500N |
|
0.2kg |
0.3kg |
0.5kg |
1kg |
2kg |
3kg |
5kg |
10kg |
20kg |
30kg |
50kg |
|
|
0.45Lb |
0.65Lb |
1.1Lb |
2.2Lb |
4.5Lb |
6.5Lb |
11Lb |
22Lb |
45Lb |
65Lb |
110Lb |
|
|
Load Value Resolution |
0.001N |
0.01N |
0.1N |
||||||||
|
0.001KG |
0.001KG |
0.01KG |
|||||||||
|
0.001Lb |
0.001Lb |
0.01Lb |
|||||||||
|
The sensor |
Built-in Sensor |
||||||||||
