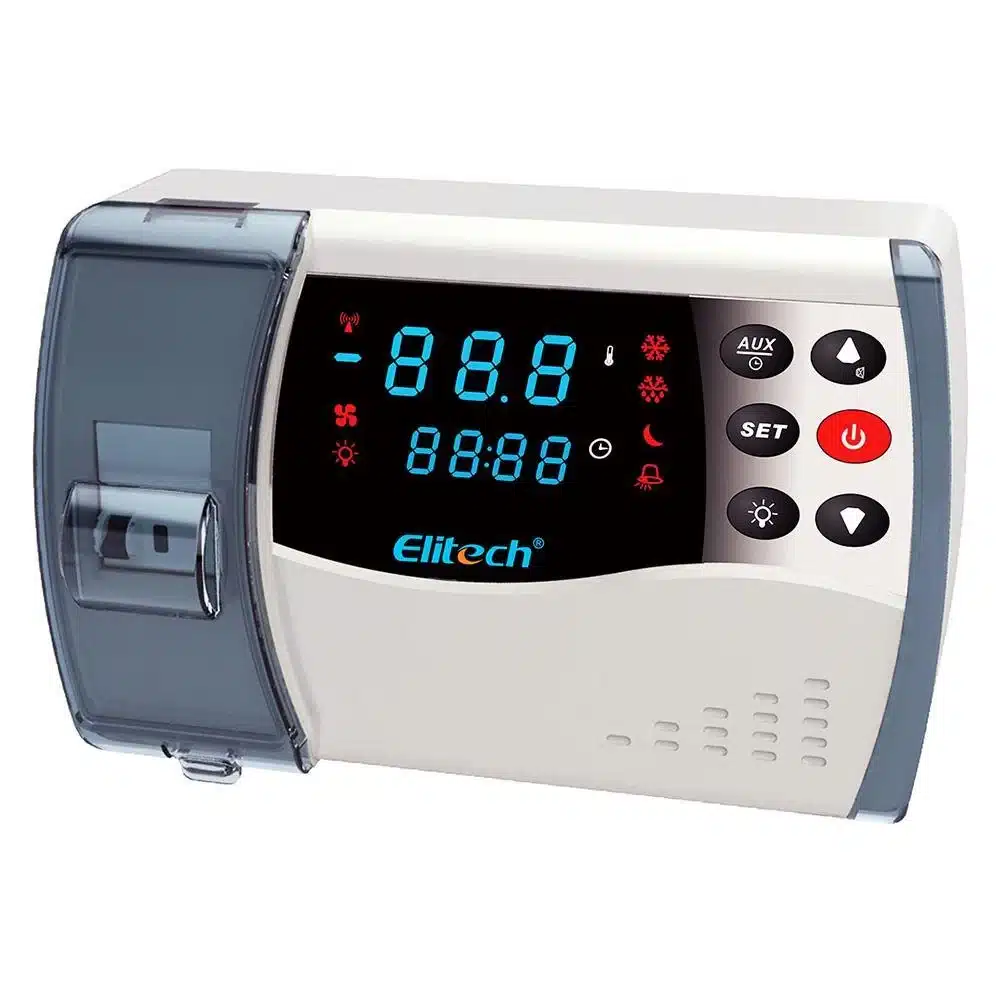

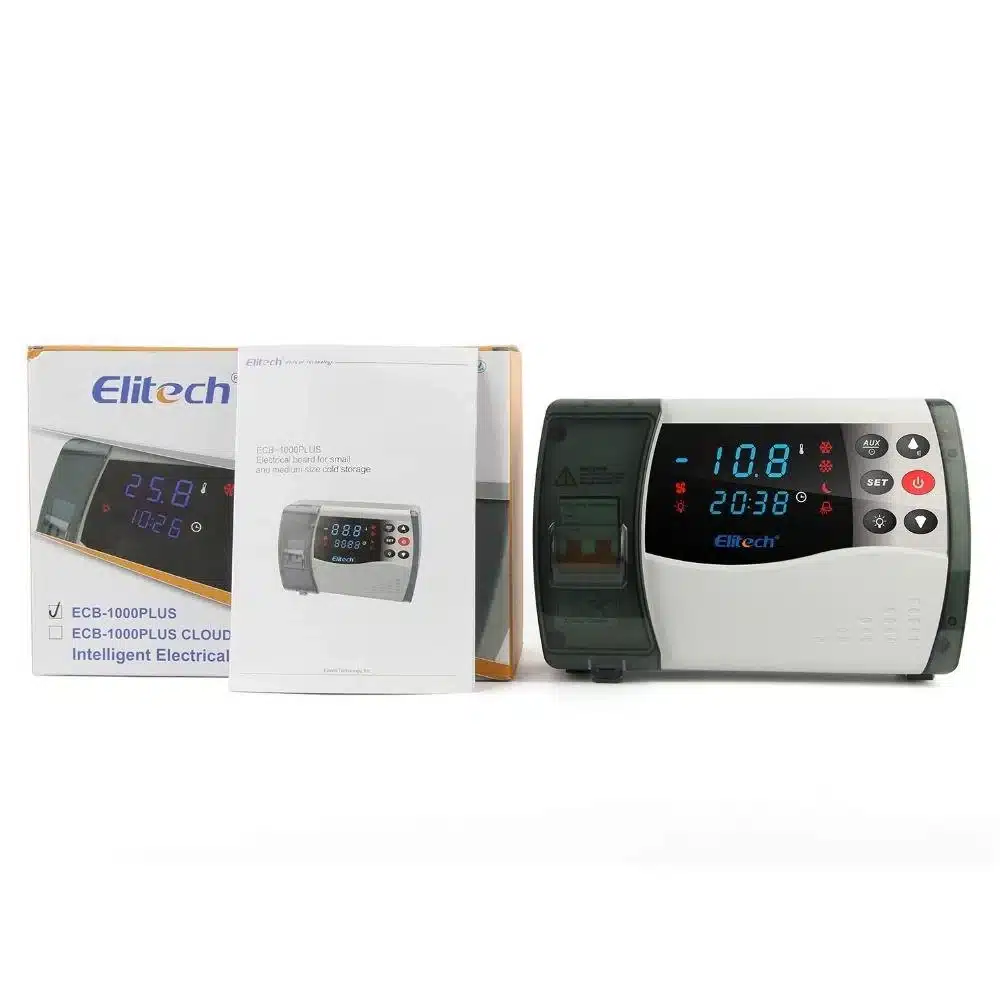

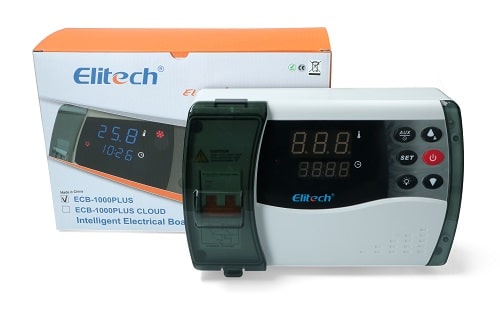

Elitech ECB-1000PLUS Wireless Digital Temperature Control 100-250V

Perangkat ini ideal untuk peralatan refrigerasi 3HP dan kurang dari 3HP pada sistem pendingin komersial dan industri, hotel, freezer rumah tangga, kulkas, ruang bawah tanah, dll. Perangkat ini memiliki fungsi lampu, alarm, defrost, kipas, dan kontrol lainnya. Dilengkapi antarmuka serial RS-485, perangkat ini dapat dihubungkan melalui komunikasi MODBUS-RTU. ECB-1000PLUS dapat dioperasikan dengan Elitech Cloud dan Aplikasi. Komunikasi Wi-Fi tersedia.

Specifications

·         Power supply: 100~250VAC,50/60Hz
·         Overall power consumption: 12W
·         Temperature control range: -40K~99K(K:°C/°F)
·         Temperature measuring range: -49K~119K(K:°C/°F)
·         Accuracy: ±1°C/±2F(-20°C~50°C)；±1.5°C/±3°F(other)
·         Temperature resolution:0.1°C/1°C or 1°F
·         Sensor type: NTC(10KΩ/25°C, B value = 3435K)
·         Sensor cable length: 2m
·         Storage temperature: -20°C~75°C
·         Operating ambient temperature: -10°C~65°C
·         Dimensions: 265x 167.5 X 92 mm
·         Protection grade: IP65

User Manual: Download

【Easy to Use】The large LCD screen with multi indicator symbol, simple 6-button, RS-485 Modbus-RTU communication, making it easier to be used.

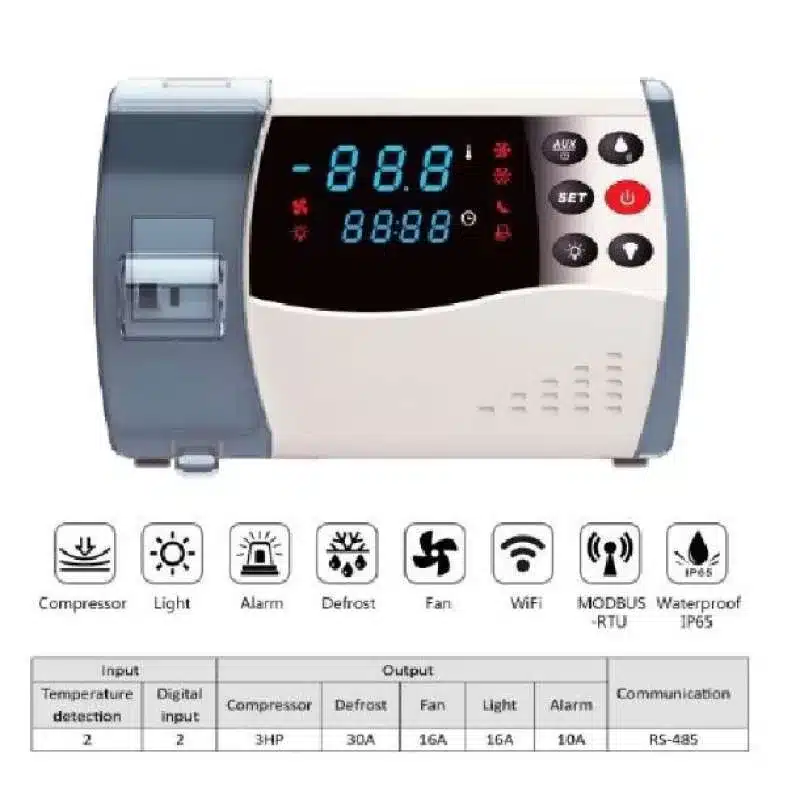

【Multi Function】2 way sensor probe(temperature and defrosting), 2 way digital input, 5 way outputs, strong load capacity, which support door switch light control, external alarm, and man in cold room.etc.
【Wide Temperature Range】It measures from -49K~119K and starts cooling or heating according to the configured parameter, which will allow it to keep the desired temperature anytime.
【Monitoring via App】Cloud platform and App can be connected via WiFi to achieve remote parameter setting and monitoring.
【Safe & Reliable】Protection rating IP65, flame retardant rating UL94 -V0. 24/7 US Technician Support via Email and Phone.
