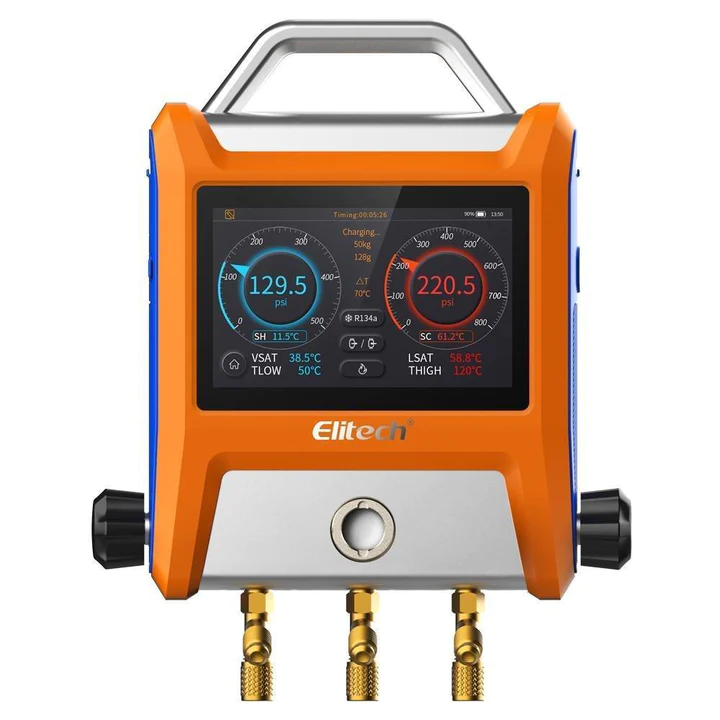

Elitech EMG-20V Intelligent 2 Valves Digital Manifold

Pengukur Manifold Cerdas Elitech EMG-20V mengintegrasikan fungsi uji suhu ganda, uji tekanan ganda, pengukuran penahan tekanan, pengukuran vakum, pemanasan super, dan perhitungan sub-pendinginan, pengukuran berat zat pendingin, dan pencatatan data. Semua fungsi ini dapat dikontrol pada layar sentuh 5 inci yang besar atau melalui aplikasi seluler dari jarak jauh, memberikan kenyamanan maksimal bagi teknisi HVACR atau AC otomatis.

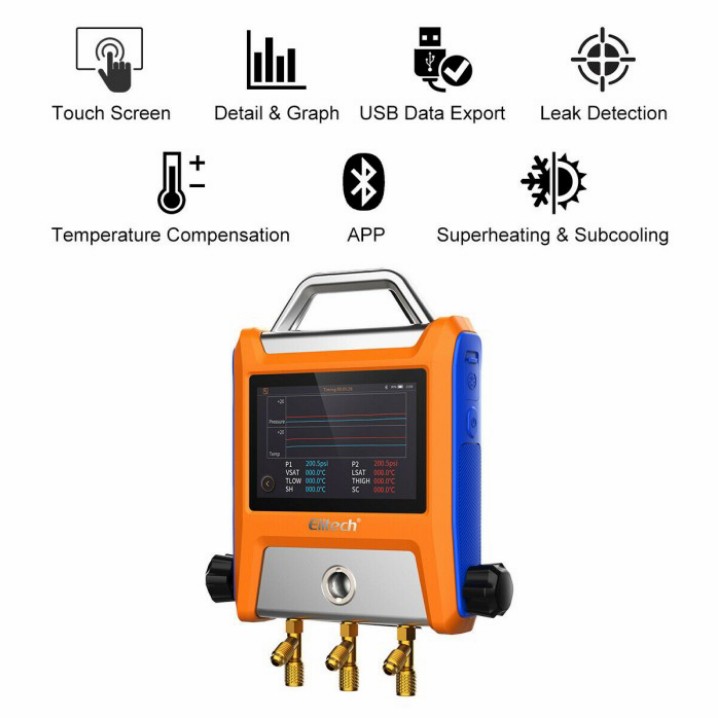

Product Feature

Pressure and temperature measurement

• 88 kinds of refrigerants’ databases are built-in
• Viewing saturation temperature
• Automatic calculation of super-heating / sub-cooling
• Switching between refrigeration and heating mode

Vacuum measurement

• Vacuum monitoring
• Vacuum leakage test
• Estimate the remaining time of vacuum

Pressure Holding Test

• Pressure maintaining leakage test
• Dial curve mode switching

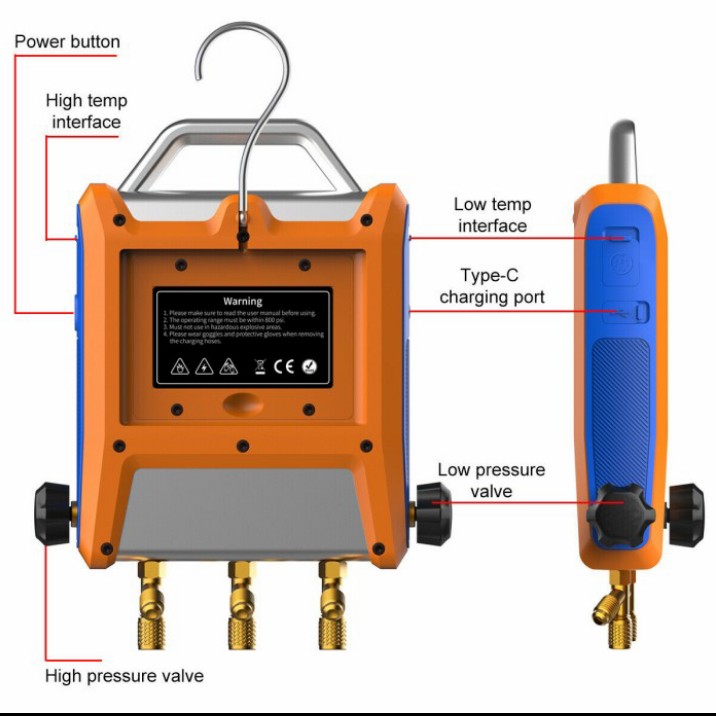

Manifold Valve

• Filling/recycling switch
• Vacuum switch
• High and low-pressure valve switch

Product Specifications

Pressure (High-Pressure Port and Low-Pressure Port )

• Measuring Range: -14.5~800psi/-1.0~56.2kg/cm2/-1.0~55.2bar/-0.1~5.5MPa
• Accuracy:  0.5%FS
• Resolution: 0.1psi/0.1kg/cm2/0.1bar/0.01MPa
• Pressure unit: psi, inHg, kg/cm2, cmHg, bar, kPa, MPa
• Data Sampling Frequency: 0.5S
• Overload: 1000psi/70kg/cm2/69bar/6.8MPa

Temperature Clamp (High-Pressure Port and Low-Pressure Port )

• Temperature Range: -40℉-300℉/ -40℃-150℃
• Accuracy: ±0.1℃/±0.18℉
• Resolution: 0.1℉/℃
• Temperature Unit: ℉, ℃

Vacuum

• Range: 0-19000 microns
• Accuracy: 0-10000microns, ±10% of Reading / ±10 microns; 10000-19000microns, ±20% of Reading
• Vacuum Unit： inHg, Torr, psia, mbar, mTorr, Pa, micron, kPa
• Resolution: 0-400, 1 microns; 400-3000, 10 microns; 3000-10000, 100 microns; 10000-19000, 250 microns;
• Interface: 1/4SAE and 1/4SAET
• Sensor interface: PS/2*2 ( left interface is temperature & vacuum probe multiplexing)
• USB Interface: Type-C*1 (for data export and charging)
• Dimensions: 254*215*46mm
• Weight: 3.5lb/1.5kg
• Working temperature: -20~60℃/-4~140℉
• Storage temperature: -40~80℃/-40~176℉

88 Refrigerants

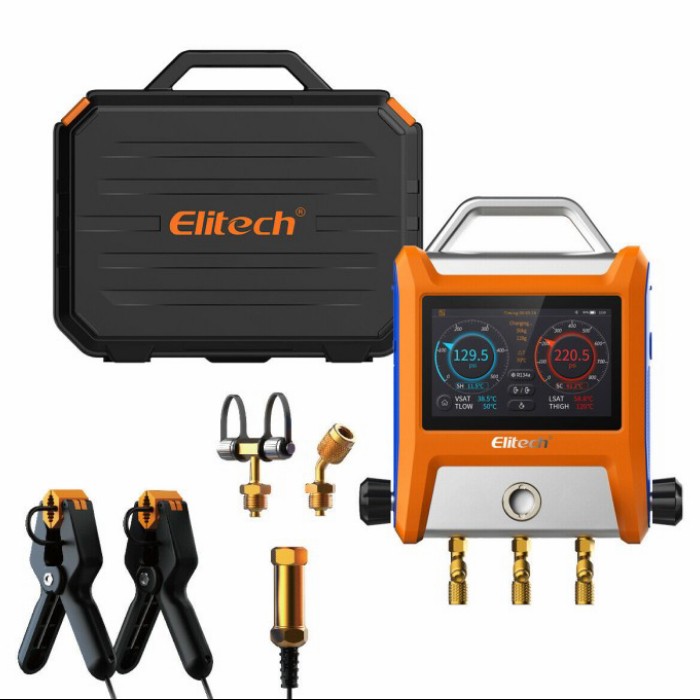

What’s Included

• 1 x Vacuum transmitter (T-joint)
• 2 x Temperature clamp
• 1 x Bent joint
• 3 x Refrigerant hose
• 1 x Universal power adapter
• 1 x USB-C cable
• 1 x User Manual
• 1 x Carrying case
