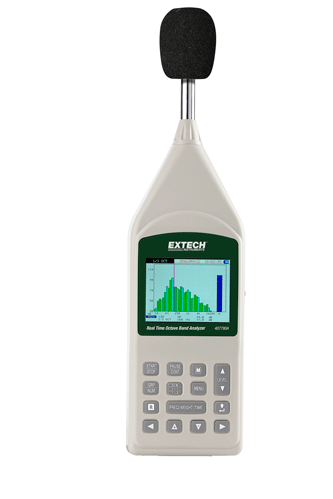

EXTECH 407790A Real-Time Octave Band Analyzer

EXTECH 407790A Real-Time Octave Band Analyzer is a type 2 integrating sound level meter with Octave and 1/3 Octave Band real time display. The 407790A offers five measurement parameters: SPL (Sound Pressure Level), Leq (Equivalent Continuous Sound Pressure Level), SEL (Sound Exposure Level), Lmax (Maximum Sound Pressure Level), and Lmin (Minimum Sound Pressure Level).

Extech 407790A Octave Band Analyzer has a range from 30 to 130dB with a standard accuracy of ±1.5dB (ref 94dB @ 1kHz). The 407790A features 1/1 and 1/3 Octave Band real‐time noise analyses. The built‐in memory stores 12,280 data records in sound level mode and 1024 records in Octave mode.

The stored data can be easily transferred to a PC with the 407790A software and USB cable. This meter permits choice of ‘A’, ‘C’, or Flat ‘Z’ weighting and Slow / Fast /impulse response times. AC and DC analog output signals are available for chart recorders and other external recording devices.

Features :

Range from 30 to 130dB
Accurate to ±1.5dB (ref 94dB @ 1kHz)
Can perform 1/1 and 1/3 octave band analysis simultaneously
1/1 octave band analysis from 31.5Hz to 8kHz
1/3 octave band analysis from 25Hz to 10kHZ
160 x160 dot matrix backlit LCD displays Leq, LE, Lmax, Lmin, Lp, L05, L10, L50, L90, L95
Datalogging function stores over 12,000 readings
A, C and Z weighting with Fast or Slow response
Meets ANSI and IEC Type 2 standards
Internal self-test when powered ON
Detachable 0.52″ (13.2mm) diameter condenser microphone and Tripod mount provided on rear
Analog AC/DC recorder output
Transferred data to a PC to be analyzed using software and cable provided

What’s in the Box :

Windows® compatible software
USB cable
4 x C batteries
Microphone wind screen
Mini screwdriver
120V AC adapter
Case
