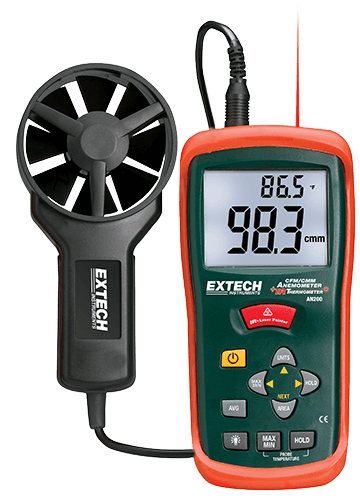

EXTECH AN200 Anemometer with IR Thermometer

EXTECH AN200 Anemometer with IR Thermometer CFM/CMM Thermo-Anemometer measures airflow, air velocity, ambient temperature and has a built-in IR thermometer for measuring surface temperature.

Extech AN200 Air Flow Meter is perfect for recording wind and temperature measurements in plant applications, fume hood testing, environmental analysis and HVAC applications.

Features :

CFM/CMM Thermo-Anemometer with built-in non-contact IR Thermometer Measures Remote Surface Temperatures to 500°F (260°C) with 8:1 Distance to Spot Ratio and Laser Pointerr
Simultaneous Display of Ambient Temperature and Air Flow or Air Velocity
Up to 8 Easy to Set Area Dimensions are Stored in the Meter’s Internal Memory of Each Unit
20 Point Average Function for Air Flow
Super Large LCD Backlit Display
3% Velocity Accuracy via Low Friction 2.83″D (72mm) Ball Bearing Vane Wheel
Data Hold and MIN/MAX
Auto Power Off

Applications :

HVAC Installation, Repair, Diagnostics and Optimization
Fume Hood Testing, Installation and Verification
Ventilation System Installation, Servicing and Analysis
Environmental Wind and Temperature Testing/Analysis
Boiler Rooms
Ionizer Flow Output Monitoring
Automobile Aerodynamic Testing
Plant/Facilities Maintenance

Specifications :

Air velocity m/s range: 0.40 to 30.00 m/s
Air velocity m/s resolution: 0.01 m/s
Air velocity m/s basic accuracy: ±3% m/s
Air velocity km/h range: 1.4 to 108.0 km/h
Air velocity km/h resolution: 0.1 km/h
Air velocity km/h basic accuracy: ±3% km/h
Air velocity ft/min range: 80 to 5906 ft/min
Air velocity ft/min resolution: 1 ft/min
Air velocity ft/min basic accuracy: ±3% ft/min
Air velocity mph range: 0.9 to 67.2 mph
Air velocity mph resolution: 0.1 mph
Air velocity mph basic accuracy: ±3% mph
Air velocity knots range: 0.8 to 58.3 knots
Air velocity knots resolution: 0.1 knots
Air velocity knots basic accuracy: ±3% knots
Air temperature range: 14 to 140˚F (-10 to 60˚C)
Air temperature resolution: 0.1˚F/˚C
Air temperature basic accuracy: ±6.0˚F (3˚C)
InfraRed temperature range: -58 to -4˚F (-50 to -20˚C), -4 to 500˚F (-20 to 260˚C)
InfraRed temperature resolution: 0.1˚F/˚C, 1˚F/˚C
InfraRed temperature basic accuracy: ±9.0˚F (5.0˚C), ±2% reading or±2˚F (˚C)whichever is greater
Airflow  range: 0 to 999,999 CMM (m3/min), 0 to 999,999 CFM (ft3/min)
Airflow resolution: 0.1
Dimensions: 7 x 2.9 x 1.3″ (178 x 74 x 33mm)
Weight: 1.6lbs (700g)

Includes :

Thermo-anemometer
Vane sensor on 3.9ft (120cm) cable
9 V battery
Protective rubber holster
Case
