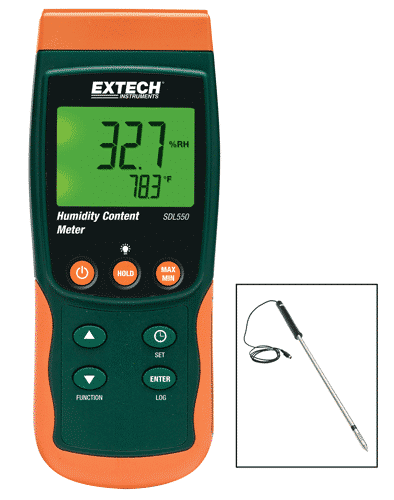

EXTECH SDL550 Moisture Content Meter Datalogger

EXTECH SDL550 Moisture Content Meter Datalogger is used to accurately gauge the amount of humidity present in agricultural and food products and is suitable for use in humidity monitoring of grain, corn, rice, cotton paper and various other types of material. Also capable of measuring air temperature, dew point and temperature, the Extech SDL550 can also be used to monitor the environment around where a material might be stored, ensuring that excess moisture isn’t present within the air that could have an effect upon a material.

SDL550 is also handheld, portable and features a large backlit LCD display which showcases both temperature measurements and humidity content measurements at the same time. The instrument’s internal configuration uses a PC interface, allowing data to be stored in Excel format for easy transfer to PC. The measurement range of this product when calculating humidity ranges from 10 to 95% with resolution of 0.1% and accuracy of 3% of reading. It is able to measure temperature between a range of 32 to 122°F.

Features :

23.7″ (600mm) Heavy Duty Stainless Steel Probe with Replaceable Probe Head with inner filter
Measures humidity content, air temperature, dew point and temperature
Humidity content measurement from 10 to 95%
Datalogger date/time stamps and stores readings on an SD card in Excel® format for easy transfer to a PC
Adjustable data sampling rate: 1 to 3600 seconds
Stores 99 readings manually and 20M readings via 2G SD card
Type K/J Thermocouple input for high temperature measurements
Large backlit dual LCD display simultaneously displays Moisture Content and Temperature
Record/Recall MIN, MAX, Data Hold, Auto Power Off
Built-in PC interface

Specifications :

Humidity Content: Range:  10 to 95%; Resolution:  0.1%; Accuracy: 3% of reading. Air Temperature: Range:  32 to 122°F (0 to 50°C); Resolution: 0.1°; Accuracy:  1.8°F/1°C. Dew Point: Range: -13 to 120°F (-25 to 50°C); Resolution:  0.1°; Accuracy:  Calculated. Type K Temperature: Range:  -148 to 2372°F (-100 to 1300°C) 0.1°; Resolution:  (0.2% + 1.8°F/1°C).  Type J Temperature: Range:  -148 to 2192°F (-100 to 1200°C) 0.1°; Resolution:   (0.2% + 1.8°F/1°C). Memory:  20M data records using 2G SD card. Dimensions:  Meter: 7.2 x 2.9 x 1.9″ (182 x 73 x 47.5mm); Probe: 23.8” (605mm) x 0.9” (22mm) dia. Weight:  Meter: 8.6oz (245g); Probe: 19.8oz (560g).

Includes :

Extech SDL550 Humidity Content Meter/Datalogger
Moisture Content Probe with 4.9ft (1.5m) Cable
Sensor Cap
SD Card
9V Battery
Soft Carrying Case
