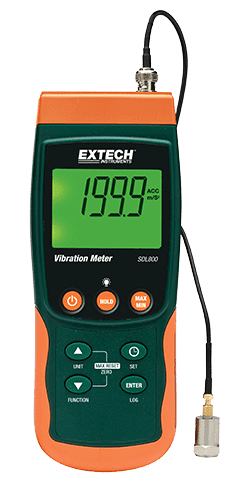

EXTECH SDL800 Portable Vibration Meter Data Logger
Login lihat harga
- cceleration: 656ft/ s2, 200m/ s2, 20.39g
- Velocity: 7.87in/ s, 200mm/ s, 19.99cm/ s
- Displacement: 0.078in, 2mm ( peak-to-peak)
- Resolution: 1ft/ s2, 0.1m/ s2, 0.01g; 0.01in/ s, 0.1mm/ s, 0.01cm/ s, 0.001in, 0.001mm
- Basic accuracy: ± ( 5% + 2 digits)
- Memory: 20, 000K data records using 2G SD card
Related Products
EXTECH SDL800 Portable Vibration Meter Data Logger
Description :
Remote vibration sensor with magnetic adapter on 47.2 ” ( 1.2m) cable
Wide frequency range of 10Hz to 1kHz
Basic accuracy of ± ( 5% + 2 digits) ; Meets ISO2954
RMS, Peak Value or Max Hold measurement modes
Adjustable data sampling rate: 1 to 3600 seconds
Datalogger date/ time stamps and stores readings on an SD card in Excel ® format for easy transfer to a PC
Offset adjustment used for zero function to make relative measurements
Large backlit LCD
Stores 99 readings manually and 20M readings via 2G SD card
Record/ Recall MIN, MAX readings
Data Hold plus Auto power off with disable function
Built-in PC interface
Specifications :
Acceleration: 656ft/ s2, 200m/ s2, 20.39g
Velocity: 7.87in/ s, 200mm/ s, 19.99cm/ s
Displacement: 0.078in, 2mm ( peak-to-peak)
Resolution: 1ft/ s2, 0.1m/ s2, 0.01g; 0.01in/ s, 0.1mm/ s, 0.01cm/ s, 0.001in, 0.001mm
Basic accuracy: ± ( 5% + 2 digits)
Memory: 20, 000K data records using 2G SD card
Dimensions: 7.2 x 2.9 x 1.9 ” ( 182 x 73 x 47.5mm)
Weight: 21.1oz ( 599g)
Includes :
Remote sensor
Magnetic mount
6 x AA batteries
SD card
Hard carrying case
EXTECH SDL800 Portable Vibration Meter Data Logger Dengan Harga murah dan cari produk terbaik lainnya dari kategori dari Vibration Meter Merek Extech Gratis biaya pengiriman untuk wilayah Jakarta dan dapat dikirim ke seluruh Indonesia. Dapatkan hanya di toko online Kucari.com, belanja online alat ukur dan alat survey mudah dan aman.
Kucari.com menyediakan berbagai alat ukur dan instruments dari supplier dan distributor resmi yang tersebar dibeberapa kota di Indonesia seperti Jakarta, Bandung, Bekasi, Depok, Cikarang, Tangerang, Lampung, Pontianak, Jogja, Semarang, Solo, Batam, Padang, Pekanbaru, Malang, Surabaya, Medan, Makassar, Balikpapan, Samarinda, Pelembang, Riau, Aceh, Manado, dan Bali.
Specification: EXTECH SDL800 Portable Vibration Meter Data Logger
| Weight | 2 kg |
|---|
