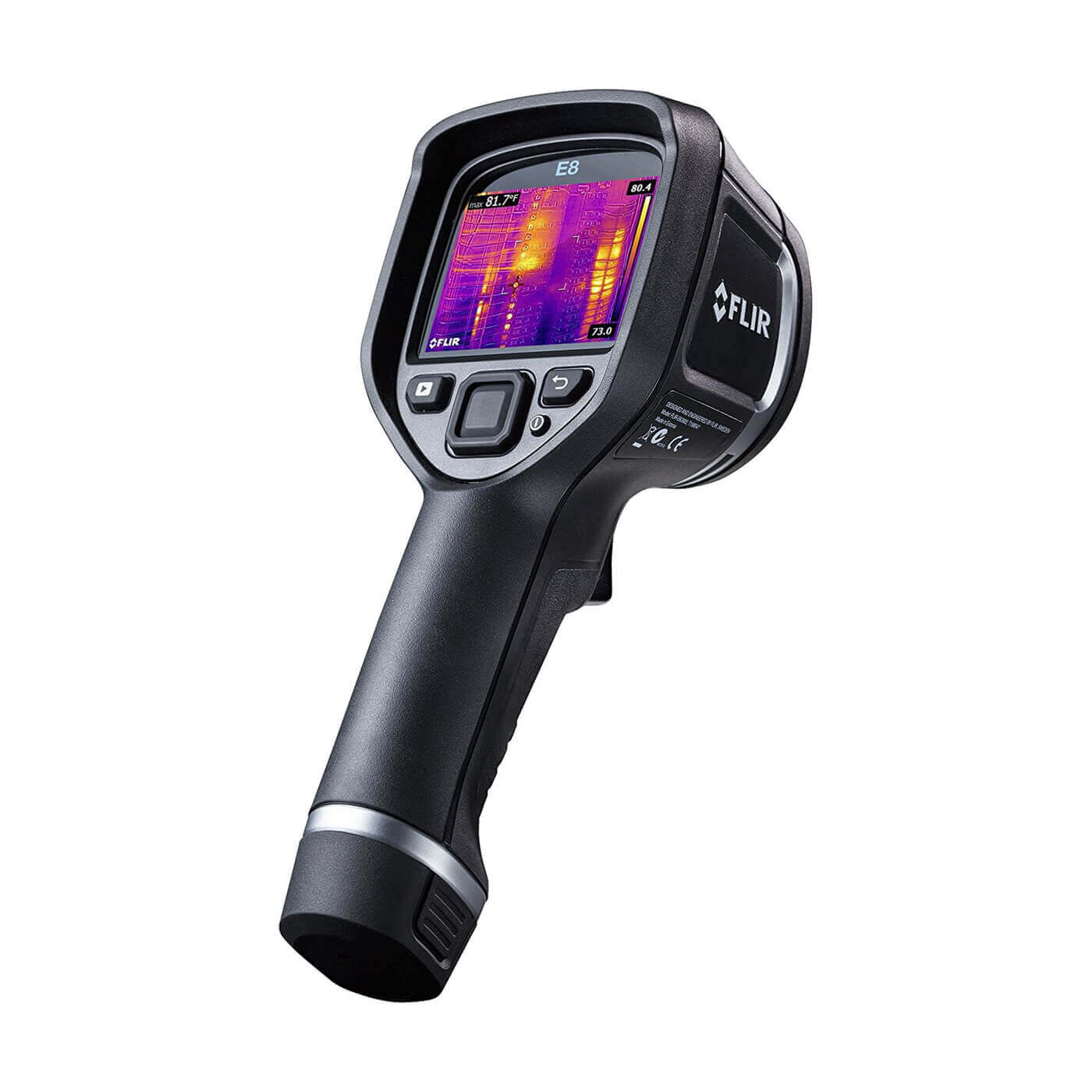

FLIR E8 Compact Infrared Thermal Imaging Camera

FLIR E8 Compact Infrared Thermal Imaging Camera is a sophisticated point-and-shoot infrared camera that combines the best performance and value in compact thermal imaging cameras. Designed to fit beautifully into your IR inspection program, budget, and the palm of your hand, the Flir E8 quickly pays for itself by identifying electrical, mechanical, or building envelope issues before a failure occurs or an expensive tear-down is required.

Flir E8 is easy to use out of the box and offers a temperature range of -4 to 482°F (-20 to 250°C) with an accuracy of ±2% and a thermal sensitivity of < 0.06°C. With it’s economic pricing and it’s dramatic MSX thermal images, that clearly reveal problems from sources of energy loss, moisture intrusion and structural issues to overheating electrical and mechanical equipment, the Flir E8 is an overall versatile Thermal Imager.

Flir E8 offers an incredible 320×240 detector with 76,800 pixels of thermal image clarity, the Flir E8 camera offers a resolution to fit the target size, working distance, and detail required for various applications and situtations as well as your budget. The Flir E8 on up feature an on-screen center spotmeter for measuring temperature, an area box tool with an automatic hot or cold spot that hunts down temperature extremes, and provides a blue-below and red-above color alarm to quickly alert you to heat issues. With the Flir E8, the user can view thermal, visual, and MSX images and store them simultaneously for further analysis using FLIR Tools software. Additionally, the Flir E8 offers Picture-in-Picture that inserts the thermal image over the visible photo as an extra documentation option.

A focus-free lens and simple button navigation to on-screen settings, imaging modes, measurement tools, and saved JPEGS make all four of these cameras amazingly easy to operate, even with just the press of a single gloved thumb.

Thanks to it’s built in Quick-release feature, the Flir E8’s tool-type Li-ion battery is easy to remove, recharge and snap back in. Additionally, the Flir E8 can recharge itself either with the Charge in-camera or with the optional charging station to keep you up and running all day.

Features :

Display: 3″ color LCD
On-board 640 x 480 Digital Camera
Easy-to-use, weighs only 1.2lbs
2% accuracy
File format: Radiometric jpg
Swappable Li-ion Battery with 4 hour life
Spot Measurement mode
Picture in Picture Image
Area Box Measurement Mode
Variable emissivity and reflected temperature parameters for detection accuracy

Specification
IR Pixel Resolution    76,800 (320 x 240)
Thermal Sensitivity    <0.06°C
Frame Rate    9Hz
Field of View    45° x 34°
Focus    Focus free
Detector    Uncooled Microbolometer
Screen    3.0 inch Screen
320 × 240 color LCD

Analysis Specifications
Image Modes    IR image, visual image, MSX, picture-in-picture, thumbnail gallery
Multi Spectral Dynamic Imaging (MSX)    IR image with enhanced detail presentation
Picture-in-Picture    IR area on visual image
Temperature Range    -4 to 482°F (-20 to 250°C)
Accuracy    ±2% or 2°C
Measurement Modes    3 modes: 1 Spot (center); 1 Area Box (Min/Max); Isotherm (above/below)
Alarm    Blue below or red above set temperature
Emissivity Correction    Variable from 0.1 to 1.0
Auto Hot/Cold Detection    Auto min/max markers within area

Set-Up Specifications
Color Palettes    Iron, Rainbow, and Gray
Set-up Commands    Local adaptation of units, language, date and time formats
Image Storage Specifications
Storage Capacity    Internal memory store at least 500 sets of images
Storage Mode    Simultaneous storage of images in IR, visual and MSX
File Formats    Standard JPEG, 14-bit measurement data included

General Specifications
Battery Type    Swappable Li-ion Battery
Battery Life    4 Hours Per Charge
Drop    2 meter / 6.6 ft
Weight    1.27 lbs (0.575 kg)

Complette Package:
Power supply/charger with four plugs
Hard case
Rechargeable battery
FLIR Tools software
USB cable
Extra battery
External Charger
