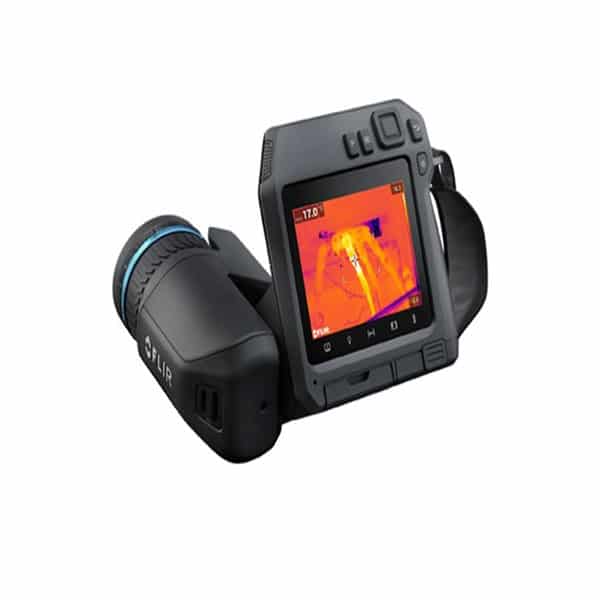

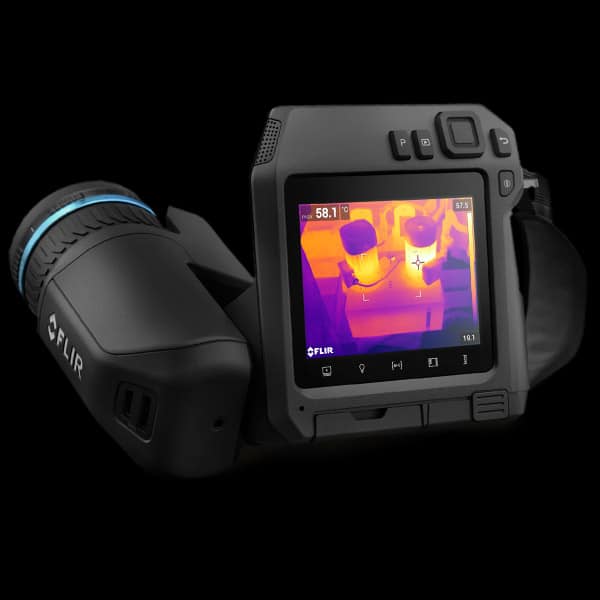

Flir T530 Thermal Imaging Camera
Rp 396.750.000 *Inc. PPN
- Color Alarm (Isotherm) •Above •Below •Interval •Condensation (moisture/humidity/dewpoint) •Insulation
- Difference Temperature : Yes
- Display : 4″, 640 x 480 pixel touchscreen LCD with auto-rotation
- Display Technology : IPS
- Housing material : PCABS with TPE, magnesium
- Laser Alignment : Position is automatically displayed on the infrared image
- Laser Pointer : Class 2, 0.05–40 m (0.16–131 ft.) ±1% of measured distance
- Packaging Size : 500 x 190 x 370 mm (19.7 x 7.5 x 14.6 in.)
Related Products
FLIR T530 memiliki fitur yang dibutuhkan para profesional untuk memecahkan masalah hot spot dan potensi kesalahan secara akurat. Dengan platform lensa berputar 180° dan LCD 4″ yang terang, FLIR T530 dirancang untuk membantu pengguna mendiagnosis komponen yang sulit dijangkau di lingkungan apa pun. Alat pengukuran pada kamera yang canggih, autofokus berbantuan laser, dan FLIR yang terdepan di industri kualitas gambar memastikan Anda akan menemukan dan mendiagnosis masalah dengan cepat. Dengan mode Rute Inspeksi terpasang, Anda dapat mengunduh dan menjalankan rencana survei ke kamera Anda dari FLIR Thermal Studio Pro (dengan plugin Route Creator). Bersama-sama, sistem ini akan membantu Anda merekam suhu data dan citra dalam urutan logis untuk pemecahan masalah dan perbaikan yang lebih cepat Pembelian kamera T530 termasuk langganan 3 bulan ke FLIR Thermal Studio Pro dan FLIR Route Creator.
Kejernihan Gambar yang Luar Biasa
T530 menggunakan kekuatan FLIR Vision Processing™ untuk menghasilkan gambar yang detail dan halus dengan sedikit noise gambar. FLIR Vision Processing menggabungkan resolusi IR, MSX®, dan peningkatan gambar UltraMax® dengan algoritme penyaringan adaptif milik FLIR untuk menghasilkan gambar termal yang cemerlang hingga 307.200 piksel. Selain itu, T530 cukup sensitif untuk mendeteksi perbedaan suhu hingga <30 mK, untuk hasil yang jernih dan noise rendah.
SPECIFICATIONS
- Color Alarm (Isotherm) •Above •Below •Interval •Condensation (moisture/humidity/dewpoint) •Insulation
- Difference Temperature : Yes
- Display : 4″, 640 x 480 pixel touchscreen LCD with auto-rotation
- Display Technology : IPS
- Housing material : PCABS with TPE, magnesium
- Laser Alignment : Position is automatically displayed on the infrared image
- Laser Pointer : Class 2, 0.05–40 m (0.16–131 ft.) ±1% of measured distance
- Packaging Size : 500 x 190 x 370 mm (19.7 x 7.5 x 14.6 in.)
- Programmable Buttons : 2
- Resolution : 320 × 240 pixels (VGA)
- Size (L x W x H) : Lens horisontal: 140 × 201.3 × 167.3 mm (5.5 × 7.9 × 6.6 in.)
- Text : Predefined list or touchscreen keyboard
- Time Lapse [Infrared] :10 sec to 24 hrs
- Voice : 60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth
- Warranty : https://www.flir.com/warranty/
- Weight & Dimensions (without lens) :1.3 kg (2.9 lbs), 140 x 201 x 84 mm (5.5 x 7.9 x 3.3 in)
CONNECTIONS & COMMUNICATIONS
- Audio : Microphone and speaker for voice annotation of images
- Communication Interfaces : USB 2.0, Bluetooth, Wi-Fi
- METERLiNK : Wireless connection (Bluetooth) to: FLIR meters with METERLiNK
- METERLiNK – Bluetooth : Communication with headset and external sensors
- Remote Control : Using FLIR Tools (using USB cable) •FLIR Tools Mobile (over Wi-Fi)
- Setup Commands :Local adaptation of units, language, date, and time formats
- Storage Media : Removable SD card
- USB : USB Type-C: data transfer/video/power
- USB – Standard :USB 2.0 High Speed
- Video Out : DisplayPort over USB Type-C
ENVIRONMENTAL
- EMC : ETSI EN 301 489-1 (radio) •ETSI EN 301 489-17 •EN 61000-6-2 (immunity) •EN 61000-6-3 (emission) •FCC 47 CFR Part 15 Class B (emission)
- Emissivity Correction : Yes, variable from 0.01 to 1.0 or selected from materials list
- Humidity (Operating and Storage) :IEC 60068-2-30/24 hours, 95% relative humidity, 25–40°C (77–104°F)/2 cycles
- Operating Temperature Range : –15°C to 50°C (5°F to 122°F)
- Radio Spectrum : •ETSI EN 300 228 •FCC Part 15.249 •RSS-247 Issue 2
- Safety : EN/UL/CSA/PSE 60950-1
- Shock & Vibration & Encapsulation : 25 g / IEC 60068-2-27, 2 g / IEC 60068-2-6 / IP 54; EN/UL/CSA/PSE 60950-1
- Storage Temperature Range :–40°C to 70°C (-40°F to 158°F)
- Tripod Mounting : UNC 1/4″-20
IMAGING & OPTICAL
- Aspect ratio : 4:3
- Auto Rotation : Yes
- Camera software update : Use PC software FLIR Tools
- Color : Black
- Color Depth : 24
- Color Palettes : Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC
- Detector Type and Pitch : Uncooled microbolometer, 17 µm
- Digital Camera : 5 MP, with built-in LED photo/video lamp
- Digital Camera Focus : Fixed
- Digital Camera FOV : 53° × 41°
- Digital Zoom : 1-4x continuous
- Field of View : 14° × 10°
- Field of view match : Yes
- f-number : 1.5, 14°
- Focal Length : 29 mm (1.41 in.), 14°
- Focus : Continuous with laser distance meter (LDM), one- shot LDM, one-shot contrast, manual
- Gallery : Yes
- Global Positioning System [GPS] : Location data automatically added to every still image and first frame in video from built-in GPS
- Image Adjustment : •Automatic •Automatic maximum •Automatic minimum •Manual
- Image Frequency : 30 Hz
- Image Sketch : From touchscreen, on infrared image only
- IR Resolution : 320 x 240 (76,800 pixels)
- Lens Identification : Automatic
- Minimum Focus Distance : 1.0 m (3.28 ft.), 14°
- Minimum Focus Distance with MSX : 1.0 m (3.28 ft.), 14°
- Non-Radiometric IR or Visual Video : H.264 to memory card
- Non-radiometric IR video streaming : H.264 or MPEG-4 over Wi-Fi MJPEG over UVC or Wi-Fi
- Picture-in-Picture : Resizable and movable
- Radiometric IR video recording : Real-time radiometric recording (.csq)
- Radiometric IR video streaming : Over UVC
- Spatial resolution (IFOV) : 0.75 mrad/pixel, 14°
- Spectral Range : 7.5 – 14.0 µm
- Thermal Sensitivity/NETD : <50 mK, 14° @ 30°C (86°F)
- UltraMax : Quadruples pixel count; activated in menu and processed in FLIR Tools
- Video Lamp : Built-in LED light
- Viewfinder : No
- Viewing Angle : 80°
- Visual Image : Yes
- Visual Video Recording : H.264 to memory card
- Visual Video Streaming : Yes
MEASUREMENT & ANALYSIS
- Accuracy : ±2°C (±3.6°F) or ±2% of reading
- Area measurement information : Yes
- Automatic hot & cold detection : Automatic maximum/minimum markers within area
- Languages : 21
- Laser Distance Meter : Yes; dedicated button
- Measurement Corrections : Yes
- Measurement Function Alarm : Audible/visual alarms (above/below) on any selected measurement function
- Measurement Presets : •No measurements •Center spot •Hot spot •Cold spot •User preset 1 •User preset 2
- Object Temperature Range : -20°C to 120°C (-4°F to 248°F) 0°C to 650°C (32°F to 1202°F) Optional Calibration: 300°C to 1200°C (572°F to 2192°F)
- Reference Temperature :Yes
- Spotmeter and Area : 3 ea. in live mode
METER DATA
- Cover Glass Material : Dragontrail®
OTHER
- Touch Screen : Optically bonded PCAP
POWER
- Battery operating time :Approx. 4 hours at 25°C (77°F) ambient temperature and typical use
- Battery size (L x W x H) : 59 × 66 × 94 mm (2.3 × 2.6 × 3.7 in.)
- Battery Type : Li-ion battery, charged in camera or on separate charger
- Battery voltage : 3.6 V
- Battery weight : 195 g (6.89 oz.)
- Charging system : In camera (AC adapter or 12 V from a vehicle) or two-bay charger
- Charging Temperature : 0°C to 45°C (32°F to 113°F), except for the Korean market: 10°C to 45°C (50°F to 113°F)
- Charging Time (using two-bay charger) : 3.5 h to 90% capacity, on-screen indicator
- External Power Operation : AC adapter 90–260 V AC (50/60 Hz) or 12 V from a vehicle (cable with standard plug, optional)
- Power Management :Automatic shut-down and sleep mode
SHIPPING INFORMATION
- Packaging : Infrared camera with lens, 2 batteries, battery charger, hard transport case, lanyards, front lens cap, power supplies, printed documentation, SD card (8 GB), cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C)
Jual Flir T530 Thermal Imaging Camera dengan harga murah dan garansi resmi dari distributor. Dapatkan produk terbaik dari merek Flir dengan spesifikasi lengkap.
Beli Flir T530 hanya di Kucari dengan kualitas terbaik, bisa COD, Gratis pengiriman wilayah Jakarta dan sekitarnya. Belanja online sekarang hanya di toko online terpercaya.
Pengiriman ke seluruh Indonesia seperti Jakarta, Bandung, Bekasi, Depok, Cikarang, Tangerang, Lampung, Pontianak, Jogja, Semarang, Solo, Batam, Padang, Pekanbaru, Malang, Surabaya, Medan, Makassar, Balikpapan, Samarinda, Palembang, Riau, Aceh, Manado, NTT, NTB, Papua dan Bali Denpasar.
Specification: Flir T530 Thermal Imaging Camera
|
