FLUKE 1560 BLACK STACK THERMOMETER READOUTS

Accurate, expandable and configurable readout

  • Reads SPRTs, RTDs, thermistors, and thermocouples
  • Any configuration you like up to eight modules
  • High-accuracy reference thermometer (to ±0.0013°C)
  • Automates precision data acquisition.

Specifications

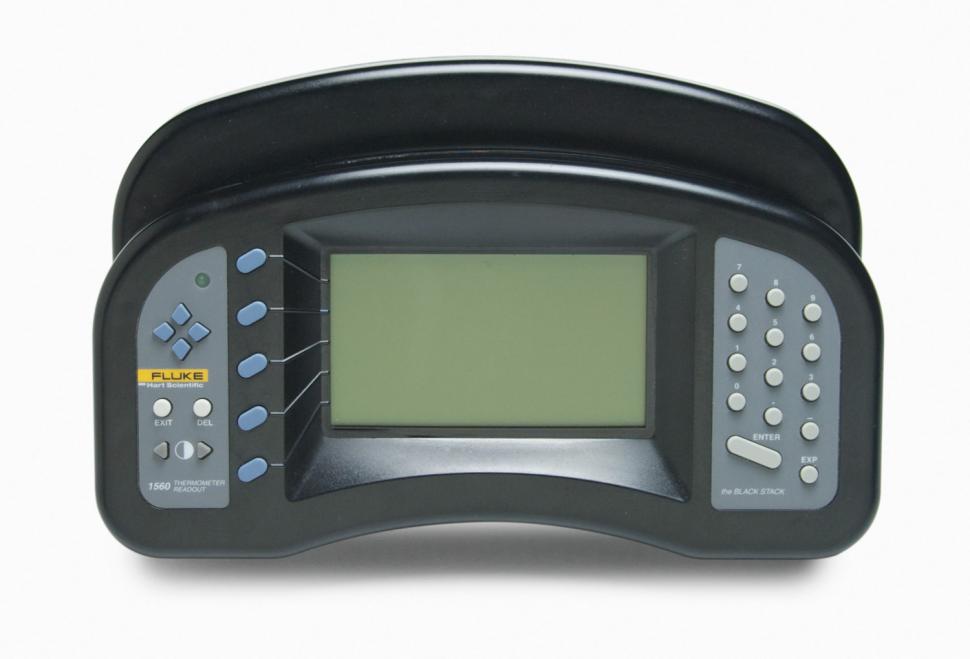

Model 1560 Base UnitPower: 100 to 240 VAC, 50 or 60 Hz, nominal; Attachable Modules: up to 8; Display: 4.25″ x 2.25″ LCD graphics, LED backlight, adjustable contrast and brightness; Automatic Input Sequencing: 1 to 96 channels; Communications: RS-232; Non-volatile Memory: channel sequence, probe coefficients; Minimum Sample Time: 2 seconds.
Extended Communication Module 3560The Extended Communication Module adds additional communication interface capability to the system. This module includes a GPIB (IEEE-488) interface, Centronics printer interface, and analog output. The GPIB interface connects the 1560 to a GPIB bus. GPIB can be used to control any function of the 1560 and read measurement data. The printer interface allows the 1560 to send measurement data directly to a printer. The analog output sources a DC signal (±1.25 VDC) corresponding to the value of a measurement.



Resistance Modules

.
Input Channels
Resistance Range
Basic Resistance Accuracy
Resistance Resolution
Temp.
Range
Equivalent Temperature Accuracy†
Temp.
Resolution
Excitation Current
SPRT Module 2560
2
0Ω to 400Ω
±20 ppm of reading (0.0005Ω at 25Ω, 0.002Ω at 100Ω)
0.0001Ω
–260°C to 962°C
±0.005°C at 0°C ±0.007°C at 100°C
0.0001°C
1.0 mA,
1.4 mA
High-Temp PRT Module 2561
2
0Ω to 25Ω
±50 ppm of reading (0.00013Ω at 2.5Ω)
0.00001Ω
0°C to 1200°C
±0.013°C at 0°C ±0.018°C at 100°C
0.001°C
3.0 mA,
5.0 mA
PRT Scanner 2562
8
0Ω to 400Ω
±40 ppm of reading (0.004Ω at 100Ω)
0.0001Ω
–200°C to 850°C
±0.01°C at 0°C ±0.014°C at 100°C
0.0001°C
1.0 mA,
1.4 mA
Standards Thermistor Module 2563
2
0Ω to 1 MΩ
±50 ppm of reading (0.5Ω at 10 KΩ)
0.1Ω
–60°C to 260°C
±0.0013°C at 0°C ±0.0015°C at 75°C
0.0001°C
2 µA,
10 µA
Thermistor Scanner 2564
8
0Ω to 1 MΩ
±100 ppm of reading (1Ω at 10 KΩ)
0.1Ω
–60°C to 260°C
±0.0025°C at 0°C ±0.003°C at 75°C
0.0001°C
2 µA,
10 µA
1000Ω PRT Module 2567
2
0Ω to 4 KΩ
±25 ppm of reading (0.025 at 1 KΩ)
0.001Ω
–260°C to 962°C
±0.006°C at 0°C ±0.009°C at 100°C
0.0001°C
0.1 mA,
0.05 mA
1000Ω PRT Scanner 2568
8
0Ω to 4 KΩ
±40 ppm of reading (0.04 at 1 KΩ)
0.001Ω
–200°C to 850°C
±0.01°C at 0°C ±0.014°C at 100°C
0.0001°C
0.1 mA,
0.05 mA



Thermocouple Modules

.
Input Channels
Millivolt Range
Millivolt Accuracy
Millivolt Resolution
Temperature Accuracy,Ext. CJC
Temperature Accuracy,Int. CJC
Temperature Resolution
Precision Thermocouple Module 2565
2
–10 to 100 mV
±0.002 mV
0.0001 mV
±0.05°C
±0.1°C
0.001°C††
Thermocouple Scanner 2566
12
–10 to 100 mV
±0.004 mV
0.0001 mV
±0.1°C
±0.3°C
0.01°C
Temperature accuracy depends on probe type and temperature
††Actual temperature resolution may vary depending on measurement noise, thermocouple sensitivity, and input average
