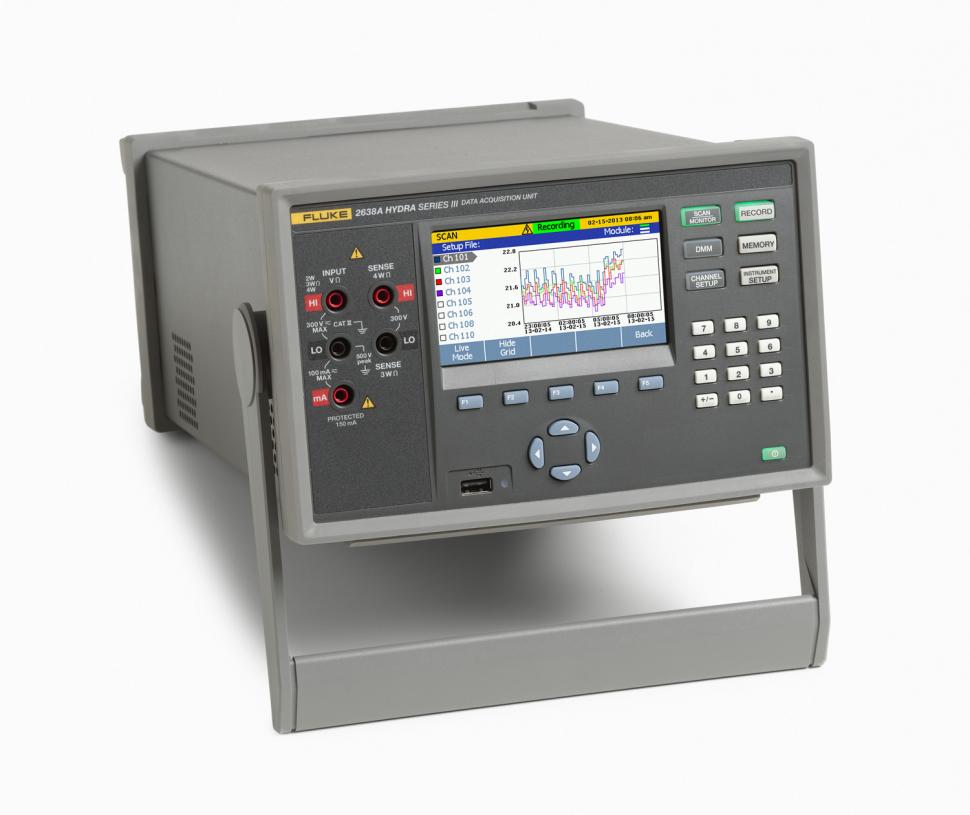

FLUKE 2638A HYDRA SERIES III DATA ACQUISITION SYSTEM/DIGITAL MULTIMETER


Fluke Hydra Series III continues the Hydra Series legacy of precision, multi-channel data acquisition. The new Series III improves on Hydra’s industry-leading thermocouple accuracy and adds a new dimension to how you collect and view data in a portable system.

Butuh bantuan? Whatsapp aja!
WhatsApp Chat
Send via WhatsApp

Sudah yakin dengan produk ini? Klik Tombol “Beli Sekarang”
*Harga tidak mengikat, sewaktu waktu bisa berubah tanpa pemberitahuan dahulu

Anda Perusahaan butuh penawaran harga resmi? Klik tombol “Penawaran Harga

FLUKE 2638A HYDRA SERIES III DATA ACQUISITION SYSTEM/DIGITAL MULTIMETER

Fluke Hydra Series III continues the Hydra Series legacy of precision, multi-channel data acquisition. The new Series III improves on Hydra’s industry-leading thermocouple accuracy and adds a new dimension to how you collect and view data in a portable system.

DC measurement accuracy of 0.0024 %, basic 0.5 °C thermocouple accuracy, full-color display, easy-to-use menu system and industrial safety ratings put the 2638A in a category of its own as a precision data acquisition system. The dedicated 6.5 digit digital multimeter (DMM) mode provides additional utility and value.

2638A is expandable from 22 to 66 channels of differential analog inputs. A flexible, 22-channel Universal Input Connector lets you connect and disconnect any type of input to any channel, quickly and easily. Selectable inputs include dc voltage, ac voltage, resistance, thermocouple, RTD, thermistor, frequency and dc and ac current. You can also use the 2638A with optional software and other Fluke data loggers to create a flexible, customized data acquisition system with an almost unlimited number of channels



Accuracy quoted as ± % measurement; quoted best value in range; 1 year specifications

Technical Specifications

DC Volts
Range:100 MV to 300 V
Resolution: 0.1 µV to 1 mV
Accuracy: 0.0024%
AC Volts
Range:100 mV to 300 V
Resolution: 0.1 µV to 1 mV
Accuracy: 0.11%
Resistance
Range:100 Ω to 100 MΩ
Resolution: 0.1 mΩ to 100 Ω
Accuracy: 0.01%
Frequency
Range:20 Hz to 1 MHz
Accuracy: 0.01%
RTD (Pt 100)
Range:-200 °C
Resolution:  0.001 °C
Accuracy: 0.016 °C
J Thermocouples
Range:-200 to 1,000
Resolution: 0.01 °C
Accuracy: 0.53 °C
K Thermocouples
Range:-200 °C to 1,000 °C
Resolution: 0.01 °C
Accuracy: 0.60 °C
T Thermocouples
Range:-270 °C to 400 °C
Resolution: 0.01 °C
Accuracy: 0.62 °C
Other
Thermocouple types
 R, S, N, E, B, C, D, G, L, M, U, W



General Specifications

Channel Capacity
Analog inputs:22 to 66 channels; 8  Digital I/O & 6 Alarm Outputs (TTL)
Totalizer:1
PowerVoltage: 100 V to 264 A in 4 power model selections (100 V, 120 V, 220 V, 240 V)

Frequency: 47 Hz to 440 Hz (automatically sensed when turned on)

Power consumption: 34 V A peak (24 W average)

CommunicationLAN: 10/100 Mb TCPIP DHCP

Remote commands: SCPI command set

Internal memory57,000 scans

1000 setup files

File securityDual level, Administrator, five secure users, Guest status
Alarm outputs6 TTL alarm outputs — assignable to one or multiple channels
Alarm setpoints2 assignable setpoints/channel, Hi Lo, Hi Hi, Lo Lo
Language menusEnglish, Chinese, French, German, Japanese, Korean, Portuguese, Russian, Spanish
TemperatureOperating: 0 °C to 50 °C

Storage: 20 °C to 70 °C

Warm-up: One hour to full uncertainty specifications

Relative humidity (non-condensing)Operating: 0 °C to 28 °C <90%
28 °C to 40 °C <75%
40 °C to 50 °C <50%

Storage: 20 °C to 70 °C <95%

Weight6 kg (13.2 lbs)
Dimensions150 mm x 285 mm x 385 mm (5.91 in x 11.22 in x 15.16 in)
Standard rack height3 U
