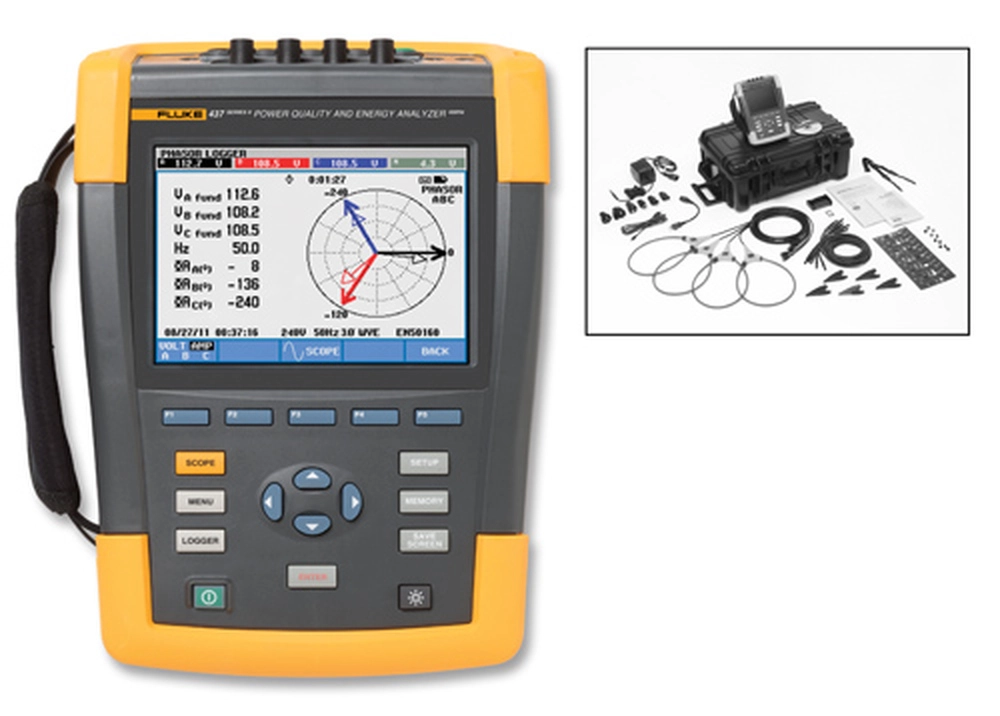

Fluke 435-II Three-Phase Power Quality and Energy Analyzer
Rp 245.050.000 *Inc. PPN
Penganalisis Energi Fluke 434-II membantu Anda memahami konsumsi energi secara keseluruhan dan menghitung berapa banyak kehilangan energi yang membebani fasilitas Anda. Penganalisis Energi dan Kualitas Daya Fluke 435-II menyertakan fitur hebat yang sama dengan 434-II sambil menambahkan fungsionalitas kualitas daya tingkat lanjut untuk pemecahan masalah yang lebih mendalam. Jika Anda memerlukan fungsionalitas tingkat lanjut yang sama dengan frekuensi 435-II yang lebih tinggi, Fluke 437-II adalah penganalisis kualitas daya yang harus dimiliki untuk sistem daya 400 Hz. Terakhir, Fluke 438-II Power Quality dan Motor Analyzer mencakup semua kualitas daya dan kemampuan analisis energi yang dimiliki Fluke 435-II serta kemampuan untuk mengukur parameter motor mekanis seperti kecepatan motor, torsi, dan daya mekanis tanpa perlu dari sensor mekanik.
Related Products
Penganalisis Energi Fluke 434-II membantu Anda memahami konsumsi energi secara keseluruhan dan menghitung berapa banyak kehilangan energi yang membebani fasilitas Anda. Penganalisis Energi dan Kualitas Daya Fluke 435-II menyertakan fitur hebat yang sama dengan 434-II sambil menambahkan fungsionalitas kualitas daya tingkat lanjut untuk pemecahan masalah yang lebih mendalam. Jika Anda memerlukan fungsionalitas tingkat lanjut yang sama dengan frekuensi 435-II yang lebih tinggi, Fluke 437-II adalah penganalisis kualitas daya yang harus dimiliki untuk sistem daya 400 Hz. Terakhir, Fluke 438-II Power Quality dan Motor Analyzer mencakup semua kualitas daya dan kemampuan analisis energi yang dimiliki Fluke 435-II serta kemampuan untuk mengukur parameter motor mekanis seperti kecepatan motor, torsi, dan daya mekanis tanpa perlu dari sensor mekanik.
Fluke 435-II memiliki fitur sebagai berikut ini :
| Features | Fluke 434-II | Fluke 435-II | Fluke 437-II | Fluke 438-II |
| Power Measurements | • | • | • | • |
| Power Quality Measurements | • | • | • | • |
| IEC61000-4-30 Compliance | Class S | Class A | Class A | Class A |
| Power, Energy & Loss Calculator | • | • | • | • |
| Monitor & Trending | • | • | • | • |
| Inrush, Inverter Efficiency | • | • | • | • |
| Advanced Analysis; Event Waveforms, Flicker, Transients, Mains Signaling, and Power Wave | • | • | • | |
| Shipboard Power & 400Hz | • | |||
| Motor Electrical & Mechanical Analysis | (Optional) | (Optional) | (Optional) | • |
| SD Card | • | • | • | • |
Specifications: Fluke 434-II and 435-II Power Quality and Energy Analyzers
| Volt | ||||
| Model | Measurement Range | Resolution | Accuracy | |
| Vrms (AC + DC) | 434-II | 1 V to 1000 V phase to neutral | 0.1 V | ±0.1% of nominal voltage1 |
| 435-II | 1 V to 1000 V phase to neutral | 0.01 V | ±0.1% of nominal voltage1 | |
| Vpk | 1 Vpk to 1400 Vpk | 1 V | 5% of nominal voltage | |
| Voltage Crest Factor (CF) | 1.0 > 2.8 | 0.01 | ±5% | |
| Vrms½ | 434-II | 1 V to 1000 V phase to neutral | 0.1 V | ± 1 % of nominal voltage |
| 434-II and 435-II | 0.1 V | ±0.2% of nominal voltage | ||
| Vfund | 434-II | 1 V to 1000 V phase to neutral | 0.1 V | ± 0.5 % of nominal voltage |
| 435-II | 0.1 V | ± 0.1 % of nominal voltage | ||
| Amps (accuracy excluding clamp accuracy) | ||||
| Amps (AC + DC) | i430-Flex 1x | 5 A to 6000 A | 1 A | ±0.5% ±5 counts |
| i430-Flex 10x | 0.5 A to 600 A | 0.1 A | ±0.5% ±5 counts | |
| 1mV/A 1x | 5 A to 2000 A | 1A | ±0.5% ±5 counts | |
| 1mV/A 10x | 0.5 A A to 200 A (AC only) | 0.1 A | ±0.5% ±5 counts | |
| Apk | i430-Flex | 8400 Apk | 1 Arms | ±5% |
| 1mV/A | 5500 Apk | 1 Arms | ±5% | |
| A Crest Factor (CF) | 1 to 10 | 0.01 | ±5% | |
| Amps½ | i430-Flex 1x | 5 A to 6000 A | 1 A | ±1% ±10 counts |
| i430-Flex 10x | 0.5 A to 600 A | 0.1 A | ±1% ±10 counts | |
| 1mV/A 1x | 5 A to 2000 A | 1 A | ±1% ±10 counts | |
| 1mV/A 10x | 0.5 A A to 200 A (AC only) | 0.1 A | ±1% ±10 counts | |
| Afund | i430-Flex 1x | 5 A to 6000 A | 1 A | ±0.5% ±5 counts |
| i430-Flex 10x | 0.5 A to 600 A | 0.1 A | ±0.5% ±5 counts | |
| 1mV/A 1x | 5 A to 2000 A | 1 A | ±0.5% ±5 counts | |
| 1mV/A 10x | 0.5 A A to 200 A (AC only) | 0.1 A | ±0.5% ±5 counts | |
| Hz | ||||
| Hz | Fluke 434 @ 50 Hz Nominal | 42.50 Hz to 57.50 Hz | 0.01 Hz | ±0.01 Hz |
| Fluke 434 @ 60 Hz Nominal | 51.00 Hz to 69.00 Hz | 0.01 Hz | ±0.01 Hz | |
| Fluke 435 @ 50 Hz Nominal | 42.500 Hz to 57.500 Hz | 0.001 Hz | ±0.01 Hz | |
| Fluke 435 @ 60 Hz Nominal | 51.00 Hz to 69.00 Hz | 0.001 Hz | ±0.01 Hz | |
| Power | ||||
| Watts (VA, var) | i430-Flex | max 6000 MW | 0.1 W to 1 MW | ±1% ±10 counts |
| 1 mV/A | max 2000 MW | 0.1 W to 1 MW | ±1% ±10 counts | |
| Power Factor (Cos j/DPF) | 0 to 1 | 0.001 | ±0.1% @ nominal load conditions | |
| Energy | ||||
| kWh (kVAh, kvarh) | i430-Flex 10x | Depends on clamp scaling and V nominal | ±1% ±10 counts | |
| Energy Loss | i430-Flex 10x | Depends on clamp scaling and V nominal | ±1% ±10 counts Excluding line resistance accuracy | |
| Harmonics | ||||
| Harmonic Order (n) | DC, 1 to 50 Grouping: Harmonic groups according to IEC 61000-4-7 | |||
| Inter-Harmonic Order (n) | OFF, 1 to 50 Grouping: Harmonic and Interharmonic subgroups according to IEC 61000-4-7 | |||
| Volts % | f | 0.0% to 100% | 0.1% | ±0.1% ±n x 0.1% |
| r | 0.0% to 100% | 0.1% | ±0.1% ±n x 0.4% | |
| Absolute | 0.0 to 1000 V | 0.1 V | ±5%1 | |
| THD | 0.0% to 100% | 0.1% | ±2.5% | |
| Amps % | f | 0.0% to 100% | 0.1% | ±0.1% ±n x 0.1% |
| r | 0.0% to 100% | 0.1% | ±0.1% ±n x 0.4% | |
| Absolute | 0.0 to 600 A | 0.1 A | ±5% ±5 counts | |
| THD | 0.0% to 100% | 0.1% | ±2.5% | |
| Watts % | f or r | 0.0% to 100% | 0.1% | ±n x 2% |
| Absolute | Depends on clamp scaling and V nominal | — | ±5% ±n x 2% ±10 counts | |
| THD | 0.0% to 100% | 0.1% | ±5% | |
| Phase Angle | -360° to +0° | 1° | ±n x 1° | |
| Flicker | ||||
| Plt, Pst, Pst (1 min) Pinst | 0.00 to 20.00 | 0.01 | ±5% | |
| Unbalance | ||||
| Volts % | 0.0% to 20.0% | 0.1% | ±0.1% | |
| Amps % | 0.0% to 20.0% | 0.1% | ±1% | |
| Mains Signaling | ||||
| Threshold Levels | Threshold, limits and signaling duration is programable for two signaling frequencies | — | — | |
| Signaling Frequency | 60 Hz to 3000 Hz | 0.1 Hz | ||
| Relative V % | 0% to 100% | 0.10% | ±0.4% | |
| Absolute V3s (3 second avg.) | 0.0 V to 1000 V | 0.1 V | ±5% of nominal voltage | |
| General Specifications | ||||
| Case | Design Rugged, shock proof with integrated protective holster Drip and dust proof IP51 according to IEC60529 when used in tilt stand position Shock and vibration Shock 30 g, vibration: 3 g sinusoid, random 0.03 g 2 /Hz according to MIL-PRF-28800F Class 2 | |||
| Display | Brightness: 200 cd/m 2 typ. using power adapter, 90 cd/m 2 typical using battery power Size: 127 x 88 mm (153 mm/6.0 in diagonal) LCD Resolution: 320 x 240 pixels Contrast and brightness: user-adjustable, temperature compensated | |||
| Memory | 8GB SD card (SDHC compliant, FAT32 formatted), up to 32GB optionally. Screen save and multiple data memories for storing data including recordings (dependent on memory size). | |||
| Real-Time Clock | Time and date stamp for Trend mode, Transient display, System Monitor and event capture | |||
| Environmental | ||||
| Operating Temperature | 0°C ~ +40°C; +40°C ~ +50°C excl. battery | |||
| Storage Temperature | -20°C ~ +60°C | |||
| Humidity | +10°C ~ +30°C: 95% RH non-condensing +30°C ~ +40°C: 75% RH non-condensing +40°C ~ +50°C: 45% RH non-condensing |
|||
| Maximum Operating Altitude | Up to 2,000 m (6666 ft) for CAT IV 600 V, CAT III 1000 V Up to 3,000 m (10,000 ft) for CAT III 600 V, CAT II 1000 V Maximum storage altitude 12 km (40,000 ft) |
|||
| Electro-Magnetic-Compatibility (EMC) | EN 61326 (2005-12) for emission and immunity | |||
| Interfaces | Mini-USB-B, Isolated USB port for PC connectivity SD card slot accessible behind instrument battery | |||
| Warranty | Three years (parts and labor) on main instrument, one year on accessories | |||
| View full family specifications » | ||||
| 1. ±5% if ≥ 1% of nominal voltage ±0.05% of nominal voltage if < 1% of nominal voltage 2. 50Hz/60Hz nominal frequency according to IEC 61000-4-30 3. 400Hz measurements are not supported for Flicker, Mains Signaling and Monitor Mode 4. For nominal voltage 50 V to 500 V |
||||
