FLUKE 830 LASER SHAFT ALIGNMENT TOOL

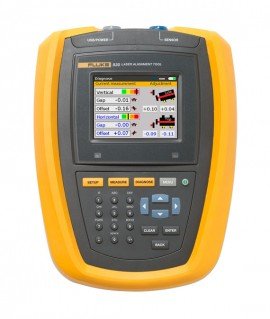

The Fluke 830 Laser Shaft Alignment Tool is the ideal test tool to precision-align rotating shafts in your facility

It’s a known fact – all rotating machinery is susceptible to misalignment. If you’re still using rulers and dial indicators to ensure your rotating machinery is properly aligned, you could be losing thousands of dollars per year in replacement bearing costs, hours of unnecessary repair time, and crippling unplanned downtime, not to mention taking years off your machine’s useful life.

The Fluke 830 Laser Shaft Alignment tool is easy-to-use, giving you fast, accurate and actionable answers that will keep your plant up and running. When it comes to laser shaft alignment, data is good but answers are better.

Computer

CPUIntel XScale PXA270 running at 312 MHz
Memory64 MB RAM, 64 MB flash
DisplayType: TFT, transmissive (sunlight-readable), 65,535 colors, backlit LED
Integrated light sensor for automated adjustment of the brightness to the display according to the lighting conditions which extends battery life
Resolution: 320 x 240 pixel;
Dimensions: 89 mm (3.5 in) diagonal
Keyboard elements: Setup, measure, diagnose, menu, clear, enter, back keys, navigation cursor cross, alphanumeric keyboard and on/off button
LED indicatorsMulticolor LED for laser status and alignment condition
Multicolor LED for battery status
Power supplyIntegrated Lithium-ion polymer rechargeable battery: 7.4 V/ 2.6 Ah (for optional computer) with typical operating time of 17 hours (based upon an operating cycle of 33% measurement, 33% computation and 33% ‘sleep’ mode)
External interfaceUSB host and USB device (slave)
Integrated wireless communication, Class 1, transmitting power 100 mW
RS232 (serial) for sensor
AC adapter/charger socket
Environmental protectionIP 65 (dustproof and water spray resistant), shockproof
Relative humidity 10% to 90%
Operating temperature-10°C to 50°C (14°F to 122°F)
Storage temperature-20°C to 60°C (-4°F to 140°F)
Dimensions220 mm x 165 mm x 45 mm (8.7 in x 6.5 in x 1.8 in)
Weight742 g (1.64 lb)



Sensor

Measurement principleCoaxial, reflected laser beam
Environmental protectionIP 67 (submersible, dustproof)
Ambient light protectionYes
Storage temperature-20°C to 80°C (-4°F to 176°F)
Operating temperature0°C to 55°C (32°F to 131°F)
Dimensions107 mm x 70 mm x 49 mm (4 1/4 in x 2 3/4 in x 2 in)
Weight177 g (6 1/2 oz)
LaserType: Ga-Al-As semiconductor laser
Wavelength (typical) 675 nm (red, visible)
Safety class: Class 2, FDA 21 CFR 1000 and 1040
Beam power: < 1 mW
Safety precautions: Do not look into laser beam
DetectorMeasurement area: unlimited, dynamically extendible
(U.S. Patent 6,040,903)
Resolution: 1 μm; Accuracy (avg): > 98%
InclinometerMeasurement range: 0° to 360°; Resolution: < 1°



Prism

Type90° roof prism; Accuracy (avg): > 99%
Environmental protectionIP 67 (submersible, dustproof)
Operating temperature-20°C to 60°C (-4°F to 140°F)
Storage temperature-20°C to 80°C (-4°F to 176°F)
Dimensions100 mm x 41 mm x 35 mm (4 in x 1 5/8 in x 1 3/8 in)
Weight65 g (2 1/2 oz.)



Carrying case

Dimensions565 mm x 343 mm x 127 mm (22 1/4 in x 13 1/2 in x 5 in)
Weight, including all standard parts5.6 kg (12.3 lb)
