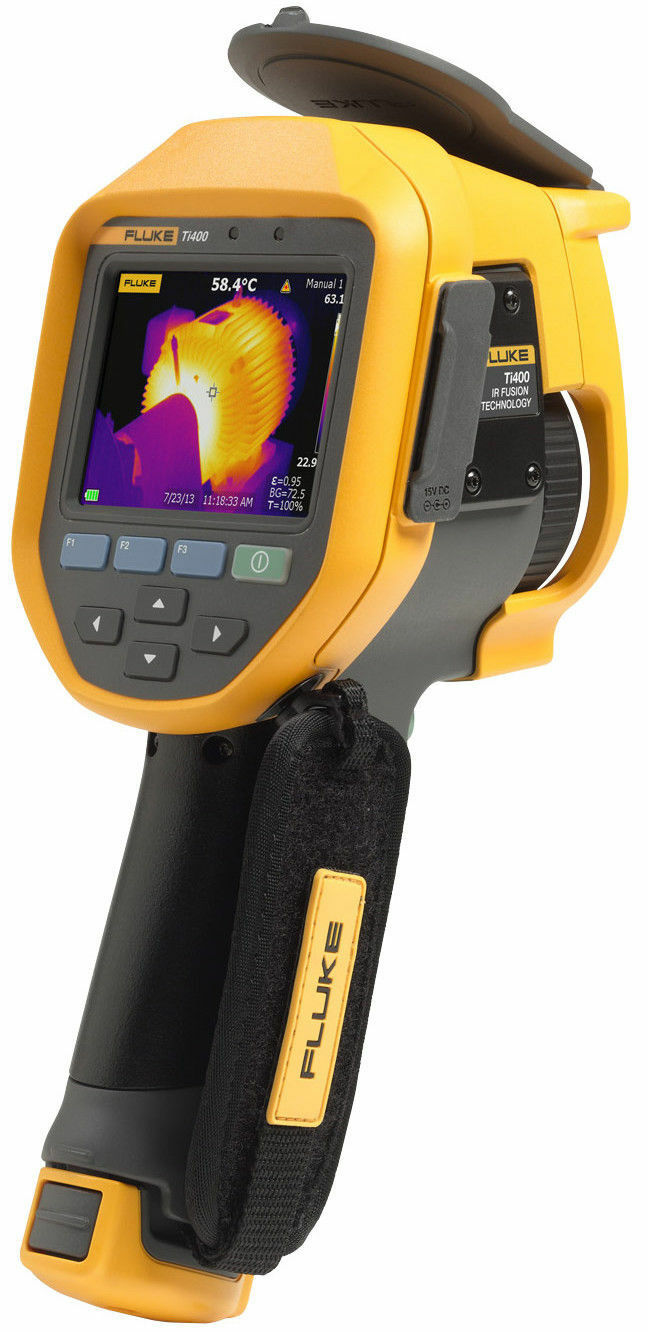

FLUKE TI400 INFRARED CAMERA
Rp 215.150.000 *Inc. PPN
- Capture additional digital images to show location or additional site details with IR-PhotoNotes™ Annotation System
- Voice recording and annotation gets additional details saved with the image file
- Optional interchangeable lenses for greater flexibility in additional applications
Related Products
FLUKE TI400 INFRARED CAMERA
Powerful high-performance features make troubleshooting fast and easy.
- LaserSharp® Auto Focus – get consistently in-focus images. Every. Single. Time. Utilizing precision laser technology, focus on your target with pinpoint accuracy and get the correct image and temperature measurements you need. Troubleshooting has never been easier.
- Fluke Connect™ App – See It. Save It. Share It. All the facts, right in the field
- See the crucial details needed to help clearly identify potential problems with precisely blended visual and infrared images – only with IR Fusion® technology with AutoBlend™ mode
- Faster communication with wireless image transfer directly to PC, Apple® iPhone® or iPad®
- One-handed, easy-to-use interface
- Ruggedized Touchscreen Display (Capacitive) 8.9 cm (3.5 in) diagonal landscape color VGA (640 x 480) LCD with backlight for quick menu navigation
- Capture additional digital images to show location or additional site details with IR-PhotoNotes™ Annotation System
- Voice recording and annotation gets additional details saved with the image file
- Optional interchangeable lenses for greater flexibility in additional applications
- Rechargeable, field replaceable smart batteries with five-segment LED display to show charge levels
- High-temperature measurement up to 1200°C
- 5 MP industrial-performance digital camera for high definition image quality
- Included SmartView® and SmartView Mobile App Analysis and Reporting Software
Key Features |
|
| IFOV (spatial resolution) | 1.31 mRad |
| Detector resolution | 320×240 (76,800 pixels) |
| Field of view | 24 °H x 17 °V |
| Minimum focus distance | 15 cm (approx. 6 in) |
| Optional lenses | Telephoto lens, wide angle lens |
| Focus system | LaserSharp® Auto Focus for consistently in-focus images, manual focus |
| Laser distance meter | Yes |
| Wireless connectivity | Fluke Connect™ app compatible. Wireless connectivity to PC, iPhone® and iPad® (iOS 4s and later), Android™ 4.3 and up, and WiFi to LAN1 |
| IR-Fusion® technology | IR-Fusion® AutoBlend™ mode and Picture-in-Picture |
| Display | Touchscreen capacitive 3.5 inch diagonal landscape color VGA (640 x 480) LCD with backlight |
| Design | Rugged, ergonomic design for one-handed use |
| Thermal sensitivity (NETD) | ≤ 0.05 °C at 30 °C target temp (50 mK) |
| Temperature measurement range | -20 °C to +1200 °C (-4 °F to+2192 °F) |
| Built-in digital camera (visible light) | 5 megapixel industrial performance |
| Frame rate | 60 Hz or 9 Hz versions |
Data Storage and Image Capture |
|
| Extensive memory options | Removable micro SD memory card, on-board flash memory, save-to-USB capability, direct download via USB-to-PC connection |
| File formats image | Non-radiometric (.bmp) or (.jpeg) or fully-radiometric (.is2) No analysis software required for non-radiometric (.bmp, .jpg and .avi) files |
| SmartView® software | SmartView® software, Fluke Connect™1, and SmartView® Mobile App—full analysis and reporting software |
| Voice annotation | 60 seconds maximum recording time per image; reviewable playback on camera |
| IR-PhotoNotes™ | Yes |
| Text annotation | Yes |
| Video recording | Standard and radiometric |
| Streaming video (remote display) | Via USB or WiFi hot spot to PC or via HDMI to HDMI compatible screen |
| Auto capture (temperature and interval) | Yes |
| Remote control | Yes |
Battery |
|
| Batteries (field-replaceable, rechargeable) | Two lithium ion smart battery packs with five-segment LED display to show charge level |
| AC battery charging system | Two-bay battery charger or in imager charging. Optional 12 V automotive charging adapter |
Temperature Measurement |
|
| Accuracy | ± 2 °C or 2 % (at 25 °C nominal, whichever is greater) |
| On-screen emissivity correction | Yes (both value and table) |
| On-screen reflected background temperature compensation | Yes |
| On-screen transmission correction | Yes |
General Specifications |
|
| Color palettes | 8 standard and 8 Ultra Contrast™: Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted |
| Color alarms (temperature alarms) | High-temperature, low-temperature, and isotherm |
| Spot temp | Hot and cold spot markers |
| User-definable spot markers | 3 user definable spot markers on camera and in SmartView® software |
| Center box | Expandable-contractible measurement box with MIN-MAX-AVG temp |
| Drop | Engineered to withstand 2 meter (6.5 feet) drop with standard lens |
| Size (H x W x L) | 27.7 cm x 12.2 cm x 16.7 cm (10.9 in x 4.8 in x 6.5 in) |
| Weight (battery included) | 1.04 Kg (2.3 lb) |
| Enclosure rating | IP54 (protected against dust, limited ingress; protection against water spray from all directions) |
Thermal Imaging adalah salah satu metode pendeteksian yang meningkatkan visibilitas objek dalam gelap dengan mendeteksi radiasi inframerah dari benda dan menciptakan gambar berdasarkan informasi tersebut.Thermal Imaging, Infrared dan Low-Light Imaging adalah tiga teknologi yang paling sering dipakai dalam penggunaan night vision. Berbeda dengan dua metode lainnya, thermal imaging bekerja di lingkungan tanpa cahaya. Seperti near-infrared illumination, thermal imaging dapat menembus benda-benda gas seperti asap dan kabut. Cara kerja thermal imaging adalah semua benda memancarkan energi inframerah (panas) sebagai fungsi temperature. Energi inframerah yang dipancarkan oleh sebuah objek yang dikenal sebagai heat-imaging.
UpdateJual FLUKE TI400 INFRARED CAMERA dengan harga murah dan garansi resmi dari distributor. Dapatkan produk terbaik dari merek Fluke dengan spesifikasi lengkap.
Belanja online Thermal Imaging hanya di Kucari dengan kualitas terbaik, harga murah bersaing, bisa COD, Gratis pengiriman wilayah Jakarta dan sekitarnya. Beli sekarang hanya di toko online terpercaya.
Pengiriman ke seluruh Indonesia seperti Jakarta, Bandung, Bekasi, Depok, Cikarang, Tangerang, Lampung, Pontianak, Jogja, Semarang, Solo, Batam, Padang, Pekanbaru, Malang, Surabaya, Medan, Makassar, Balikpapan, Samarinda, Palembang, Riau, Aceh, Manado, NTT, NTB, Papua dan Bali Denpasar.
Specification: FLUKE TI400 INFRARED CAMERA
| Weight | 2 kg |
|---|
