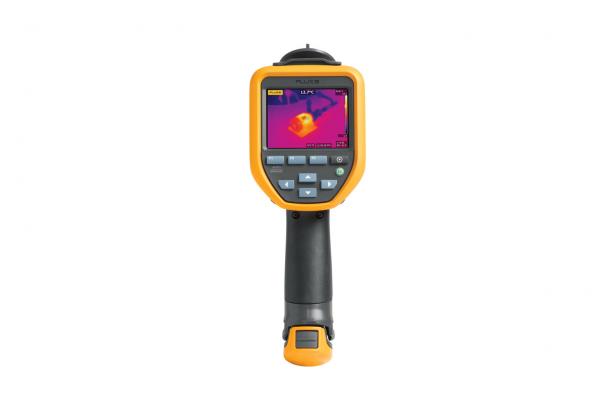

FLUKE TIS10 INFRARED CAMERA
Rp 33.150.000 *Inc. PPN
- Point and shoot simplicity with 80×60 resolution (4,800 pixels)
- Capture quality images at a distance with a D:S of 128:1
- Know your power level – rechargeable batteries with level indicator
- Rugged and reliable
Related Products
FLUKE TIS10 INFRARED CAMERA
Fast and easy troubleshooting
- Point and shoot simplicity with 80×60 resolution (4,800 pixels)
- Capture quality images at a distance with a D:S of 128:1
- Know your power level – rechargeable batteries with level indicator
- Rugged and reliable
Key Features |
|
| IFOV (spatial resolution) | 7.8 mRad |
| Detector resolution | 80×60 |
| Field of view | 35.7 ° x 26.8 ° |
| Distance to spot | 128:1 |
| Wireless connectivity | Yes |
| Fluke Connect® app compatible | Yes (where available) |
IR-Fusion® Technology |
|
| AutoBlend™ mode | – |
| Picture-In-Picture (PIP) | – |
| Focus system | Fixed focus, Minimum focus distance 0.45 m (1.5 ft) |
| Ruggedized display | 3.5 inch (landscape) 320×240 LCD |
| Rugged, ergonomic design for one-handed use | Yes |
| Thermal sensitivity (NETD) | ≤0.15 °C at 30 °C target temp (150 mK) |
| Temperature measurement range (not calibrated below -10 °C) | -20 °C to +250 °C (–4 °F to 482 °F) |
| Level and span | Smooth auto and manual scaling |
| Fast auto toggle between manual and auto modes | Yes |
| Fast auto-rescale in manual mode | Yes |
| Minimum span (manual mode) | 2.5 °C |
| Minimum span (auto mode) | 5 °C |
| Built-in digital camera (visible light) | 5 MP |
| Frame rate | 9 Hz |
| Laser pointer | – |
Data storage and Image Capture |
|
| Extensive SD memory system | Internal 4 GB (optional 4 GB micro SD card sold separately) |
| Image capture, review, save mechanism | One-handed image capture, review, and save capability |
| Image file formats | Non-radiometric (.bmp) or (.jpeg) or fully-radiometric (.is2); No analysis software required for non-radiometric (.bmp, .jpg) files |
| Instant Upload | Instantly upload captured images to Fluke Connect server with the use of a WiFi connection |
| Memory review | Thumbnail review |
| Software | SmartView® software – full analysis and reporting software and Fluke Connect® (where available) |
| Export file formats with SmartView® software | BMP, DIB, GIF, JPE, JFIF, JPEG, JPG, PNG, TIF, and TIFF |
| Voice annotation | – |
| IR-PhotoNotes™ | – |
| Standard video recording | – |
| Radiometric video recording | – |
| Video file formats | – |
| Streaming video (remote display) | – |
Battery |
|
| Batteries (field-replaceable, rechargeable) | One lithium ion smart battery pack with five-segment LED display to show charge level |
| Battery life | Four+ hours |
| Battery charge time | 2.5 hours to full charge |
| Battery charging system | In-imager charging (optional external charger sold separately) |
| AC operation | AC operation with included power supply (100 V AC to 240 V AC, 50/60 Hz) |
Temperature Measurement |
|
| Accuracy | ±2 °C or 2% (at 25 °C nominal, whichever is greater) |
| On-screen emissivity correction | Yes (both value and table) |
| On-screen reflected background temperature compensation | Yes |
| On-screen transmission correction | Yes |
Color Palettes |
|
| Standard palettes | 3: Ironbow, Blue-Red, Grayscale |
| Ultra Contrast™ palettes | – |
General Specifications |
|
| Color alarms (temperature alarms) | – |
| Infrared spectral band | 7.5 μm to 14 μm |
| Operating temperature | -10 °C to +50 °C (14 °F to 122 °F) |
| Storage temperature | -20 °C to +50 °C (-4 °F to 122 °F) |
| Relative humidity | 10% to 95%, non-condensing |
| Center-point temperature measurement | – |
| Spot temperature | Yes |
| User-definable spot markers | – |
| Center box | – |
| Safety standards | EN 61010-1: CAT none, pollution degree 2, EN 60825-1: Class 2, EN 60529, EN 62133 (lithium battery) |
| Electromagnetic compatibility | EN 61326-1:2006, EN 55011: Class A, EN 61000-4-2, EN 61000-4-3 |
| C Tick | IEC/EN 61326-1 |
| US FCC | EN61326-1; FCC Part 5, EN 55011: Class A, EN 61000-4-2, EN 61000-4-3 |
| Vibration and shock | 2G, IEC 68-2-6 and 25G, IEC 68-2-29 |
| Drop | Engineered to withstand 2 m (6.5 ft) drop |
| Size (H x W x L) | 26.7 x 10.1 x 14.5 cm (10.5 x 4.0 x 5.7 in) |
| Weight (battery included) | Fixed focus .72 kg (1.6 lb), Manual focus .77 kg (1.7 lb) |
| Enclosure rating | IP54 (protected against dust, limited ingress; protection against water spray from all directions) |
| Warranty | Two-years (standard), extended warranties are available |
| Recommended calibration cycle | Two-years (assumes normal operation and normal aging) |
| Supported languages | Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish |
Thermal Imaging adalah salah satu metode pendeteksian yang meningkatkan visibilitas objek dalam gelap dengan mendeteksi radiasi inframerah dari benda dan menciptakan gambar berdasarkan informasi tersebut.Thermal Imaging, Infrared dan Low-Light Imaging adalah tiga teknologi yang paling sering dipakai dalam penggunaan night vision. Berbeda dengan dua metode lainnya, thermal imaging bekerja di lingkungan tanpa cahaya. Seperti near-infrared illumination, thermal imaging dapat menembus benda-benda gas seperti asap dan kabut. Cara kerja thermal imaging adalah semua benda memancarkan energi inframerah (panas) sebagai fungsi temperature. Energi inframerah yang dipancarkan oleh sebuah objek yang dikenal sebagai heat-imaging.
UpdateJual FLUKE TIS10 INFRARED CAMERA dengan harga murah dan garansi resmi dari distributor. Dapatkan produk terbaik dari merek Fluke dengan spesifikasi lengkap.
Belanja online Thermal Imaging hanya di Kucari dengan kualitas terbaik, harga murah bersaing, bisa COD, Gratis pengiriman wilayah Jakarta dan sekitarnya. Beli sekarang hanya di toko online terpercaya.
Pengiriman ke seluruh Indonesia seperti Jakarta, Bandung, Bekasi, Depok, Cikarang, Tangerang, Lampung, Pontianak, Jogja, Semarang, Solo, Batam, Padang, Pekanbaru, Malang, Surabaya, Medan, Makassar, Balikpapan, Samarinda, Palembang, Riau, Aceh, Manado, NTT, NTB, Papua dan Bali Denpasar.
Specification: FLUKE TIS10 INFRARED CAMERA
| Weight | 73 kg |
|---|
