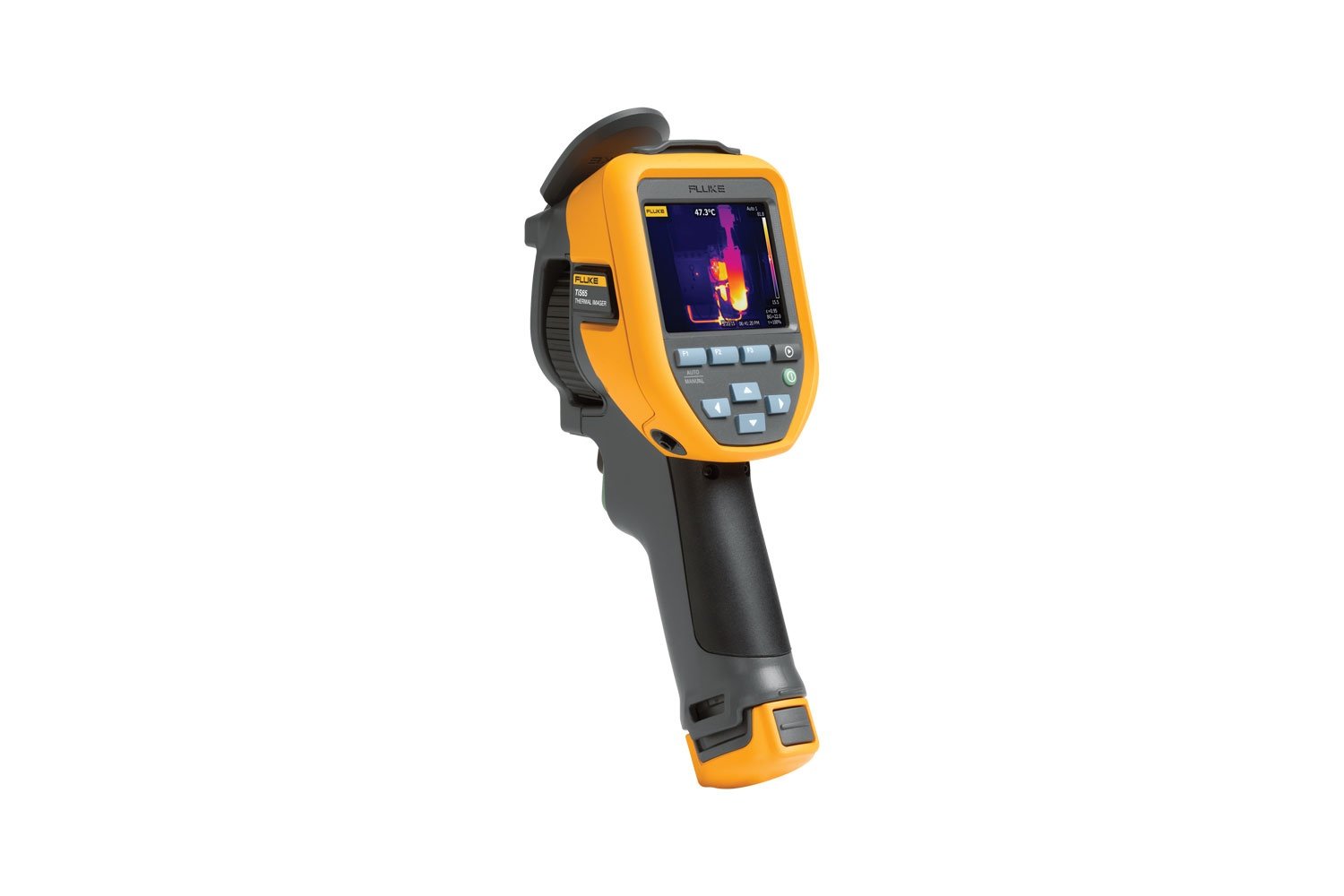

FLUKE TIS65 INFRARED CAMERA


  • Quality images with maximized pixel performance at 260×195
  • Capture optimal images from as close as 0.15m (6in) with manual focus
  • Get quality images at a distance with a D:S of 417:1
  • See more and analyze faster with IR-Fusion® blending and picture-in-picture
  • Get 33% more viewing area inspecting with a 3.5 inch, 320×240 LCD Screen
  • Know your power level – rechargeable batteries with level indicator
  • Easily pinpoint problems with a built-in laser pointer
  • Manual focus, Minimum focus distance, 0.15 m (6 in)
  • Rugged and reliable

[cresta-whatsapp-chat text=”Butuh bantuan? Whatsapp aja!” icon=”yes” position=”top” use=”number” number=””]

Sudah yakin dengan produk ini? Klik Tombol “Beli Sekarang”
*Harga tidak mengikat, sewaktu waktu bisa berubah tanpa pemberitahuan dahulu

Anda Perusahaan butuh penawaran harga resmi? Klik tombol “Penawaran Harga

FLUKE TIS65 INFRARED CAMERA

Ultimate versatility in high performance IR camera

  • Quality images with maximized pixel performance at 260×195
  • Capture optimal images from as close as 0.15m (6in) with manual focus
  • Get quality images at a distance with a D:S of 417:1
  • See more and analyze faster with IR-Fusion® blending and picture-in-picture
  • Get 33% more viewing area inspecting with a 3.5 inch, 320×240 LCD Screen
  • Know your power level – rechargeable batteries with level indicator
  • Easily pinpoint problems with a built-in laser pointer
  • Manual focus, Minimum focus distance, 0.15 m (6 in)
  • Rugged and reliable



Key Features

IFOV (spatial resolution)2.4 mRad
Detector resolution260×195
Field of view35.7 ° x 26.8 °
Distance to spot417:1
Wireless connectivityYes
Fluke Connect® app compatibleYes (where available)

IR-Fusion® Technology

AutoBlend™ mode5 presets (0%, 25%, 50%, 75%, 100%)
Picture-In-Picture (PIP)5 presets (0%, 25%, 50%, 75%, 100%)
Focus systemManual focus, Minimum focus distance, 0.15 m (6 in)
Ruggedized display3.5 inch (landscape) 320×240 LCD
Rugged, ergonomic design for one-handed useYes
Thermal sensitivity (NETD)≤ 0.08 °C at 30 °C target temp (80 mK)
Temperature measurement range (not calibrated below -10 °C)-20 °C to +550 °C (–4 °F to 1022 °F)
Level and spanSmooth auto and manual scaling
Fast auto toggle between manual and auto modesYes
Fast auto-rescale in manual modeYes
Minimum span (manual mode)2.5 °C
Minimum span (auto mode)5 °C
Built-in digital camera (visible light)5 MP
Frame rate9 Hz or 30 Hz
Laser pointerYes

Data storage and Image Capture

Extensive SD memory systemInternal 4 GB memory and 4 GB removable micro SD card
Image capture, review, save mechanismOne-handed image capture, review, and save capability
Image file formatsNon-radiometric (.bmp) or (.jpeg) or fully-radiometric (.is2);
No analysis software required for non-radiometric (.bmp, .jpg) files
Instant uploadInstantly upload captured images to Fluke Connect server with the use of a WiFi connection
Memory reviewThumbnail review
SoftwareSmartView® software – full analysis and reporting software and Fluke Connect® (where available)
Export file formats with SmartView® softwareBMP, DIB, GIF, JPE, JFIF, JPEG, JPG, PNG, TIF, and TIFF
Voice annotationYes, Bluetooth Headset (sold separately)
IR-PhotoNotes™Yes (3 images)
Standard video recordingYes
Radiometric video recordingYes
Video file formatsNon-radiometric (MPEG – encoded .AVI) and fully radiometric (.IS3)
Streaming video (remote display)Yes

Battery

Batteries (field-replaceable, rechargeable)Two lithium ion smart battery packs with five-segment LED display to show charge level
Battery lifeFour+ hours
Battery charge time2.5 hours to full charge
Battery charging systemTwo-bay battery charger or in-imager charging
AC operationAC operation with included power supply (100 V AC to 240 V AC, 50/60 Hz)

Temperature Measurement

Accuracy±2 °C or 2% (at 25 °C nominal, whichever is greater)
On-screen emissivity correctionYes (both value and table)
On-screen reflected background temperature compensationYes
On-screen transmission correctionYes

Color Palettes

Standard palettes8: Ironbow, Blue-Red, High-Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted
Ultra Contrast™ palettes8: Ironbow Ultra, Blue-Red Ultra, High-Contrast Ultra, Amber Ultra, Amber Inverted Ultra, Hot Metal Ultra, Grayscale Ultra, Grayscale Inverted Ultra

General Specifications

Color alarms (temperature alarms)High temperature, low temperature, Isotherms
Infrared spectral band7.5 μm to 14 μm
Operating temperature-10 °C to +50 °C (14 °F to 122 °F)
Storage temperature-20 °C to +50 °C (-4 °F to 122 °F)
Relative humidity10% to 95%, non-condensing
Center-point temperature measurementYes
Spot temperatureYes
User-definable spot markers3
Center boxExpandable-contractible measurement box with MIN-MAX-AVG temp
Safety standardsEN 61010-1: CAT none, pollution degree 2, EN 60825-1: Class 2, EN 60529, EN 62133 (lithium battery)
Electromagnetic compatibilityEN 61326-1:2006, EN 55011: Class A, EN 61000-4-2, EN 61000-4-3
C TickIEC/EN 61326-1
US FCCEN61326-1; FCC Part 5, EN 55011: Class A, EN 61000-4-2, EN 61000-4-3
Vibration and shock2G, IEC 68-2-6 and 25G, IEC 68-2-29
DropEngineered to withstand 2 m (6.5 ft) drop
Size (H x W x L)26.7 x 10.1 x 14.5 cm (10.5 x 4.0 x 5.7 in)
Weight (battery included)Fixed focus .72 kg (1.6 lb), Manual focus .77 kg (1.7 lb)
Enclosure ratingIP54 (protected against dust, limited ingress; protection against water spray from all directions)
Recommended calibration cycleTwo-years (assumes normal operation and normal aging)
Supported languagesCzech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish
