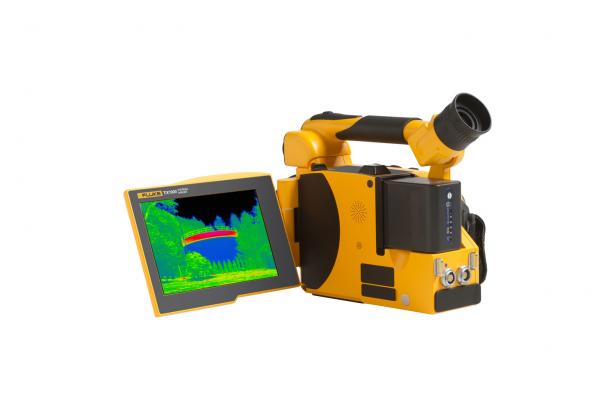

FLUKE TIX1000 INFRARED CAMERA
Rp 1.739.140.000 *Inc. PPN
- 10 times the on-camera pixels than standard 320×240 cameras (1024 x 768 resolution, 786,432 pixels)
- Enhance image quality and temperature measurement accuracy – get 4 times greater resolution and pixels than standard mode with SuperResolution (up to 3,145,728 pixels)
- Work from safer distances. Inspect areas that you could not get close to any other way and still get spectacular, detailed infrared images.
- Get a premium in-field viewing experience for quick issue identification with the large 5.6 inch high resolution LCD screen
Related Products
FLUKE TIX1000 INFRARED CAMERA
See even the smallest details, close up or from great distances with 1024 x 768 resolution.
- 10 times the on-camera pixels than standard 320×240 cameras (1024 x 768 resolution, 786,432 pixels)
- Enhance image quality and temperature measurement accuracy – get 4 times greater resolution and pixels than standard mode with SuperResolution (up to 3,145,728 pixels)
- Work from safer distances. Inspect areas that you could not get close to any other way and still get spectacular, detailed infrared images.
- Get a premium in-field viewing experience for quick issue identification with the large 5.6 inch high resolution LCD screen
Image Quality |
|
| IFOV (spatial resolution) | 0.6 mRad |
| Image resolution (pixel) | 1024 x 768 (786,432 pixels) |
| 2048 x 1536 (3,145,728 pixels) (SuperResolution mode) | |
| Frame rate (@ max. image resolution) | 30 and 9 Hz |
| SuperResolution & Dynamic SuperResolutin (resolution enhancement) | Yes, MicroScan technology quadruples IR measurement pixels |
| Subwindowing modes available – subwindowing options are not available on 9 Hz models: (add on at time of order) | Option 1: 640 x 480 (60 fps) Option 2: 384 x 288 (120 fps) Option 3: 1024 x 96 (240 fps) |
| Field of View (FOV) w/standard 30mm lens | 32.4° x 24.7° |
| Thermal sensitivity (NETD) | ≤ 0.05 °C at 30 °C target temp (50 mK) |
| Spectral range | 7.5 µm to 14 µm |
Wireless Connectivity |
|
| Fluke Connect® compatible | No |
IR-Fusion® Technology |
|
| AutoBlend™ mode | Yes |
| Viewing modes | Picture-in-picture, continuous blending, color alarms (above and below user defined temperatures) |
Focus System |
|
| LaserSharp® Auto Focus | Yes |
| Auto focus | Yes |
| Manual focus | Yes, with the touch of a finger for tighter views |
| EverSharp multifocal recording | Yes, Multifocal recording captures images from different focal distances and combines them into one image displaying each object sharply for the best image quality |
Temperature Measurement |
|
| Range | -40 °C to +1200 °C (-40 °F to 2192 °F), High temperature option – request at time of order: up to 2000 °C (3632 °F) |
| Accuracy | ± 1.5 °C or ± 1.5 % |
| Correction functions | LDC™ – Laser rangefinder based distance correction, emissivity (manual or material table) |
| Transmissivity, ambient temperature, humidity (option) | |
Data Storage and Image Capture |
|
| Image/video storage | SDHC memory card |
| Interfaces for image/data transfer | Supported in camera data ports: Image transfer: SD card, USB 2.0, video output DVI-D (HDMI). GigE vision and RS232 available in 2015 |
| SmartView® software: SD card. USB 2.0, GigE Vision and RS232 available in 2015 | |
General Specifications |
|
| Laser pointer | Yes, laser class: 2 |
| Laser distance meter | Accuracy: ± 1.5 mm Range: 70 m (230 ft) Wavelength: 635 nm (red) Laser class: 2 |
| Display | Extra-large 5.6″ color TFT display, 1280 × 800 pixel resolution, Suitable for daylight operation |
| Geo-localization | Built-in GPS for geo-referencing |
| Digital visible light camera | Up to 8 megapixel resolution for image and video recording |
| Digital zoom | Up to 32x digital zoom |
| Text annotation | Yes |
| Voice annotation | Yes |
| Audio | Integrated microphone and loudspeaker for voice annotations |
| A/D conversion | 16 bit |
| Power supply | External: 12 VDC … 24 VDC Battery: Standard Li-Ion video camera battery |
| Replaceable Smart Batteries with LED level indicator | Two |
| Operating temperature | -25 °C to +55 °C (-13 °F to 131 °F) |
| Storing temperature | -40 °C to +70 °C (-40 °F to 158 °F) |
| Humidity | Relative humidity 10 % to 95 %, non-condensing |
| Shock | Operational: 25G, IEC 68-2-29 |
| Vibration | Operational: 2G, IEC 68-2-6 |
| Protection class | IP54 |
| Ergonomics | Camcorder w/ handle |
| Viewfinder | Tiltable LCoS color viewfinder display, 800 × 600 pixel resolution |
| Dimensions (with standard 1.0/30 mm lens) | 210 × 125 × 155 mm (8.25 x 4.9 x 6.1 in) |
| Weight (with standard 1.0/30 mm lens) | 1.95 kg (4.3 lb) |
| Measurement functions (selection) | Multiple measurement spots & Regions of Interest (ROIs), hot/cold spot detection, isotherms, profiles, differences |
| Automatic functions (selection) | Focus, image, level, range, NUC, lens recognition, image optimization, alarm sequence |
| SmartView® software | Yes |
| Supported languages | Czech, Dutch, English, Finnish, French, German, Hugarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese and Turkish. |
Thermal Imaging adalah salah satu metode pendeteksian yang meningkatkan visibilitas objek dalam gelap dengan mendeteksi radiasi inframerah dari benda dan menciptakan gambar berdasarkan informasi tersebut.Thermal Imaging, Infrared dan Low-Light Imaging adalah tiga teknologi yang paling sering dipakai dalam penggunaan night vision. Berbeda dengan dua metode lainnya, thermal imaging bekerja di lingkungan tanpa cahaya. Seperti near-infrared illumination, thermal imaging dapat menembus benda-benda gas seperti asap dan kabut. Cara kerja thermal imaging adalah semua benda memancarkan energi inframerah (panas) sebagai fungsi temperature. Energi inframerah yang dipancarkan oleh sebuah objek yang dikenal sebagai heat-imaging.
UpdateJual FLUKE TIX1000 INFRARED CAMERA dengan harga murah dan garansi resmi dari distributor. Dapatkan produk terbaik dari merek Fluke dengan spesifikasi lengkap.
Belanja online Thermal Imaging hanya di Kucari dengan kualitas terbaik, harga murah bersaing, bisa COD, Gratis pengiriman wilayah Jakarta dan sekitarnya. Beli sekarang hanya di toko online terpercaya.
Pengiriman ke seluruh Indonesia seperti Jakarta, Bandung, Bekasi, Depok, Cikarang, Tangerang, Lampung, Pontianak, Jogja, Semarang, Solo, Batam, Padang, Pekanbaru, Malang, Surabaya, Medan, Makassar, Balikpapan, Samarinda, Palembang, Riau, Aceh, Manado, NTT, NTB, Papua dan Bali Denpasar.
Specification: FLUKE TIX1000 INFRARED CAMERA
| Weight | 2 kg |
|---|
