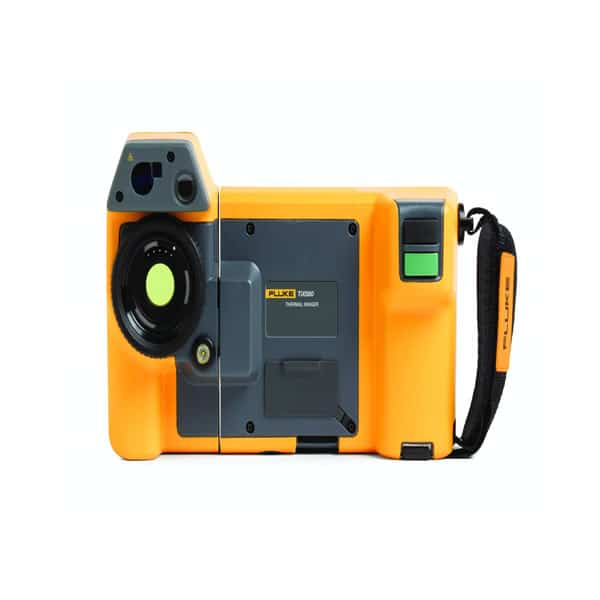

FLUKE TIX580 INFRARED CAMERA
Rp 345.000.000 *Inc. PPN
- 5.7-inch screen provides 150 % more viewing area than a standard 3.5-inch screen
- 240–degree rotating screen provides unmatched shooting flexibility
- The ergonomic design and neck strap make long inspection days a lot easier
- LaserSharp® Auto Focus calculates distance to your designated target with pinpoint1 accuracy
Related Products
FLUKE TIX580 INFRARED CAMERA is a rugged and superbly engineered 640 x 480 thermal imaging camera. Users can now perform thermal imaging inspections with more confidence and faster results than ever before – all with the ruggedness and ease of use expected from Fluke.
- 5.7-inch screen provides 150 % more viewing area than a standard 3.5-inch screen
- 240–degree rotating screen provides unmatched shooting flexibility
- The ergonomic design and neck strap make long inspection days a lot easier
- LaserSharp® Auto Focus calculates distance to your designated target with pinpoint1 accuracy
- MultiSharp™ Focus delivers automatically focused images throughout your field of view, dramatically eliminating potential for misdiagnosis
- IR Fusion® technology lets you easily adjust visible and infrared image blending
- Fluke Connect® links your camera to the Fluke network of wireless test and measurement tools
- Get 4x the pixel data with SuperResolution, which captures multiple images and combines them to create a 1280 x 960 image
- Reduce the need to take notes in the field with two helpful features:
- IR-PhotoNotes™ annotation system – captures digital images of the surrounding area to reference conditions or actual location
- Any additional details can also be saved to the file with voice annotation
- Highlight areas that are outside your pre-set “normal” temperature ranges quickly with color alarms
- MATLAB® and LabVIEW® compatibility allows users to integrate camera data, infrared video and images to support R&D analysis.
- New included Fluke Connect SmartView desktop software:
- Optimize thermal images, perform analytics, generate quick, customizable, robust reports and export images to the format of your choice in the cloud
- Pre-calibrated optional lenses:
- Wide angle, 2x telephoto, and 25 micron/macro, let you capture images close up or from a distance
Key Features |
|
| IFOV with standard lens (spatial resolution) | 1.31 mRad |
| Detector resolution | 320 x 240 (76,800 pixels) |
| Field of view | 24 °H x 17 °V |
| Minimum focus distance | 15 cm (approx. 6 in) |
| IFOV with optional telephoto lens | 0.65 mRad |
| Field of view | 12 °H x 9 °V |
| Minimum focus distance | 45 cm (approx. 18 in) |
| IFOV with optional wide-angle lens | 2.62 mRad |
| Field of view | 46 °H x 34 °V |
| Minimum focus distance | 15 cm (approx. 6 in) |
| SuperResolution* | On camera and in software |
| Image sharpening | Yes |
| LaserSharp® Auto Focus | Yes, for consistently in-focus images. Every. Single. Time. |
| Laser distance meter | Yes, calculates distance to the target for precisely focused images and displays distance on screen |
| Advanced manual focus | Yes |
| Streaming video (remote display) | Via USB or WiFi |
| Touchscreen display (capacitive) | 14.4 cm (5.7 in) diagonal landscape color VGA (640 x 480) LCD with backlight |
| Wireless connectivity | Yes, to PC, iPhone® and iPad® (iOS 4s and later), Android™ 4.3 and up, and WiFi to LAN (where available) |
| Fluke Connect™ app compatible | Yes (where available) |
| Fluke Connect™ tool compatible | Yes (where available). Connects wireless to select Fluke Connect™ enabled tools. Five simultaneous connections supported. |
| IR-Fusion® technology | Yes |
| AutoBlend™ mode | Yes |
| Picture-In-Picture (PIP) | Yes |
| Continuous AutoBlend™ | Set AutoBlend™ level across continuum |
| Rugged, ergonomic design for one-handed use | Rotatable (articulating lens) >240 degrees |
| Thermal sensitivity (NETD) | ≤ 0.045 °C at 30 °C target temp (45 mK) |
| Filter mode (NETD improvement) | ≤ 0.03 °C at 30 °C target temp (30 mK) |
| Level and span | Smooth auto and manual scaling |
| Touchscreen adjustable level / span | Yes. Span and level can be easy and quickly set by simply touching the screen. |
| Fast auto toggle between manual and auto modes | Yes |
| Fast auto-rescale in manual mode | Yes |
| Minimum span (in manual mode) | 2.0 °C (3.6 °F) |
| Minimum span (in auto mode) | 3.0 °C (5.4 °F) |
| Built-in digital camera (visible light) | 5 megapixel industrial performance |
| Frame rate | 60 Hz or 9 Hz versions |
| Laser pointer | Yes |
| LED light (torch) | Yes |
| Digital zoom | 2x, 4x, 8x |
Data Storage and Image Capture |
|
| Extensive memory options | Removable micro SD memory card, on-board flash memory, save-to-USB capability, direct download via USB-to-PC connection |
| Image capture, review, save mechanism | One-handed image capture, review, and save capability |
| Post-capture image editing (on camera) | Yes. Conduct on camera analysis for in-field results. |
| Advanced text annotation | Yes. Including standard shortcuts as well as user programmable options. |
| File formats | Non-radiometric (.bmp) or (.jpeg) or fully radiometric (.is2); no analysis software required for non-radiometric (.bmp, .jpg and .avi) files |
| Memory review | Thumbnail view navigation and review selection |
| Software | SmartView® software, Fluke Connect™ (where available), and SmartView® Mobile App – full analysis and reporting software |
| Export file formats with SmartView® software | BMP, DIB, GIF, JPE, JFIF, JPEG, JPG, PNG, TIF, and TIFF |
| Voice annotation | 60 seconds maximum recording time per image; reviewable playback on camera; Bluetooth headset provided |
| IR-PhotoNotes™ | Yes |
| Text annotation | Yes |
| Video recording | Standard and radiometric |
| File formats video | Non-radiometric (MPEG – encoded .AVI) and fully radiometric (.IS3) |
| Remote control and operation (for special and advanced applications) | Yes |
| Auto capture (temperature and interval) | Yes |
Battery |
|
| Batteries (field-replaceable, rechargeable) | Two lithium ion smart battery packs with five-segment LED display to show charge level |
| Battery life | Three hours continuous use per battery pack |
| Battery charge time | 2.5 hours to full charge |
| Battery charging system | Two-bay battery charger or in-imager charging. Optional 12 V automotive charging adapter |
| AC operation | AC operation with included power supply (100 V AC to 240 V AC, 50/60 Hz) |
| Power saving | User selectable sleep and power off modes |
Temperature Measurement |
|
| Temperature measurement range (not calibrated below -10 °C) | ‘-20 °C to +1200 °C (-4 °F to +2192 °F) |
| Accuracy | ± 2 °C or 2 % (at 25 °C nominal, whichever is greater) |
| On-screen emissivity correction | Yes (both value and table) |
| On-screen reflected background temperature compensation | Yes |
| On-screen transmission correction | Yes |
| Color Palettes | |
| Standard palettes | 8: Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted |
| Ultra Contrast™ palettes | 8: Ironbow Ultra, Blue-Red Ultra, High Contrast Ultra, Amber Ultra, Amber Inverted Ultra, Hot Metal Ultra, Grayscale Ultra, Grayscale Inverted Ultra |
General Specifications |
|
| Color alarms (temperature alarms) | High-temperature and low-temperature |
| Infrared spectral band | 7.5 μm to 14 μm (long wave) |
| Operating temperature | -10 °C to +50 °C (14 °F to 122 °F) |
| Storage temperature | -20 °C to +50 °C (-4 °F to 122 °F) without batteries |
| Relative humidity | 10 % to 95 % non-condensing |
| Center-point temperature measurement | Yes |
| Spot temperature | Hot and cold spot markers |
| User-definable spot markers | 3 user-definable spot markers |
| Center box | Expandable-contractible measurement box with MIN-MAX-AVG temp |
| Safety | IEC 61010-1: Overvoltage Category II, Pollution degree 2 |
| Electromagnetic compatibility | IEC 61326-1: Basic EM Environment CISPR11, Group 1, Class A |
| Australian RCM | IEC/61326-1 |
| US FCC | CFR 47, Part 15 Subpart B |
| Vibration | 0.03 g2/Hz (3.8 grms), 2.5g IEC 68-2-6 |
| Shock | 25 g, IEC 68-2-29 |
| Drop | Engineered to withstand 1 meter (3.4 feet) drop with standard lens |
| Size (H x W x L) | 27.3 cm x 15.9 cm x 9.7 cm (10.8 in x 6.3 in x 3.8 in) |
| Weight (battery included) | 1.5 kg (3.3 lb) |
| Enclosure rating | IP54 (protected against dust, limited ingress; protection against water spray from all directions) |
| Warranty | Two-years (standard), extended warranties are available |
| Recommended calibration cycle | Two-years (assumes normal operation and normal aging) |
| Supported languages | Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish |
Thermal Imaging adalah salah satu metode pendeteksian yang meningkatkan visibilitas objek dalam gelap dengan mendeteksi radiasi inframerah dari benda dan menciptakan gambar berdasarkan informasi tersebut.Thermal Imaging, Infrared dan Low-Light Imaging adalah tiga teknologi yang paling sering dipakai dalam penggunaan night vision. Berbeda dengan dua metode lainnya, thermal imaging bekerja di lingkungan tanpa cahaya. Seperti near-infrared illumination, thermal imaging dapat menembus benda-benda gas seperti asap dan kabut. Cara kerja thermal imaging adalah semua benda memancarkan energi inframerah (panas) sebagai fungsi temperature. Energi inframerah yang dipancarkan oleh sebuah objek yang dikenal sebagai heat-imaging.
UpdateJual FLUKE TIX580 INFRARED CAMERA dengan harga murah dan garansi resmi dari distributor. Dapatkan produk terbaik dari merek Fluke dengan spesifikasi lengkap.
Belanja online Thermal Imaging hanya di Kucari dengan kualitas terbaik, harga murah bersaing, bisa COD, Gratis pengiriman wilayah Jakarta dan sekitarnya. Beli sekarang hanya di toko online terpercaya.
Pengiriman ke seluruh Indonesia seperti Jakarta, Bandung, Bekasi, Depok, Cikarang, Tangerang, Lampung, Pontianak, Jogja, Semarang, Solo, Batam, Padang, Pekanbaru, Malang, Surabaya, Medan, Makassar, Balikpapan, Samarinda, Palembang, Riau, Aceh, Manado, NTT, NTB, Papua dan Bali Denpasar.
Specification: FLUKE TIX580 INFRARED CAMERA
|
||||
| Dimensions | ||||
|---|---|---|---|---|
|
||||
