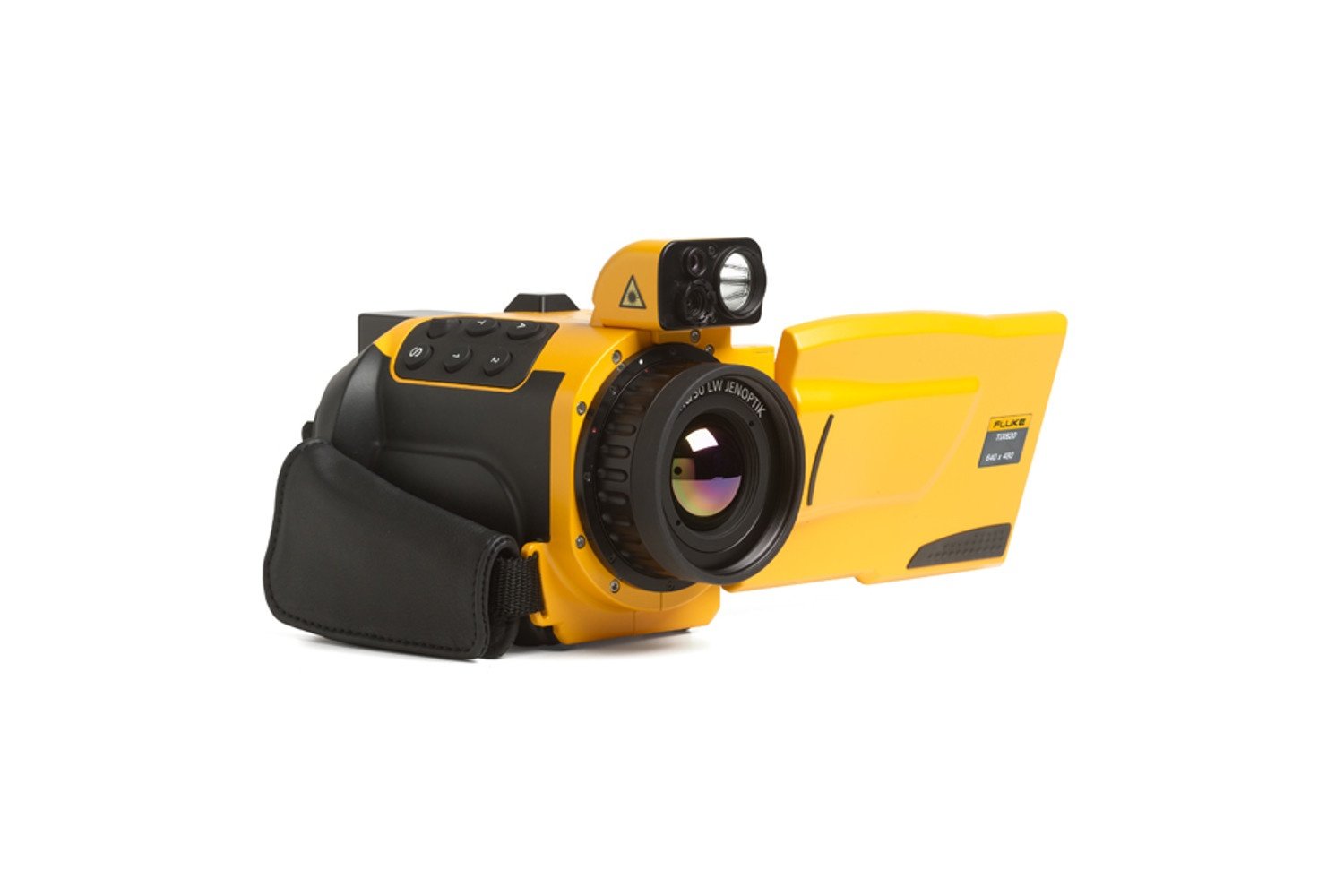

FLUKE TIX620 INFRARED CAMERA
Rp 544.000.000 *Inc. PPN
- Conduct inspections from a safe distance and still get close-in shots with the 32 times on-camera digital zoom.
- Choose the most convenient image transfer protocol for your application: Camera data ports: Image transfer: SD card, USB 2.0, video output DVI-D (HDMI). GigE vision and RS232 available in 2015. SmartView® software: SD card. USB 2.0, GigE Vision and RS232 available in 2015.
Related Products
FLUKE TIX620 INFRARED CAMERA
Find your expert camera. 640 x 480 – at a resolution you can afford
- Conduct inspections from a safe distance and still get close-in shots with the 32 times on-camera digital zoom.
- Choose the most convenient image transfer protocol for your application: Camera data ports: Image transfer: SD card, USB 2.0, video output DVI-D (HDMI). GigE vision and RS232 available in 2015. SmartView® software: SD card. USB 2.0, GigE Vision and RS232 available in 2015.
- Get the sharpest ever IR-Fusion® images with an 8 MP visible light camera.
- Versatile viewing options for in-field viewing of images with viewfinder for outdoor use.
- User defined programmable buttons to personalize for quick access to most used features.
- The only handheld cameras that can be sub-windowed to 240 Hz frame rate for advanced applications (add on option).
Image Quality |
|||
| IFOV (spatial resolution) | 0.85 mRad | ||
| Image resolution (pixel) | 640 x 480 (307,200 pixels) | ||
| Frame rate (@ max. image resolution) | 30 Hz | ||
| SuperResolution & Dynamic SuperResolutin (resolution enhancement) | No | ||
| Subwindowing modes available – subwindowing options are not available on 9 Hz models: (add on at time of order) | Option 1: 384 × 288 | ||
| Field of View (FOV) w/standard 30mm lens | 32.7° x 24.0° | ||
| Thermal sensitivity (NETD) | < 0.04ᵒ C at 30ᵒ C target temp (40 mK) | ||
| Spectral range | 7.5 µm to 14 µm | ||
IR-Fusion® Technology |
|||
| AutoBlend™ mode | Yes | ||
| Viewing modes | Picture-in-picture, continuous blending, color alarms (above and below user defined temperatures) | ||
Focus System |
|||
| LaserSharp® Auto Focus | No | ||
| Auto focus | Yes | ||
| Manual focus | Yes, with the touch of a finger for tighter views | ||
| EverSharp multifocal recording | Yes, Multifocal recording captures images from different focal distances and combines them into one image displaying each object sharply for the best image quality | ||
Temperature Measurement |
|||
| Range | -40 °C to 600 °C (-40 °F to 1112 °F) | ||
| Accuracy | ± 2 K or ± 2 % | ||
| Correction functions | Emissivity (manual or material table) | ||
| Transmissivity, ambient temperature, humidity (option) | |||
Data Storage and Image Capture |
|||
| Image/video storage | SDHC memory card | ||
| Interfaces for image/data transfer | Supported in camera data ports: Image transfer, SD card, USB 2.0, video output DVI-D (HDMI). GigE vision and RS232 | ||
| Supported in SmartView® Software: SD Card | |||
General Specifications |
|||
| Laser pointer | Yes, laser class: 2 | ||
| Laser distance meter | None | ||
| Display | Extra-large 5.6″ color TFT display, 1280 × 800 pixel resolution, Suitable for daylight operation | ||
| Geo-localization | Built-in GPS for geo-referencing | ||
| Digital visible light camera | Up to 8 megapixel resolution for image and video recording | ||
| Digital zoom | Up to 32x digital zoom | ||
| Text annotation | Yes | ||
| Voice annotation | Yes | ||
| Audio | Integrated microphone and loudspeaker for voice annotations | ||
| A/D conversion | 16 bit | ||
| Power supply | External: 12 VDC … 24 VDC Battery: Standard Li-Ion video camera battery |
||
| Replaceable Smart Batteries with LED level indicator | One | ||
| Operating temperature | -25 °C to +55 °C (-13 °F to 131 °F) | ||
| Storing temperature | -40 °C to +70 °C (-40 °F to 158 °F) | ||
| Humidity | Relative humidity 10 % to 95 %, non-condensing | ||
| Shock | Operational: 25G, IEC 68-2-27 | ||
| Vibration | Operational: 2G, IEC 68-2-6 | ||
| Protection class | IP54 | ||
| Ergonomics | Camcorder | ||
| Viewfinder | None | ||
| Dimensions (with standard 1.0/20 mm lens) | 220 x 125 x 155 mm (8.6 x 4.9 x 6.1 in) | ||
| Weight (with standard 30 mm lens) | 1.5 kg (3.3 lb) | ||
| Measurement functions (selection) | Multiple measurement spots and Regions of Interest, hot/cold spot detection, isotherms, differences | ||
| Automatic functions (selection) | Focus, image, level, range, NUC, lens recognition, image optimization, alarm sequence | ||
| SmartView® software | Yes | ||
| Supported languages | Czech, Dutch, English, Finnish, French, German, Hugarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese and Turkish | ||
Thermal Imaging adalah salah satu metode pendeteksian yang meningkatkan visibilitas objek dalam gelap dengan mendeteksi radiasi inframerah dari benda dan menciptakan gambar berdasarkan informasi tersebut.Thermal Imaging, Infrared dan Low-Light Imaging adalah tiga teknologi yang paling sering dipakai dalam penggunaan night vision. Berbeda dengan dua metode lainnya, thermal imaging bekerja di lingkungan tanpa cahaya. Seperti near-infrared illumination, thermal imaging dapat menembus benda-benda gas seperti asap dan kabut. Cara kerja thermal imaging adalah semua benda memancarkan energi inframerah (panas) sebagai fungsi temperature. Energi inframerah yang dipancarkan oleh sebuah objek yang dikenal sebagai heat-imaging.
UpdateJual FLUKE TIX620 INFRARED CAMERA dengan harga murah dan garansi resmi dari distributor. Dapatkan produk terbaik dari merek Fluke dengan spesifikasi lengkap.
Belanja online Thermal Imaging hanya di Kucari dengan kualitas terbaik, harga murah bersaing, bisa COD, Gratis pengiriman wilayah Jakarta dan sekitarnya. Beli sekarang hanya di toko online terpercaya.
Pengiriman ke seluruh Indonesia seperti Jakarta, Bandung, Bekasi, Depok, Cikarang, Tangerang, Lampung, Pontianak, Jogja, Semarang, Solo, Batam, Padang, Pekanbaru, Malang, Surabaya, Medan, Makassar, Balikpapan, Samarinda, Palembang, Riau, Aceh, Manado, NTT, NTB, Papua dan Bali Denpasar.
Specification: FLUKE TIX620 INFRARED CAMERA
| Weight | 2 kg |
|---|
