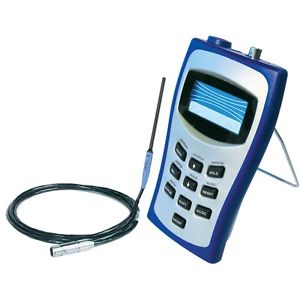

FW Bell 5180 Portable Digital Gauss Meter

FW Bell 5180 Portable Digital Gauss Meter hall effect portable Gauss/Tesla-Meters represent the recent design from the world leader in magnetic AC & DC measuring equipment. This new design incorporates the use of digital signal processing technology making it the world’s first hand-held gaussmeter to have a digital signal processor (DSP) on board.

F.W.Bell’s exclusive Dynamic Probe Connection allows measurements from 0 to 30 KG with basic accuracy of 1%. Typical applications include: Magnetic Testing & Classification, DC & AC Motor Testing, Magnetic Field Mapping, Residual Field Testing, Relay and Solenoid Inspection. All instruments are CE Compliant.

The 5100 Series Hand-Held Gauss/Tesla-Meters’ built-in software eliminates the need for complex calibration procedures. User prompts on the custom formatted LCD allow fast, simple push button operation. All models (5170 & 5180) come equipped with a detachable transverse or axial probe, zero gauss chamber, instruction manual, hard carrying case, four AA batteries and Adaptor. Axial, ultra thin transverse and other style probes are available as options.

Key features also include :

Auto Zero: Yes, the best accuracy in it’s class
Data logging capability, Min/Max/Peak Hold
100X lower resolution (with low-field probe), Auto Range
Frequency Response 2X better than Competitor, relative Mode
The only handheld meter with DSP, Universal Serial Bus Interface
4 AA batteries or external adapter
size  (length*width*height): 6.9″*3.9″*1.44″

Key features for 5180 also include :

Auto Zero: Yes, Basic accuracy: 1%
Min/Max: Yes, True RMS: Yes, Auto Range: YES, Sampling Rate: 4/sec
True Peak hold: Yes, Relative Mode: Yes, Analog output: 200K samples/sec, Communication Port: USB(1 samples/sec)
Frequency Bandwidth: DC-30KHZ, Ranges: Low Range: 300 G, Mid Range: 3 KG, High Range: 30 KG, Ultra Low Range(Low-field probe only): 1G
Resolution: Low Range: 0.1 G (10 uT), Mid Range: 1.0 G (100 uT ), High Range: 10 G(1 mT), Ultra Low Range(Low-field probe only): 1mG(0.1 uT)
Display: 3 1/2 digit LCD display, Readings: Either Gauss, Tesla or Ampere/Meters
Analog Output; +/-3V F.S., Communication Port: USB(1 Samples/sec)
Operating Temperature 0oC To + 50oC & Storage: -20oC To +60oC
4 AA batteries or external adapter
size (length*width*height): 6.9″(175.26mm)*3.9″(99.06mm)*1.44″(36.57mm)
Complette Set:  Gaussmeter,  4″ Transverse Probe,  NA-Power Adaptor,  Manual on CD,  Zero Gauss Chamber,  Hard Carrying Case.
