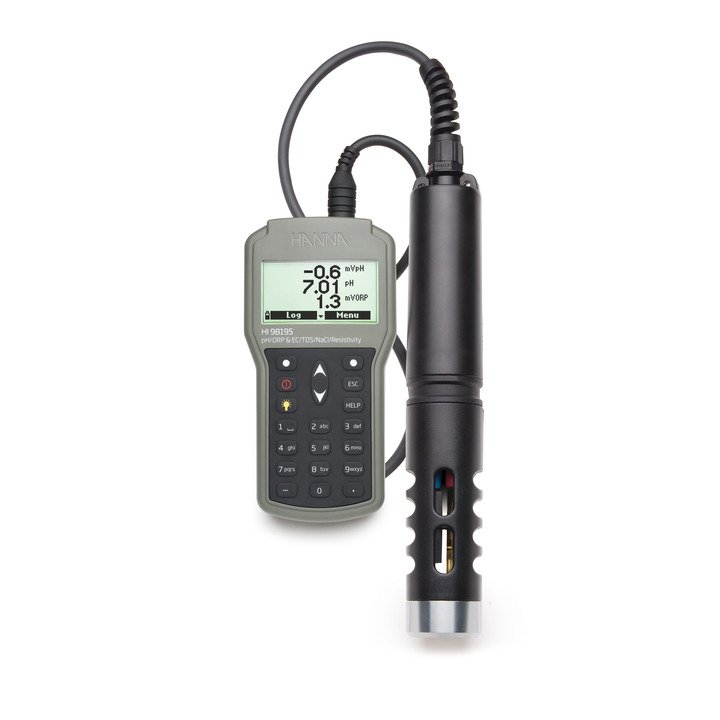

HANNA HI98195 Portable pH/ ORP/ EC/ TDS/ Salinity Meter

HANNA HI98195 Portable pH/ ORP/ EC/ TDS/ Salinity Meter is a waterproof portable logging multiparameter meter that monitors up to 10 different water quality parameters including 5 measured and 5 calculated. The microprocessor based multi-sensor probe allows for the measurement of key parameters including pH, ORP, conductivity, and temperature.

The probe transmits readings digitally to the meter, where data points can be displayed and logged. The complete system is simple to setup and easy to use. The HI98195 is supplied with all necessary accessories and packaged in a durable carrying case.

Specifications :

pH Range     0.00 to 14.00 pH
pH Resolution     0.01 pH
pH Accuracy     ±0.02 pH
pH Calibration     automatic one, two, or three points with automatic recognition of five standard buffers (pH 4.01, 6.86, 7.01, 9.18, 10.01) or one custom buffer
mV Range     ±600.0 mV
mV Resolution     0.1 mV
mV Accuracy     ±0.5 mV
ORP Range     ±2000.0 mV
ORP Resolution     0.1 mV
ORP Accuracy     ±1.0 mV
ORP Calibration     automatic at one custom point (relative mV)
EC Range     0 to 9999 µS/cm; 0.000 to 200.0 mS/cm (absolute EC up to 400.0 mS/cm)
EC Resolution     auto-ranging: 1 µS/cm from 0 to 9999 µS/cm; 0.01 mS/cm from 10.00 to 99.99 mS/cm; 0.1 mS/cm from 100.0 to 400.0 mS/cm; auto-ranging (fixed mS/cm): 0.001 mS/cm from 0.000 to 9.999 mS/cm; 0.01 from 100.0 to 400.0 mS/cm ; manual: 1 µS/cm; 0.001 mS/cm; 0.01
EC Accuracy     ±1% of reading or ±1 µS/cm whichever is greater
EC Calibration     automatic single point, with six standard solutions (84 µS/cm, 1413 µS/cm, 5.00 mS/cm, 12.88 mS/cm, 80.0 mS/cm, 111.8 mS/cm) or custom point
TDS Range     0 to 9999 ppm (mg/L); 0.000 to 400.0 ppt (g/L) (maximum value depends on TDS factor)
TDS Resolution     manual: 1 ppm (mg/L); 0.001 ppt (g/L); 0.01 ppt (g/L); 0.1 ppt (g/L); 1 ppt (g/L); auto-ranging: 1 ppm (mg/L) from 0 to 9999 ppm (mg/L); 0.01 ppt (g/L) from 10.00 to 99.99 ppt (g/L); 0.1 ppt (g/L) from 100.0 to 400.0 ppt (g/L); auto-ranging (fixed ppt):
TDS Accuracy     ±1% of reading or ±1 ppm (mg/L), whichever is greater
TDS Calibration     based on conductivity calibration
Resistivity Range     0 to 999999 Ω•cm; 0 to 1000.0 kΩ•cm; 0 to 1.0000 MΩ•cm
Resistivity Resolution     dependent on resistivity reading
Resistivity Calibration     based on conductivity calibration
Salinity Range     0.00 to 70.00 PSU
Salinity Resolution     0.01 PSU
Salinity Accuracy     ±2% of reading or ±0.01 PSU whichever is greater
Salinity Calibration     based on conductivity calibration
Seawater σ Range     0.0 to 50.0 σt, σ₀, σ₁₅
Seawater σ Resolution     0.1 σt, σ₀, σ₁₅
Seawater σ Accuracy     ±1 σt, σ₀, σ₁₅
Seawater σ Calibration     based on conductivity calibration
Atmospheric Pressure Range     450 to 850 mm Hg; 17.72 to 33.46 in Hg; 600.0 to 1133.2 mbar; 8.702 to 16.436 psi; 0.5921 to 1.1184 atm; 60.00 to 113.32 kPa
Atmospheric Pressure Resolution     0.1 mm Hg; 0.01 in Hg; 0.1 mbar; 0.001 psi; 0.0001 atm; 0.01 kPa
Atmospheric Pressure Accuracy     ±3 mm Hg within ±15°C from the temperature during calibration
Atmospheric Pressure Calibration     automatic at one custom point
Temperature Range     -5.00 to 55.00 °C, 23.00 to 131.00 °F, 268.15 to 328.15 K
Temperature Resolution     0.01 K, 0.01 °C, 0.01 °F
Temperature Accuracy     ±0.15 °C; ±0.27 °F; ±0.15 K
Temperature Calibration     automatic at one custom point
Temperature Compensation     automatic from -5 to 55 °C (23 to 131 °F)
Logging Memory     45,000 records (continuous logging or log-on-demand of all parameters)
Logging Interval     one second to three hours
PC Connectivity     USB to PC with HI9298194 Hanna software installed
Battery Type/Life     1.5V AA batteries (4) / approximately 360 hours of continuous use without backlight (50 hours with backlight)
Environment     0 to 50°C (32 to 122°F); RH 100% (IP67)
Dimensions     185 x 93 x 35.2 mm (7.3 x 3.6 x 1.4”)
Weight     400 g (14.2 oz.)

Includes :

(5) HI7698195 probe
(1) HI7698194-1 pH/ORP sensor
(1) HI7698194-3 EC sensor
(5) HI 76981952 Probe maintenance kit (O-rings for sensors syringe with grease to lubricate the O-rings)
(1) HI9298194 Hanna PC software
(1) HI920015 micro USB cable
(4) 1.5V AA batteries
(1) Instruction manual
(1) Quick start guide
(1) Quality certificate
(1) Rugged carrying case with custom thermoformed insert.
