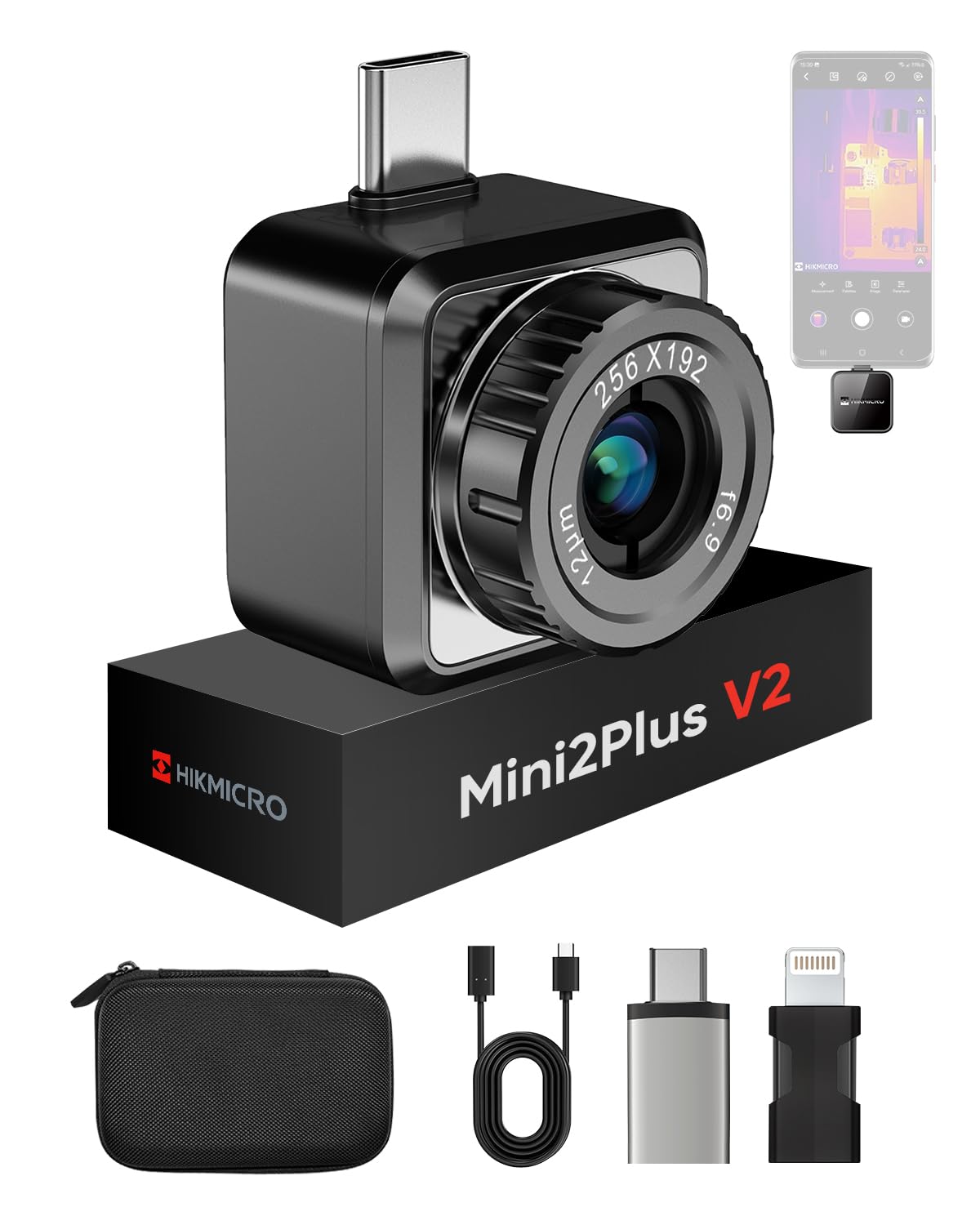

Hikmicro Mini 2 Plus V2 Thermal Imaging Camera For Smartphone
Login lihat harga
Mini2Plus V2 adalah kamera termal ponsel pintar serbaguna dengan fokus manual untuk memeriksa rumah dan memecahkan masalah HVAC. Kamera ini menawarkan resolusi termal tinggi, peningkatan citra SuperIR, dan pembacaan suhu yang akurat. Kompatibel dengan perangkat iOS dan Android, kamera ini merupakan alat yang praktis dan andal untuk pencitraan termal.
Related Products
Mini2Plus V2 adalah kamera termal ponsel pintar serbaguna dengan fokus manual untuk memeriksa rumah dan memecahkan masalah HVAC. Kamera ini menawarkan resolusi termal tinggi, peningkatan citra SuperIR, dan pembacaan suhu yang akurat. Kompatibel dengan perangkat iOS dan Android, kamera ini merupakan alat yang praktis dan andal untuk pencitraan termal.
Fitur Hikmicro Mini 2 Plus V2 Thermal Imaging Camera For Smartphone
- Thermal resolution: 256 × 192 (49 152 pixels)
- SuperIR image enhancement technology on live view and captured images
- 3-in-1: USB-C (iOS ＆ Android), Lightning (Includes a Lightning to USB-C adapter)
- NETD: ＜40 mK (@ 25 °C, F#=1.0)
- Accuracy: ±2 ℃ (-20 °C to 100 °C) ; ±2 % (100 °C to 400 °C)
- 24 g Weight
Spesifikasi Hikmicro Mini 2 Plus V2 Thermal Imaging Camera For Smartphone
| Infrared Image | |
| IR Resolution | 256 × 192 (49,152 pixels) |
| SuperIR | Yes, on captured images and live view |
| NETD | <40 mK (@ 25 °C, F#=1.0) |
| Image Frequency | 25 Hz |
| Detector Pitch | 12 μm |
| Spectral Range | 7.5 to 14 μm |
| Focal Length | 6.9 mm |
| F-number | F1.0 |
| Field of View (FOV) | 25° × 18.8° |
| Min. Focus Distance | 0.1 m (0.33 ft) |
| Focus Mode | Manual Focus |
| Image Display | |
| Color Palettes | White Hot, Black Hot, Rainbow, Ironbow, Sepia, Color, Ice Fire, Rain, Red Hot, Green Hot, Dark Blue, Combined |
| Image Modes | Thermal，Visual( with the phone camera) |
| Measurement and Analysis | |
| Object Temperature Range | -20°C to 400°C(-4°F to 752°F ) |
| Accuracy | Max (±2°C/3.6°F, ±2%), for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F) |
| Measurement Tools | Center Spot, Hot Spot, Cold Spot User-definable: 3 spots, 3 rectangles and 1 line. |
| Level and Span Mode | Auto/Manual |
| General | |
| Power Consumption | 360 mW |
| Interface | USB-C Android, USB-C iOS, Lightning iOS (Includes a Lightning to USB-C adapter) |
| Device Compatibility | iOS (version 14 and later), Android (version 7 and later) smartphones and tablets, or Windows devices |
| Software Compatibility | HIKMICRO Viewer app for iOS and Android, HIKMICRO Analyzer software for Windows |
| Protection Level | IP40 |
| Drop Test Height | 1 m (3.28 ft) |
| Working Temperature Range | -10°C to 50°C (14°F to 122°F ) |
| Storage Temperature Range | -20°C to 60°C (-4°F to 140°F ) |
| Weight | Approx. 24 g (0.053 lb) |
| Dimension | 26.6 × 26.6 × 25 mm (1.05 × 1.05 × 0.98 in) |
