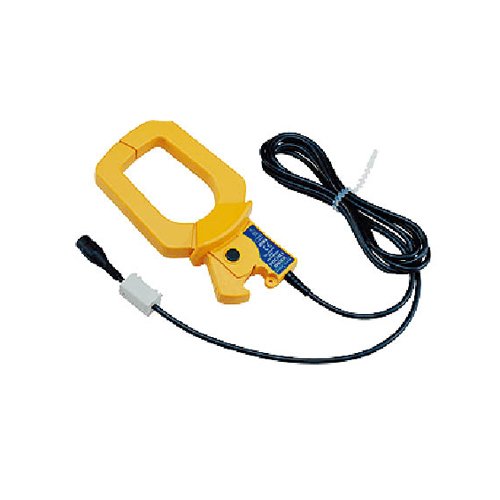

Hioki 9669 Clamp on sensor


  • Rated Input Current: 1000 A AC
  • Rated Output Voltage: 0.5 V AC
  • Core Jaw Diameter: Ø55mm (2.17 in)
  • Designed with a safety barrier to protect the user from being in direct contact with live conductors

Rp5.382.000

Hioki 9669 Clamp on sensor adalah yang terbaik perangkat-in-class untuk digunakan dengan meteran listrik, PQAs dan HiCorders Memory. Hioki 9669 adalah output sensor tegangan klem 1000A AC untuk mengukur arus beban besar.

Features Hioki 9669 Clamp on sensor

  • Rated Input Current: 1000 A AC
  • Rated Output Voltage: 0.5 V AC
  • Core Jaw Diameter: Ø55mm (2.17 in)
  • Designed with a safety barrier to protect the user from being in direct contact with live conductors



Specification Hioki 9669 Clamp on sensor

Rated Primary Current AC 1000 A
Output Voltage AC 500 mV f.s. (AC 0.5 mV/A)
Amplitude Accuracy ±1.0 % rdg. ±0.01 % f.s. (45 to 66 Hz, f.s.= rated primary current)
Phase Accuracy ±1 deg. (at 45 Hz to 5 kHz)
Max. Allowable Input AC 1000 A continuous (45 to 66 Hz)
Frequency Characteristics 40 Hz to 5 kHz: ± 2.0% (Add to amplitude accuracy)
Max. Rated Voltage to Earth AC 600 V rms (insulated wire)
Core Jaw Diameter φ55mm(2.17in) dia.
Dimensions Mass 99.5 mm (3.92 in)W × 188 mm (7.40 in)H × 42 mm (1.65 in)D, Cord length: 3 m (9.84 ft), 590 g (20.8 oz)



Jual Hioki 9669 Clamp on sensor dengan harga murah, diskon dan cari produk HIOKI lainnya dari kategori Clamp Meter. Gratis biaya pengiriman untuk wilayah Jakarta dan dapat dikirim ke seluruh Indonesia. Dapatkan hanya di toko online Kucari.com, belanja online mudah dan aman.
