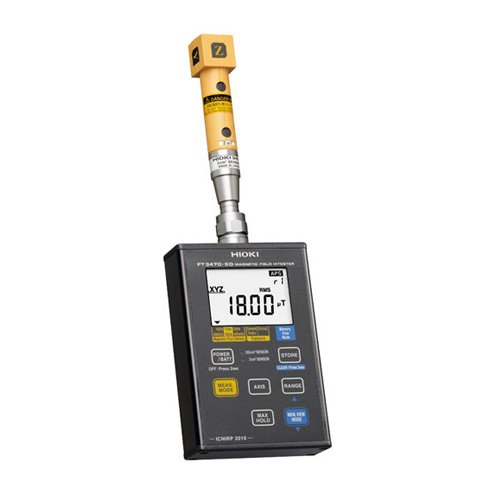

Hioki FT3470-52 Magnetic Field HiTESTER


  • Test environmental magnetic fields, magnetic fields in the vicinity of electrical power equipment and compliance testing of household appliances
  • Measurement underneath transmission lines with three-height averaging memory function
  • Long-term measurement and waveform observation using Hioki’s Memory HiCorder MR8880-20 (sold separately)
  • Storage of up to 99 measurement data points on built0in memory
  • Bundled application software can be used to check measurement data on PC
  • Level output – RMS values can be recorder with a recorder or logger

Hioki FT3470-52 Magnetic Field HiTESTER Hioki medan magnet meter dirancang untuk mengukur kepadatan fluks magnetik dan tingkat paparan medan magnet, dan dapat digunakan untuk menilai kesesuaian dengan ICNIRP 2010 dan IEC / EN62233 dan dalam penelitian tentang paparan medan magnet. Kerapatan fluks FT3470-52 tindakan magnetik dan paparan medan magnet yang dihasilkan oleh produk yang diproduksi di lokasi pelanggan atau yang dihasilkan oleh perangkat di lingkungan pelanggan, dan dibundel dengan 2 sensor.

Hioki FT3470-52 Magnetic Field HiTESTER

  • Test environmental magnetic fields, magnetic fields in the vicinity of electrical power equipment and compliance testing of household appliances
  • Measurement underneath transmission lines with three-height averaging memory function
  • Long-term measurement and waveform observation using Hioki’s Memory HiCorder MR8880-20 (sold separately)
  • Storage of up to 99 measurement data points on built0in memory
  • Bundled application software can be used to check measurement data on PC
  • Level output – RMS values can be recorder with a recorder or logger
  • Waveform output – observe magnetic field waveforms by connecting to an oscilloscope or recorder
  • Simple operation
  • User-selectable display units: T (tesla), A/M (SI unit of magnetic field strength) and G (Gauss)
  • Two different sized sensors

Hioki FT3470-52 Magnetic Field HiTESTER

Magnetic flux density 10Hz to 400kHz / 10Hz to 2kHz / 2kHz to 400kHz
Exposure level General Public/ Occupational
Indicated axes x, y, z/R (measured axes: X,Y,Z)
Measurement method True RMS
Range switching Auto/ manual
Display update rate Slow function off: 250msec.
Slow function on: 2sec.
(Slow function: Functionality for applying the 1-sec RMS value integration time required by IEC/EN 62233)
Crest factor 3 or less
But exposure level (occupational) for r1 is 1.45 or less.
Function Switching magnetic flux density (T, A/m, G), Slow function, Maximum value hold, Memory function (99 measurements), Auto power off, Buzzer sound
Display update rate 250 ms (slow function off)/approx. 2 s (slow function on)
Interface USB 1.1
Environment Storage -10 to 50°C, 80% RH or less (no condensation)
Operating 0 to 40˚C, 80% RH or less (no condensation)
Power supply Size AA alkaline batteries (LR6) × 4 or AC adapter
Period of guaranteed accuracy 1 year
Battery life Approx. 10 hour
Dimensions & mass 100(W)×150(H)×42(D) mm, 870 g (including batteries)
Applicable standards Safety EN61010-1:2001
EMC EN61326:1997+A1:1998+A2:2001+A3:2003
EN61000-3-2:2000
EN61000-3-3:1995+A1:2001





Jual Hioki FT3470-52 Magnetic Field HiTESTER dengan harga murah, diskon dan cari produk Hioki lainnya dari kategori Magnetic. Gratis biaya pengiriman untuk wilayah Jakarta dan dapat dikirim ke seluruh Indonesia. Dapatkan hanya di toko online Kucari.com, belanja online mudah dan aman.
