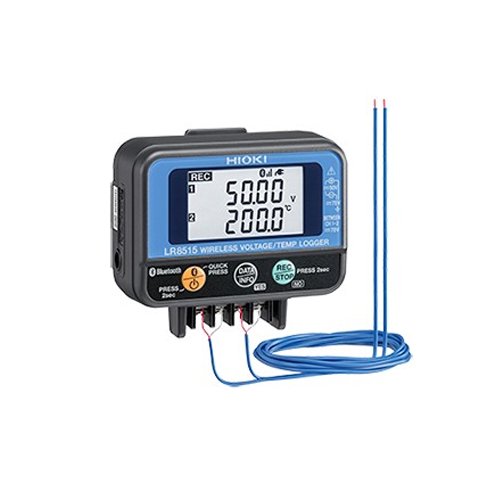

Hioki LR8515 Wireless Voltage-Temp Logger


  • A single device to measure everything from the minute voltages of pyranometers or heat flow sensors to battery voltage to temperature
  • Compact, 2-channel model fits where other devices do not
  • Download measurement data to a tablet or computer with Bluetooth wireless technology or capture in real time with the LR8410
  • Three-way power (AC adapter, AA alkaline batteries, or external 5 to 13.5 V power supply)
  • Store 500,000 data points per channel
  • Wireless Logger Collector App can be downloaded from the Google Play store

Hioki LR8515 Wireless Voltage-Temp Logger menyediakan kemudah, koleksi nirkabel dari berbagai jenis data, termasuk masukan tegangan dan jenis termokopel K dan T, semua dalam satu perangkat.

Hioki LR8515 Voltage / penebang Suhu adalah penebang data berkecepatan tinggi untuk merekam beberapa saluran tegangan, suhu, ketahanan atau kelembaban sinyal, beberapa model memberikanisolasi lengkap antara saluran dan resistance suara yang kuat.

Features Hioki LR8515 Wireless Voltage-Temp Logger

  • A single device to measure everything from the minute voltages of pyranometers or heat flow sensors to battery voltage to temperature
  • Compact, 2-channel model fits where other devices do not
  • Download measurement data to a tablet or computer with Bluetooth wireless technology or capture in real time with the LR8410
  • Three-way power (AC adapter, AA alkaline batteries, or external 5 to 13.5 V power supply)
  • Store 500,000 data points per channel
  • Wireless Logger Collector App can be downloaded from the Google Play store

Specifications Hioki LR8515 Wireless Voltage-Temp Logger

Functionality [Used as standalone product (Data collected manually) ]
Windows PC or Windows tablet (CD-R with software included)
Android smartphone or Android tablet terminal
(Software can be downloaded free of charge from Google Play.)
*Communication range varies with the performance of the computer or tablet (up to a line-of-sight distance of roughly 30 m)
[Used as logging module (Real-time measurement) ]
Device can be used as an LR8410 logging module to record and display data in real time and to control up to 7 units, Communication distance: 30 m
Number of channels 2 ch (isolated; select voltage of thermocouple for each channel), Input terminals: M3 screw type terminal block
Measurement items Voltage/ Thermocouple (K, T)
Maximum input voltage ±50 V DC, Max. inter-channel voltage 70 V DC
Measurement range [Voltage] ±50 mV to ±50 V , Max. resolution 0.01 mV
[Thermocouple] -200 ˚C to 999.9 ˚C, Thermocouples (K, T), Max. resolution 0.1 ˚C
Measurement accuracy [Voltage] ±0.05 mV (50 mV range)
[Thermocouple] ±0.8 ˚C (Thermocouple K -100 ˚C to 999.9 ˚C)
*Reference junction compensation: Switchable between internal and external
*Reference junction compensation accuracy: ±0.5 ˚C
(When using internal compensation, add to thermocouple measurement accuracy.)
*Temperature characteristics: Add (measurement accuracy × 0.1) / ˚C to measurement accuracy.
Display items Measurement value, date, time, number of recorded data, maximum value, minimum value, and average value
Functions Alarm, Scaling, Recording operation hold function, Erroneous operation prevention, Comment recording function, Power saving function, Authentication function, Free run
Recording [Capacity] 500,000 data items for each channel [Mode] Instantaneous value [Interval] 0.1 to 30 sec, 1 to 60 min, 16 selections
Power source AC Adapter Z2003 (AC100 V to 240 V, 50 Hz/60 Hz), AA alkaline batteries (LR6) ×2, External power DC5 V to 13.5 V (can also be supplied from USB bus power, with a conversion cable)
Continuous operating time ([Capacity] 500,000 data items for each channel) (23˚C) 2.5 months (Recording interval of 1 min, Bluetooth® OFF), 7 days (Recording interval of 1 sec, Bluetooth® ON), 2 days (Recording interval of 0.1 sec, during real-time measurement with the LR8410)
Dimensions and mass 85 mm (3.35 in) W × 75 mm (2.95 in) H × 38 mm (1.50 in) D, 126 g (4.4 oz) (Not including the battery)
Accessories CD-R ×1 (Instruction Manual, Logger Utility, Wireless Logger Collector), Measurement Guide ×1, Caution for Using Radio Waves × 1, AA alkaline batteries (LR6) ×2



Jual Hioki LR8515 Wireless Voltage-Temp Logger dengan harga murah, diskon dan cari produk HIOKI lainnya dari kategori Voltage Logger. Gratis biaya pengiriman untuk wilayah Jakarta dan dapat dikirim ke seluruh Indonesia. Dapatkan hanya di toko online Kucari.com, belanja online mudah dan aman.
