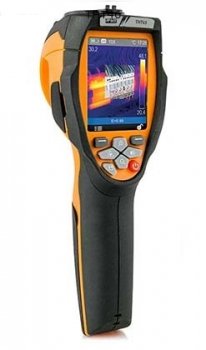

HT Instruments THT46 Thermal Imager Camera

HT Instruments THT46 Thermal Imager Camera is an absolute innovation in the sector of thermal cameras, both for the advanced prescriptions typical of a high-level thermal camera and for its reduced size. THT46 is provided with IR sensor with resolution 160x120pxl which makes it the ideal device for maintenance operations and everyday analyses.

Peculiarity of this device is its LCD colour display, with high brightness ans its drop-down menu, very easy to use, which allow a simple programming by means of a keypad. This device has a wide temperature range (350°C) and saves thermal images in standard JPG format and visual images (PiP functions) inside a micro SD card and can transfer the data onto the PC through its USB interface. Recording of IR videos is also available.

This thermal camera is the ideal solution for detecting electric problems, checking mechanical parts, analyzing hydraulic systems, forced ventilation, etc. This thermal camera is also provided with SPAN function (creation of a temperature range of interest) and with the automatic setting of emissivity with a preset table of materials.

THT46 (160 x 120 px) is a very compact thermal imaging camera with simple operation and versatile functions for the “basic” measurements in the world of thermography. More than 2,000 thermal images can be stored on the included 8 GB micro SD card to allow a complete reporting with pictures and voice notes. To quickly and easily can be an analysis!

Features :

Infrared temperature measurement ranging from -20°C to 350°C
Built-in photo camera for a visual image
PiP fusion function
3 selectable measuring cursors
Table with emissivity values of common material
4 standard colour palettes
Electronic zoom x1-x32
Automatic detection of hot/cold spots of the image
Storage of JPG images on external micro SD card
IR sensor resolution: 80x80pxl (THT45), 160x120pxl (THT46)
USB port for PC connection and image transfer
MPEG4 video recording on micro SD card
Video and microphone output
Built-in laser pointer and illuminator
Rechargeable Li-ION battery
Analysis and printing of images with the dedicated software provided

applications of the digital thermal camera are:
Predictive and preventive maintenance of the electrical and mechanical appliances
Monitoring of the temperature of working processes
Maintenance and troubleshooting on forced ventilation ducts
Domestic/industrial use in troubleshooting environmental insulation problems
Safety problems

What’s in the Box :

(1) Focal lens 9mm
(1) Li-ION rechargeable battery
(1) Battery charger + universal plugs
(1) Micro SD card 8GB
(1) USB cable
(1) Video cable
(1) Earphone set
(1) Carrying bag
(1) Wrist strap
(1) THTLink Windows software
(1) ISO9000 calibration certificate
(1) Quick reference guide
(1) User manual on CD-ROM
