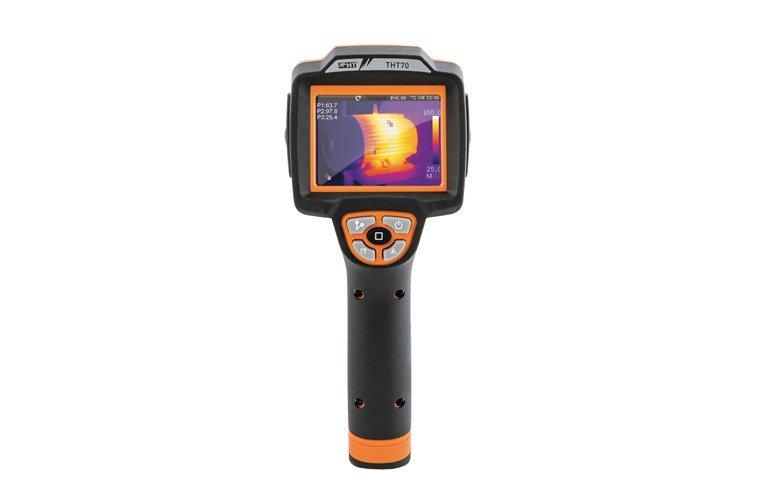

HT Instruments THT70 Thermal Imager Camera

HT Instruments THT70 Thermal Imager Camera is a powerful user-friendly infrared thermal camera designed for detailed analysis to be performed by thermography operators. The instrument’s core is the icon structure menu available through a capacitive TFT high brightness touchscreen LCD allowing really intuitive operations with finger touch selections. THT47 saves thermal and visual images into micro-SD cards under a standard JPG format also allowing data transfer to PC via USB interface.

Live active IR data video recording is also available. THT47 has an IR sensor with optimum resolution (160x120pxl) which makes it perfectly suitable for preventive maintenance operations on any industrial application. The instrument has a wide temperature range (max 400°C) and a lot of internal features such as the possibility to perform advanced analysis including spots, lines, areas and isothermal on each image. This instrument is ideal to check mechanical devices, detect electric problems, check hydraulic systems, verify forced ventilation circuits, etc.

Features :

Measurement range from -20°C to 400°C
Readout in °C, °F, °K
Wide color LCD display with capacitive touch-screen
8 color standard palette
10 customized color palette
Manual image focusing
Selectable emissivity values
Integrated emissivity table of most common materials
Correction by reflection temperature, distance and relative humidity
3 movable cursors
Laser pointer (Class 2)
Integrated illuminator
Integrated visible image camera
Advanced analysis: Spot, Lines, Areas and Isotherms
Alarm thresholds on temperature
Resolution of IR sensor: 388x284pxl
Fusion PiP feature to combine infrared and visible images
Voice annotation and text notes
IR pictures saved on SD card under JPG format
IR videos saved on SD card under MPEG4 format
Recording real-time IR videos with USB PC connection
Video output (PAL/NTSC)
Micro SD card memory
Rechargeable Li-ION battery
USB port for PC connection

What’s In The Box :

Standard lens 22 mm f/1.0
Optional lenses 11 / 38 mm
Micro SD Card
Rechargeable Li-ION Battery
USB cable
Video cable
AC/DC power/rechargeable unit
Headset + Microphone
Usage manual
Hard carrying case
Battery charger
Tripod adapter
Hood
