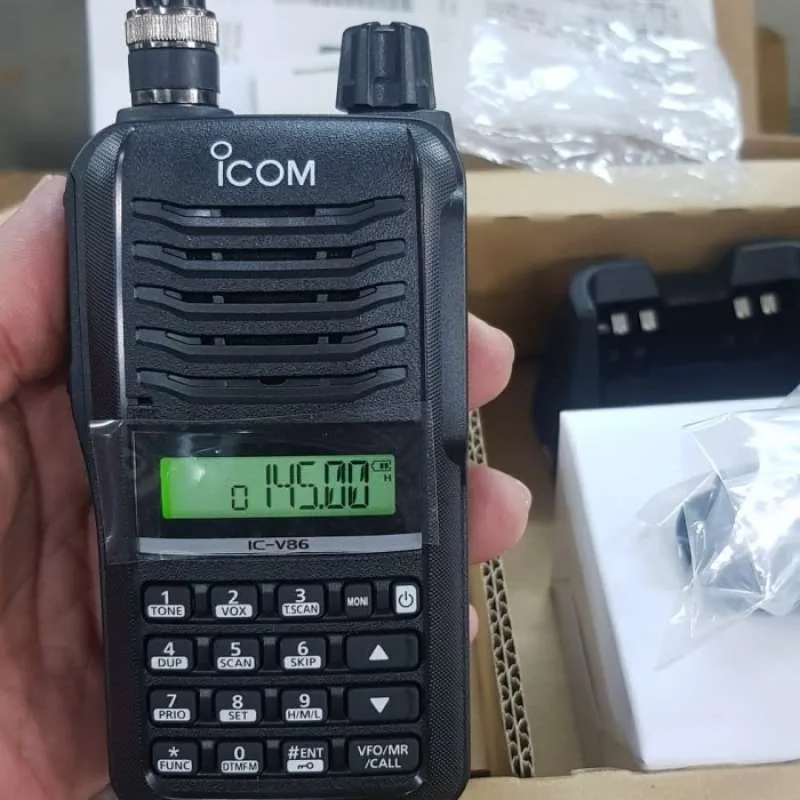

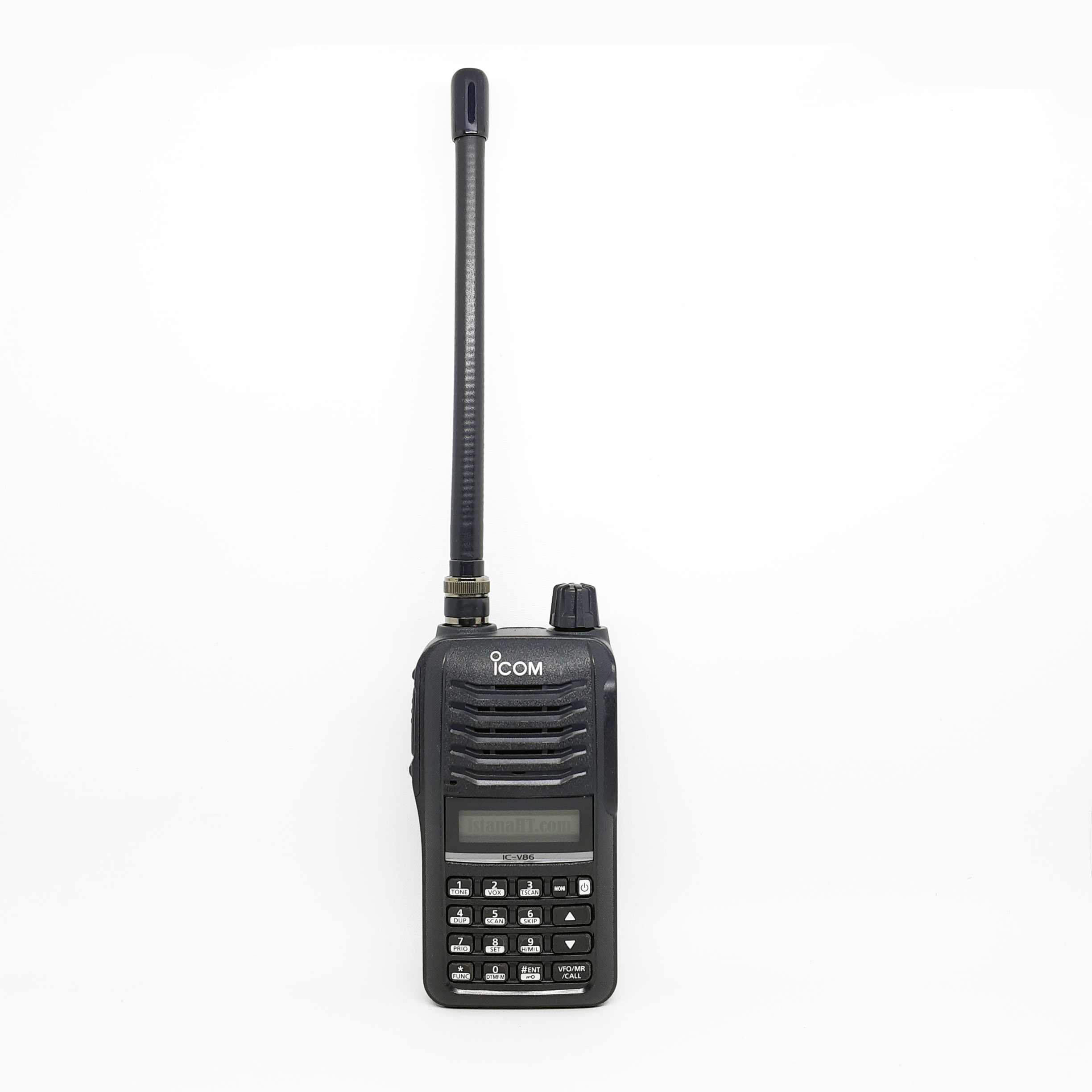

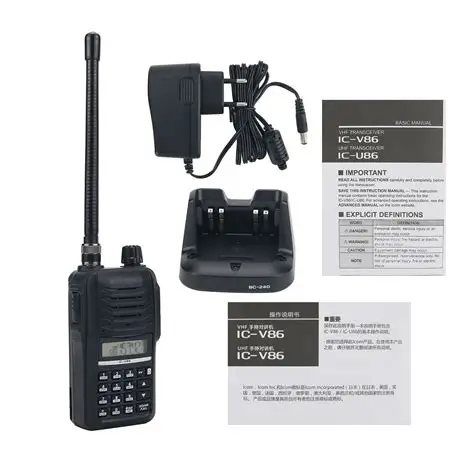

Icom IC-V86 Handie Talkie VHF 136 -174 MHz
Rp 2.850.000 *Inc. PPN
- Output 7 W dan Audio 1500 mW
- Audio yang kuat memudahkan penerimaan di lingkungan berisik atau saat berada di kendaraan.
- Fitur memori banyak & scan – cocok untuk amatir radio yang ingin menyimpan banyak frekuensi atau modul repeater.
- Konstruksi tangguh, cocok digunakan lapangan atau kondisi outdoor yang menuntut.
- Daya tahan baterai 19 jam.
Related Products
Icom IC-V86 adalah handheld transceiver single-band VHF (2 m band) yang menawarkan performa andal dengan output hingga 7 W, audio kuat, bodi yang kokoh, serta fitur yang cukup lengkap untuk komunikasi FM analog.
Unit ini cocok untuk pengguna amatir radio (ham), kegiatan lapangan, atau komunikasi profesional yang membutuhkan daya dan keandalan lebih dari HT biasa.
Fitur Icom IC-V86
- Output 7 W dan Audio 1500 mW
- Audio yang kuat memudahkan penerimaan di lingkungan berisik atau saat berada di kendaraan.
- Fitur memori banyak & scan – cocok untuk amatir radio yang ingin menyimpan banyak frekuensi atau modul repeater.
- Konstruksi tangguh, cocok digunakan lapangan atau kondisi outdoor yang menuntut.
- Daya tahan baterai 19 jam.
Spesifikasi Icom IC-V86
General
| IC-V86 | IC-U86 | ||
|---|---|---|---|
| Frequency range (TX/RX guaranteed range) |
TX: 144–148 MHz RX: 136–174 MHz |
TX: 430–450 MHz RX: 400–472 MHz |
|
| Type of emissions | F2D, F3E (FM, FM-N) | ||
| Number of channels | 207 channels (200 memory channels, 1 call channel and 6 scan edges) | ||
| Antenna impedance | 50Ω | ||
| Power supply requirement | 7.5V DC | ||
| Operating temperature range | –20 ˚C to +60 ˚C, –4 °F to +140 °F | ||
| Frequency stability | ±2.5ppm (–20 ˚C to +60 ˚C, –4 °F to +140 °F) | ||
| Current drain(For the transceiver with a “U” mark on the serial number label) | TX (EX Hi/Hi/Mid/Low) |
1.6/1.4/1.0/0.5 A typical | EXP1: 1.6/1.5/1.0/0.5 A typ. EXP2: 1.6/1.4/0.9/0.5 A typ. |
| RX (Max. audio) |
450 mA typ. (INT SP), 190 mA typ. (EXT SP, Single end) 450 mA typ. (EXT SP, BTL) |
450 mA typ. (INT SP), 190 mA typ. (EXT SP, Single end) 450 mA typ. (EXT SP, BTL) |
|
| Dimensions (W×H×D) (Projections not included) |
58.6 × 112 × 30.5 mm, 2.3 × 4.4 × 1.2 in (with BP-298) |
||
| Weight (Approximate) | 300 g, 10.6 oz (with BP-298, FA-B57V) |
290 g, 10.2 oz (with BP-298, FA-B57U) |
|
Transmitter
| IC-V86 | IC-U86 | |
|---|---|---|
| Output power (EX Hi/Hi/Mid/Low) |
7.0/5.5/2.5/0.5 W | 5.5/4/2/0.5 W |
| Maximum frequency deviation | ±5.0 kHz/±2.5 kHz (Wide/Narrow) | |
| Spurious emissions | Less than –60 dB | |
| External microphone connector | 3-conductor 2.5 (d) mm (1/10″)/2.2 kΩ | |
Receiver
| IC-V86 | IC-U86 | ||
|---|---|---|---|
| Sensitivity | –124 dBm typical | EXP1: –121 dBm typical EXP2: –123 dBm typical |
|
| Squelch sensitivity | –126 dBm typical | EXP1: –123 dBm typical EXP2: –125 dBm typical |
|
| Selectivity (Wide/Narrow) | 75 dB typical/ 70 dB typical |
70 dB typical/ 68 dB typical |
|
| Intermodulation | 65 dB typical | ||
| Audio output power (For the transceiver with a “U” mark on the serial number label) |
Internal SP | 1500 mW typical (with 8 Ω load) | |
| External SP | 450 mW typical (single end) 1500 mW typical (BTL, HM-222HLWP connected) |
||
| External speaker connector | 3-conductor 3.5(d)mm (1/8″)/8Ω | ||
