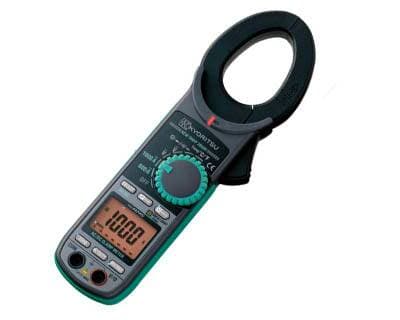

Kyoritsu 2046R Clamp Meter
Rp 3.250.000 *Inc. PPN
• Designed to meet international safety standard IEC 61010-1 CAT IV 600V.
• CAT IV Clamp Meters can measure the Voltage and Current in both every low and high power circuits.
• Very useful for power distribution companies, power utilities and maintenance fields.
• True RMS enables an accurate measurement.
Related Products
Kyoritsu 2046R Clamp Meter
• Designed to meet international safety standard IEC 61010-1 CAT IV 600V.
• CAT IV Clamp Meters can measure the Voltage and Current in both every low and high power circuits.
• Very useful for power distribution companies, power utilities and maintenance fields.
• True RMS enables an accurate measurement.
| AC A (RMS) | 0 – 600.0A ±2.0%rdg±5dgt (50/60Hz) ±3.5%rdg±5dgt (40 – 500Hz) |
|---|---|
| DC A | 0 – 600.0A ±1.5%rdg±5dgt |
| AC V | 6/60/600V Auto Ranging ±1.5%rdg±4dgt (50/60Hz) ±3.5%rdg±5dgt (40 – 400Hz) |
| DC V | 600m/6/60/600V Auto Ranging ±1.0%rdg±3dgt |
| Ω | 600/6k/60k/600k/6M/60MΩ (Auto Ranging) ±1%rdg±5dgt (600 – 6M) / ±5%rdg±8dgt (60M) |
| Continuity buzzer | Buzzer Sounds at 100Ω |
| Capacitance test | 400n/4µ/40µF(Auto Ranging) |
| Temperature | -50ºC – +300ºC (With the use of Temperature probe 8216) |
| Frequency/DUTY | 10/100/1k/10kHz (Auto Ranging) / 0.1 – 99.9% |
| Conductor size | Ø33mm |
| Safety Standard | IEC 61010-1 CAT IV 600V, IEC 61010-031, IEC 61010-2-032, IEC 61326 |
| Power source | R03 (1.5V) (AAA) × 2 |
| Dimensions | 243(L) × 77(W) × 36(D)mm |
| Weight | 300g |
| Included Accessories | 7066A (Test leads) 9094 (Carrying case) Instruction Manual |
| Optional Accessories | 8216 (Temperature probe) |
Specification: Kyoritsu 2046R Clamp Meter
| Weight | 2 kg |
|---|
