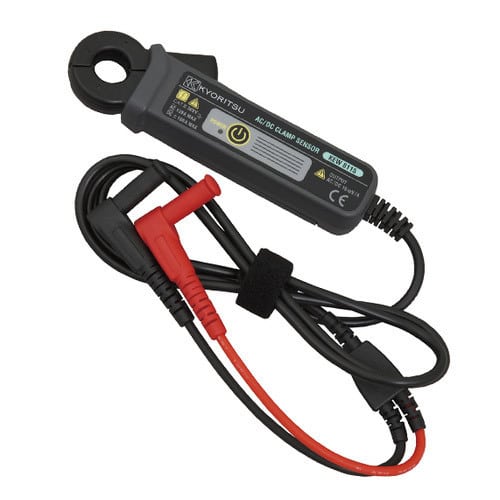

Kyoritsu 8115
Rp 6.467.500 *Inc. PPN
- Mengizinkan perpanjangan rentang arus AC dan DC dari hampir semua Multimeter Digital (DMM) tanpa memutus sirkuit yang sedang diuji.
- Menggunakan KEW 8115 dengan KEW 1051/1052 (DMM), tampilan dapat diatur untuk pembacaan langsung di A.
Related Products
FITUR
- Mengizinkan perpanjangan rentang arus AC dan DC dari hampir semua Multimeter Digital (DMM) tanpa memutus sirkuit yang sedang diuji.
- Menggunakan KEW 8115 dengan KEW 1051/1052 (DMM), tampilan dapat diatur untuk pembacaan langsung di A.
SPESIFIKASI
| Specification | ||||
|---|---|---|---|---|
| Measuring range | AC 0.1 – 130Arms (185Apeak) | DC 0 – ±180A | ||
| Output voltage | AC 10mV/A | DC 10mV/A | ||
| Accuracy | ±1.2%rdg±0.4mV (50/60Hz) ±2.5%rdg±0.4mV (40 – 1kHz) | ±1.2%rdg±0.4mV (*) | ||
| Low battery warning | 2.2V±0.2V or less – Red LED flash (1.9V±0.2V – Automatically power off) | |||
| Conductor size | Max. Φ12mm | |||
| Withstand voltage | AC 3540V (RMS 50/60Hz) for 5 sec. | |||
| Operating temperature & humidity range | -10 to 55ºC, relative humidity 85% or less (no condensation) | |||
| Output impedance | Approx. 10Ω or less | |||
| Applicable standards | IEC 61010-1 CAT III 300V Pollution degree 2, IEC 61010-2-032, IEC 61326-1 | |||
| Power source | DC3V (size AAA alkaline battery LR03×2pcs) * Continuous use: approx. 40 hours (Auto power off: approx. 20 minutes) | |||
| Cord length | Approx. 1,200mm | |||
| Output connector | Φ4mm banana plug | |||
| Dimensions | 127(L)×42(W)×22(D) mm | |||
| Weight | Approx. 140g | |||
| Accessories | Soft case, LR03×2, Instruction manual | |||
