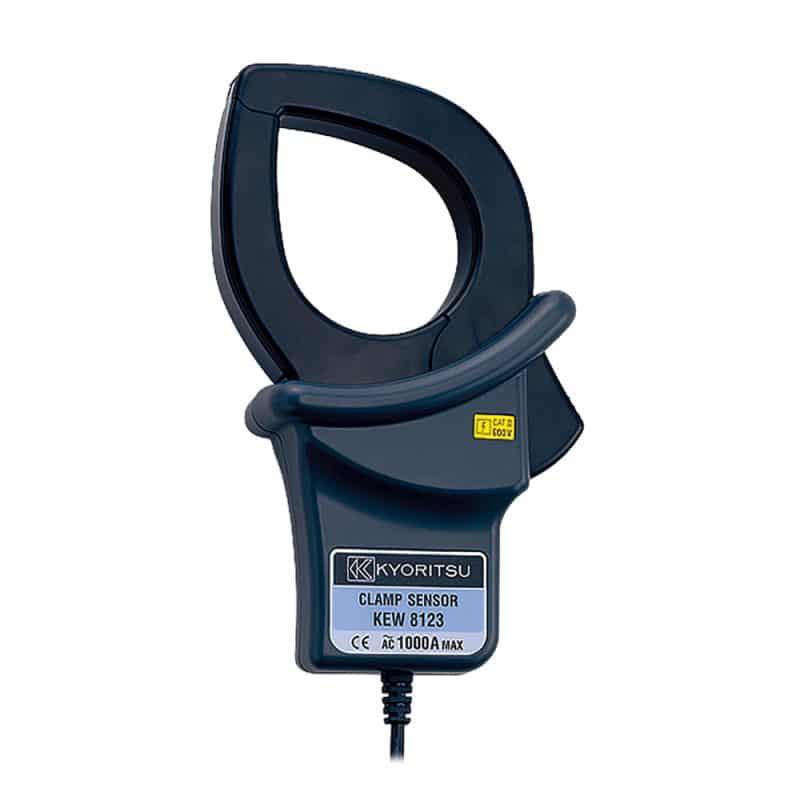

Kyoritsu 8123
Rp 3.250.000 *Inc. PPN
Related Products
SPESIFIKASI
| CONDUCTOR SIZE | Ø55mm |
|---|---|
| RATED CURRENT | AC 1000A |
| OUTPUT VOLTAGE | AC 500mV/1000A (AC 0.5mV/A) |
| ACCURACY | ±2.0%rdg±0.3mV (50/60Hz) ±3.0%rdg±0.5mV (40Hz – 1kHz) |
| CABLE LENGTH | Approx. 2m |
| OUTPUT CONNECTOR | MINI DIN 6pin |
| OUTPUT IMPEDANCE | Approx. 1.5Ω |
| APPLICABLE STANDARDS | IEC 61010-1:2001, IEC 61010-2-032:2002, CAT III 600V pollution degree 2 |
| OPERATING TEMPERATURE & HUMIDITY RANGE | 0 – 40ºC, less than 85% RH (without condensation) |
| DIMENSIONS | 170(L) x 105(W) x 48(D) mm |
| WEIGHT | Approx.360g |
| INCLUDED ACCESSORIES | 9094 (Portable case), Instruction manual, Cable marker |
| OPTIONAL ACCESSORIES | 7146 (Banana Ø4 adjuster plug) 7185 (Extension Cable) |
