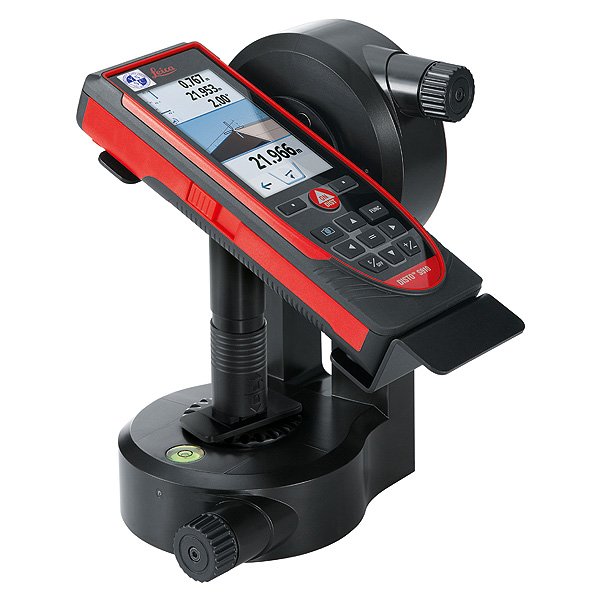

Leica DISTO S910
Rp 22.250.000 *Inc. PPN
- Point to Point (P2P): Measure the tie distance between two points, even if you are hundreds of feet from your target. Shoot Point 1 then Point 2 and the DISTO S910 displays the distance between them. Widths, heights, diagonals, gaps, it doesn’t matter: Just measure the start and end point and the distance is displayed.
- Smart Area: Shoot the corners of any polygon to determine the area of walls, floors, even complex roof shapes.
- Smart Angle: Shoot three points to measure any angle (including outside angles, which is a first).
Related Products
Leica DISTO S910 is the first laser distance measurer that captures multiple, accurate measurements in three dimensions from a single location, radically improving the efficiency of common measuring tasks.
SmartBase for the DISTO S910
Smart Base — a biaxial pivot integrated with the circuit board — is the key hardware innovation. Combined with a more powerful laser, a 360° tilt sensor, and new software — SmartBase enables you to stand back from your target to measure the distances and angles between multiple points.
SmartBase facilitates three new remote measurement functions:
- Point to Point (P2P): Measure the tie distance between two points, even if you are hundreds of feet from your target. Shoot Point 1 then Point 2 and the DISTO S910 displays the distance between them. Widths, heights, diagonals, gaps, it doesn’t matter: Just measure the start and end point and the distance is displayed.
- Smart Area: Shoot the corners of any polygon to determine the area of walls, floors, even complex roof shapes.
- Smart Angle: Shoot three points to measure any angle (including outside angles, which is a first).
Use a Tripod
For maximum accuracy the SmartBase requires a simple level check. This guarantees the electronic level of the DISTO S910 is within ± 0.1° of true level. For the highest measuring accuracy you will want to use a tripod for the majority of P2P, Smart Angle and Smart Area functions. The S910 includes a metal insert for a ¼” tripod thread, found at the bottom of the SmartBase (and a 5/8” adaptor is available).
Capture and Export Measurement Data
The Leica DISTO S910 connects to compatible mobile apps with Bluetooth and exports DXF files over WiFi.
For more information on the features and functions of the S910 check out the clickable icon grid below.
Specifications
| ISO 16331-1 certified measuring accuracy (favorable conditions) | 1.0mm / ± 0.04 in* |
| ISO 16331-1 certified measuring accuracy (unfavorable conditions) | 2.0mm / ± 0.08 in** |
| ISO 16331-1 certified range (favorable conditions) | 0.05m – 300m / 0.16 ft – 984 ft |
| ISO 16331-1 certified range (unfavorable conditions) | 0.05m – 150m / 0.16 ft – 492 ft |
| Smart Base vertical range | -40° to 80° |
| Smart Base vertical sensor tolerance | up to +/- 0.1° |
| Smart Base horizontal range | 360° |
| Smart Base horizontal tolerance | up to +/- 0.1° |
| Tolerance P2P function at distances (combination of sensors and distance measuring) | approx. : +/- 2 mm / 2 m+/- 5 mm / 5 m +/- 10 mm /10 m |
| Measuring units | 0.000 m, 0.0000 m, 0.00 m, 0.00 ft, 0’00” 1/32, 0.00 in, 0 in 1/32 |
| X-Range Technology | Yes |
| Pointfinder with 4x zoom | Yes |
| Overview camera | Yes |
| File format | .jpg / .dxf |
| Memory | Last 50 displays |
| Windows Software | DISTO Transfer with AutoCAD® plugin |
| Free App | iOS / Android |
| Data interface | Bluetooth® V4.0 Smart / WLAN / USB |
| Measurements per set of batteries | ~ 4000 |
| Storage Temp. Range | -25 to 60 °C -13 to 140 °F |
| Operating Temp. Range | -10 to 50 °C 14 to 122 °F |
| Charging Temp. Range | -10 to 40 °C 14 to 104 °F |
| Batteries | Li-ion rechargeable |
| Tripod thread | -20 |
| Protection class | IP 54 – splash water/ dust proof |
| Dimensions | 61 x 32 x 164 mm / 2.4 x 1.3 x 6.5 in |
| Weight with batteries | 8.5 oz |
| EAN/UPC | 7640110695753 |
