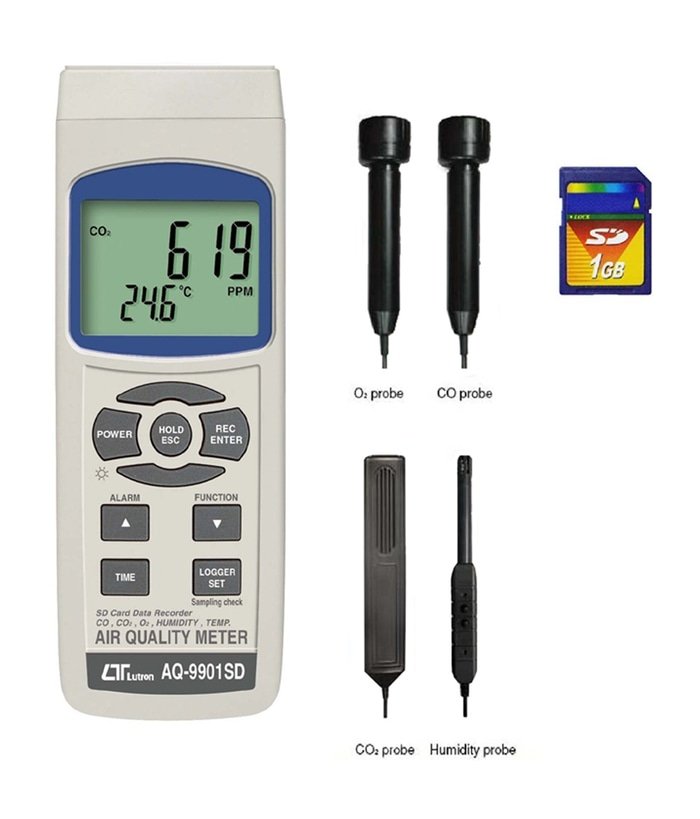

Lutron AQ-9901SD Air Quality Meter


Features:

  • Real time recorder, save the data into the SD memory card and can be download to the Excel, extra software in no need.
  • Air Quality measurement application, multi-function: CO2 (Carbon dioxide), CO (Carbon monoxide), O2 (Oxygen in air), Humidity, Temperature measurement.
  • CO2 range: 0 to 4,000 ppm x 1 ppm
  • O2 range: 0 to 30.0 % x 0.1 %
  • CO range: 0 to 1.000 ppm x 1 ppm
  • Humidity range: 10 to 95 %RH
  • Dew point: -25.3 to 48.9 °C, °C/°F
  • Temp. range: 0 to 50.0 °C, °C/°F
  • CO2 sensor: NDIR, long term reliability
  • CO, O2 sensor: Galvanic cell type
  • Humidity sensor: Precision capacitance sensor

Alat Ukur Kualitas Udara Multifungsi Lutron AQ-9901SD Air Quality Meter

Air Quality Meter adalah salah satu alat uji untuk mengukur kualitas udara agar mendapatkan data-data batas dari kualitas udara dalam ruangan maupun di luar ruangan. Diperlukan alat ukur portable yang cepat dan akurat yaitu menggunakan Lutron AQ-9901SD Air Quality Meter selain di gunakan oleh industri-industri, Air Quality meter ini juga dapat digunakan oleh kalangan umum, terutama yang berkaitan dengan kesehatan dan kenyamanan penghuni bangunan.

Alat ukur air quality meter AQ-9901SD mampu mendeteksi udara yang dipengaruhi oleh gas ( termasuk karbon monoksida , radon , senyawa organik yang mudah menguap ), partikulat, kontaminan mikroba ( jamur, bakteri ) atau massa atau energi stressor yang dapat menimbulkan kondisi yang merugikan kesehatan. Sumber kontrol, filtrasi dan penggunaan ventilasi untuk mencairkan kontaminan adalah metode utama untuk meningkatkan kualitas udara dalam ruangan di sebagian besar bangunan sehingga dapat tercipta udara yang bersih dan sehat. Berikut spesifikasi dan fitur lengkap untuk Air Quality Meter type AQ-9901SD. Pastikan product yang anda beli bergaransi dan didukung dengan teknisi profesional.

Spesifikasi Elektrical (23± 5 C°) :

1. CO2 ( Karbon dioksida ) :

  • CO2 ( Karbon dioksida )  23 ±  5 C° :
  • Range : 0 to 4,000 ppm
  • Resolution 1 ppm
  • Accuracy :
    • ± 40 ppm
    • < 1,000 ppm.
    • ± 5% of reading.
    • >1000 ppm <3,000 ppm.
    • ± 250 ppm typically
    • > 3000 ppm, reference only
  • Repeatability : ± 20 ppm < 3,000 ppm.
  • Range : 0°C to 50°C,32°F to 122°F.
  • Resolution : 0.1 degree
  • Accuracy : °C: ± 0.8°C °F: ± 1.5 °F.

2. CO ( Karbon monoksida )

  • Range : 0 to 1,000 ppm
  • Resolution 1 ppm
  • Accuracy ± ( 5% + 2 ppm )
  • Response time < 30 seconds
  • Repeatability < 2%
  • Zero drift in long term < 5 ppm
  • Sensivity drift < 5% per year
  • Temperature :
    • Range : 0°C to 50°C,32°F to 122°F.
    • Resolution : 0.1 degree
    • Accuracy : °C: ± 0.8°C °F: ± 1.5 °F

3. O2 ( Air Oxygen ) :

  • Range : 0 to 30% O2
  • Resolution : 0.1 % O2
  • Accuracy :   ± ( 1 % reading + 0.2 % O2 ). @ After calibration
  • Response time : < 15 seconds @t 90
  • Overload protection 100% O2
  • Environment pressure range : 0.9 to 1.1 atmosphere
  • Expected life time > 2 tahun
  • Alarm If the measurement air oxygen value < 18.0 % O2, the buzzer will sound for warning.
  • Temperature :
    • Range : 0°C to 50°C,32°F to 122°F.
    • Resolution : 0.1 degree
    • Accuracy : °C: ± 0.8°C °F: ± 1.5 °F

4. Humidity / Temperature

  • Range : 5% to 95% R.H
  • Resolution : 0.1 % R.H.
  • Accuracy :
    • ≧ 70% RH : ± (3% reading + 1% RH).
    • < 70% RH : ± 3% RH
  • Temperature :
    • Range : 0°C to 50°C,32°F to 122°F.
    • Resolution : 0.1 degree
    • Accuracy : °C: ± 0.8°C °F: ± 1.5 °F

5. Dew Point Temp. ( Humidity )

  • Celcius :
    • Range : -25.3 °C to 48.9 °C
    • Resolution : 0.1 °C
  • Fahrenheit :
    • Range -13.5 °F to 120.1 °F.
    • Resolution : 0.1 °F

6. Wet Bulb Temp. ( Humidity)

  • Celcius :
    • Range : -21.6 °C to 50.0°C
    • Resolution : 0.1 °C
  • Fahrenheit :
    • Range : -6.9°F to 122.0 °F
    • Resolution : 0.1 °F



Fitur Lutron AQ-9901SD Air Quality Meter :

  • Merekan data secara real time, menyimpan data ke kartu memori SD dan bisa down load ke Excel, perangkat lunak tambahan tidak perlu. Pengguna dapat membuat data lebih lanjut atau analisis grafis sendiri. di bawah software Excel.
  • Pada saat yang sama, kartu memori SD dapat merekam 3 penyelidikan data (% RH / CO2 / O2 / Temp. Atau% RH / CO2 / CO / Temp.) Bersama dengan informasi waktu ke dalam satu file Excel pada waktu yang sama.
  • Panduan data logger yang tersedia, selama menjalankan fungsi datalogger manual, dapat mengatur lokasi yang berbeda tidak ada. (Posisi 1 ke posisi 99).
  • Aplikasi kualitas udara pengukuran, multi-fungsi: CO2 (Karbon dioksida), CO (Karbon monoksida), O2 (Oksigen di udara), Kelembaban, pengukuran suhu.
  • – CO2 range : 0 to 4,000 ppm x 1 ppm.
  • – O2 range : 0 to 30.0 % x 0.1 %.
  • – CO range : 0 to 1,000 ppm x 1 ppm.
  • – Humidity range: 10 to 95 %RH.
  • – Dew point Temp. and  Wet bulb  Temp. measurement.
  • – Temp. range : 0 to 50.0 °C,°C/°F
  • – CO2 sensor : NDIR, long term reliability.
  • – CO, O2 sensor : Galvanic cell type.
  • – Humidity sensor : Precision capacitance sensor.
  • – Alarm setting with the beeper sound output.
  • – Sampling time for data recorder is 2 seconds to 8 hours.
  • – Complete set with 4 probes :CO2/Temp. probe, O2/Temp. probe, CO/Temp. probe, Humidity/Temp. probe, main meter and the hard carrying case.
  • – Separate probe, easy for remote measurement.
  • – Meter can cooperate with 2 GB to 16 GB SD card, SD card is optional.
  • – RS232/USB computer interface.
  • – Patented.

Spesifikasi Lutron AQ-9901SD Air Quality Meter :

  • Circuit : Custom one-chip of microprocessor LSI circuit.
  • Display :
    • LCD size : 52 mm x 38 mm
    • LCD with green backlight ( ON/OFF )
  • Measurement :
    • CO2 (Carbon dioxide )
    • CO ( Carbon monoxide )
    • O2 ( Oxygen in air )
    • Humidity
    • Dew point Temp, Wet bulb Temp.
    • Temperature
  • Sensor Structure :
    • Co2 : NDIR Nondispersive infrared sensor
    • Humidity : Precision capacitance sensor
    • O2 : Galvanic Cell type
    • CO : Galvanice cell type
    • Temp. : Precision thermistor
  • Data Logger sampling time setting range :
    • Auto : 2 sec to hour 59 min. 59 sec. ( @sampling time can set to 1 second, but memory data may loss.)
    • Manual : Push the data logger button once will save data one time. ( @set the sampling time to 0 second, @manual mode, can also select the 1 the 1 to 99 position ( location) no.)
  • Data Error no. : 0.1% of total saved data max.
  • Memory card : SD memory card 1 GB to 16 GB
  • Advanced Setting @main setting :
    • SD memory card format
    • set clock time
    • set sampling time
    • Auto power off management
    • set beep sound ON/OFF
    • Decimal point of SD card setting
    • Temp. Unit setting
    • Alarm value setting
  • Data hold : freeze the display reading
  • Memory Recall : Maximum & Minimum value
  • Sampling time of display : Approx 1 second
  • Data output : RS232/USB PC conputer interface
    • Connect the optional RS232 cable UPCB-02 will get the RS232 plug.
    • Connect the optional USB cable USB-01 will get the USB plug.
  • Power supply :
    • Alkaline or heavy duty DC 1.5 V Battery (UM3, AA) x 6Pcs, or equivalent.
    • DC 9V adapter input (AC/DC power adapter is optional).
  • Power current :
    • CO2 measurement :
      • Normal operation (w/o SD card sace data and LCD backlight is off) : Approx DC 166mA.
      • When SD Card save the data and LCD backlight is OFF : Approx DC 166 mA.
    • Humidity Measurement
      • Normal operation (w/o SD card sace data and LCD backlight is off : Approx DC 10.5 mA.
      • When SD card save the data and LCD backlight is OFF : Aprrox DC 40 mA
    • O2 or CO measurement :
      • Normal operation (w/o SD card sace data and LCD backlight is offv: Approx DC 12,5 mA.
      • When SD card save the data and LCD backlight is OFF : Approx DC 42.5 mA
  • Operating Temperature : 0 to 50°C( 32 to 122 °F).
  • Operating Humidity : Less than 80% R.H.
  • Weight : 350 g/0.77 LB.
  • Dimension :
    • Ukuran : 177 x 68 x 45 mm
    • Humidity probe : 197 mm in length.
    • Co2 probe : 190 x 38 x 28 mm
    • O2 probe : 150 x 38 x 38 mm
    • CO probe : 150 x 38 x 38 mm
  • Accesories included :
    • Manual Book 1pcs
    • Hard carrying case, CA-08 1pcs
    • CO2 probe 1pcs
    • Humidity probe 1 pcs
    • O2 probe 1 pcs
    • CO probe 1 pcs
  • Optional Accessories :
    • SD memory card ( 2 GB )
    • AC to DC 9 V adapter
    • USB cable, USB-01.
    • RS232 cable, UPCB-02.
    • Data acquistion software, SW-U801-WIN.

Jual Lutron AQ-9901SD Air Quality Meter dengan harga murah, diskon dan cari produk lainnya dari kategori Air Quality Meter dari merek Lutron. Gratis biaya pengiriman untuk wilayah Jakarta dan dapat dikirim ke seluruh Indonesia. Dapatkan hanya di toko online Kucari.com, belanja online mudah dan aman.
