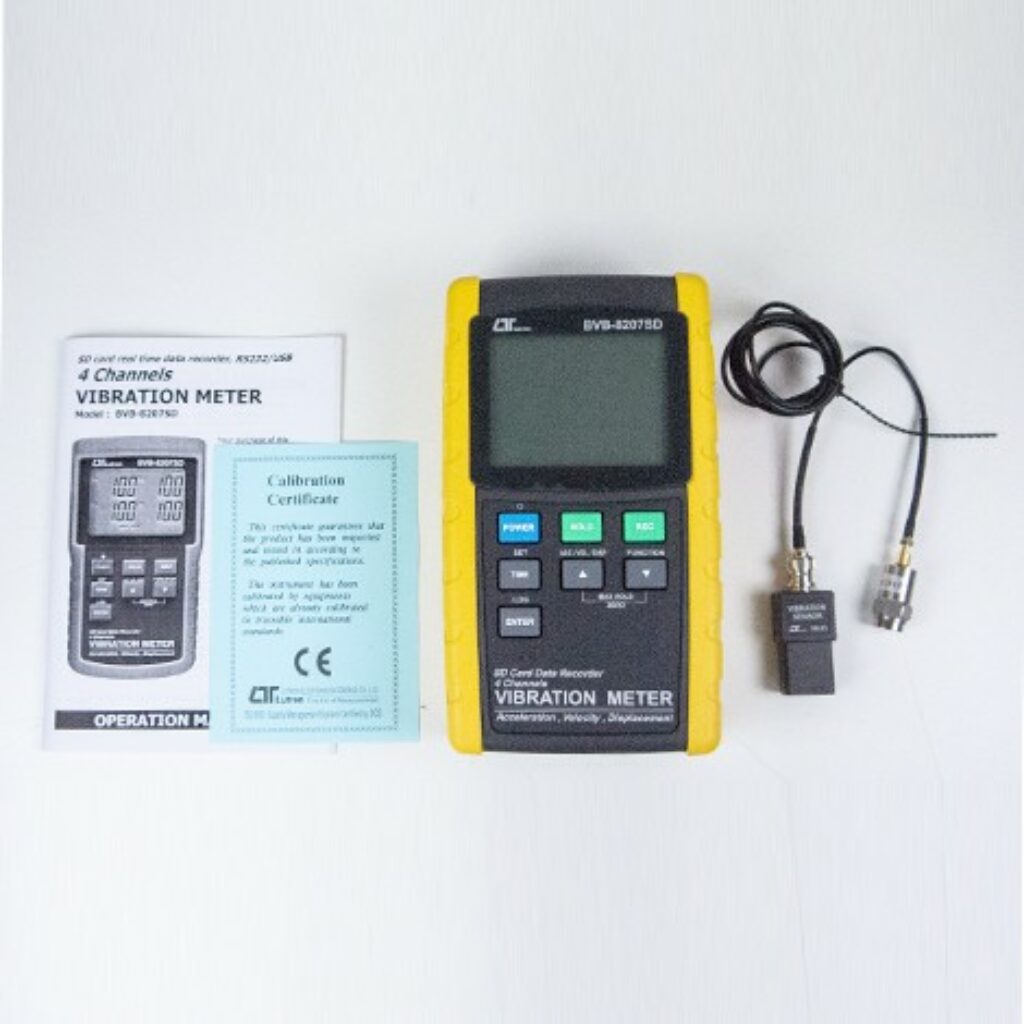

Lutron BVB-8207SD Vibration Recorder

Lutron BVB-8207SD adalah alat pengukur getaran (vibration meter) yang dilengkapi dengan fungsi pencatat (logger) untuk menyimpan data hasil pengukuran. Alat ini dapat mengukur percepatan, kecepatan, dan perpindahan getaran, serta menampilkan data dari empat saluran sekaligus. Selain itu, BVB-8207SD juga memiliki kemampuan untuk berkomunikasi dengan komputer melalui RS232/USB dan menyimpan data pada kartu SD (opsional).

Fitur Lutron BVB-8207SD

• 4 channels vibration recorder, use SD card to save the data along with time information, paperless.
• Real time data logger, save the measuring data along the time information (year, month, date, 　hour, minute, second) into the SD memory card and can be downloaded to the Excel, extra 　software is no need.
• Show CH1 to CH4 vibration values in the same LCD.
• Time information : Year, Month, Date, Hour, Minute and Second.
• Sampling setting : 1 to 3600 seconds.
• Function : Acceleration/Velocity/Displacement.
• Acceleration : 200 m/s2.
• Velocity : 200 mm/s.
• Displacement (p-p) : 2 mm.
• Max hold, peak value, data hold, Max./Min..
• RS232/USB computer interface.
• Memory card size : 1 GB to 16 GB.
• Supper large LCD with backlight, easy reading.
• Data hold, Record (Max., Min.).
• RS232/USB computer interface.
• Include 1 PC sensor vibration set, VB-83.
• Extra vibration sensor set, VB-83 can be ordered. When changing the VB-83, it is not necessary to 　make the new calibration again.
• Optional Tip type vibration sensor set, VB-84.
• DC 1.5V (UM-3/AA) x 8 PCs or DC 9V adapter in.
• Patented.
