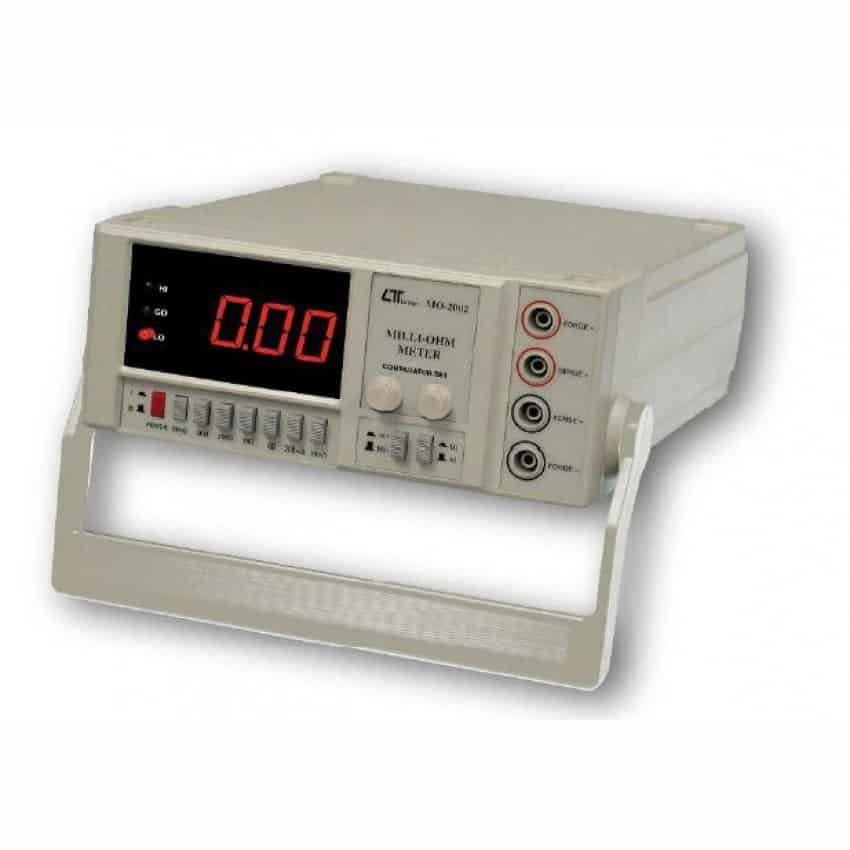

Lutron MO-2002 Bench Type MilliOhm Meter

Lutron MO-2002 Bench Type MilliOhm Meter

Made in Taiwan
Test Range (Test Current) 20

Range Resolution Test current Accuracy
20 m ohm 0.01 m ohm 1 A ( 0.2 % + 6 d )
200 m ohm 0.1 m ohm 1 A ( 0.2 % + 4 d )
2 ohm 1 m ohm 100 mA
20 ohm 0.01 ohm 10 mA
200 ohm 0.1 ohm 1 mA
2 K ohm 0.001 K ohm 100 uA
20 K ohm 0.01 K ohm 10 uA
@ The above accuracy is based on the reading value.

Range Open Circuit Voltage
20 m ohm Approx. DC 4.5 V
200 m ohm Approx. DC 4.5 V
2 ohm Approx. DC 4.5 V
20 ohm Approx. DC 4.1 V
200 ohm Approx. DC 3.3 V
2 K ohm Approx. DC 2.7 V
20 K ohm Approx. DC 1.9 V

Warning Setup * Warning LED Indicator * Buzzer
Operating Temp. 0 to 50 ( 32 to 122 ).
Operating Humidity Less than 80 % R.H..
Power Supply AC 220V 15%, 50/60 Hz.
Fuse for Power Supply * 200 mA/250 V
Size : 5 X 20 mm dia
Dimension 280 x 210 x 90 mm

Aksesoris standar

• Kabel Listrik ……………………………………………1 Pasang.
• 4 kabel dengan 2 klip Kelvin …………….. 1 pasang.
• Manual Instruksi ………………………………….. 1 Pasang.
