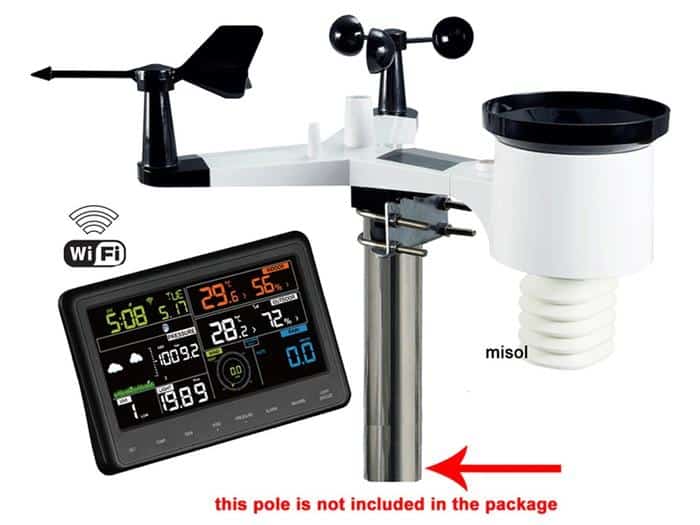

MISOL WH2900 Weather Station with Touch Viewer Console

MISOL WH2900 dirancang sebagai sistem pemantauan meteorologi rumahan yang komprehensif — mencakup sensor luar yang menangkap data seperti suhu, kelembapan, curah hujan, kecepatan dan arah angin, serta tekanan udara; dan unit dalam (konsol) yang menampilkan semua data secara real-time, serta dapat tersambung ke internet melalui WiFi untuk unggahan data ke layanan cuaca daring.

Outdoor Sensors Specification

• Wind Sensor:
• Measuring Method: Mechanical
• Wind Speed:
• Range: 0 — 50m/s
• Accuracy: – Resolution: 0.1 m/s
• Wind Direction:
• Range: 0° — 359°
• Temperature Sensor:
• Range: -40°C — 60°C
• Accuracy: ±1°C
• Resolution: 0.1°C
• Humidity Sensor:
• Range: 10 — 99%
• Accuracy: ±5%
• Resolution: 1%
• Light Sensor:
• Light Detection Range: 0 — 200kLux
• Light Detection Accuracy: ±15%
• UV Index Range: 0 — 15
• UV Index Accuracy: ±15%
• Rain Sensor
• Measuring Method: Mechanical
• Range: 0 — 6000 mm
• Accuracy: ±10%
• Resolution:
• Connectivity: Wireless RF
• Radio Frequency: 433MHz
• Transmition Range (Outdoor Sensor to Gateway): Up to 100m (no obstacle)
• Sensor Reporting Interval: 16s
• Power Source: Solar Panel (Built -in) | Battery AA x 3 (Back-up)
• Dimension: Approx. 33 x 30 x 17 cm
• Ceritification: CE

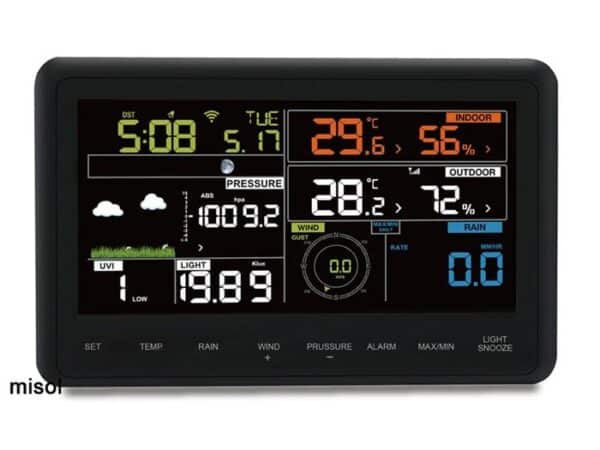

Console (Viewer) Specification

• Temperature Sensor:
• Range: -0°C — 60°C
• Accuracy: ±1°C
• Resolution: 0.1°C
• Humidity Sensor:
• Range: 10 — 99%
• Accuracy: ±5%
• Resolution: 1%
• Barometric Pressure Sensor:
• Range: 700 — 1100 hPa
• Accuracy: ± 3 hPA
• Resolution: 0.1 hPa
• Date and Time Data: Yes
• Wind Speed Data: Yes
• Wind Direction Data: Yes
• Temperature Data: Yes (Indoor and Outdoor)
• Humidity Data: Yes (Indoor and Outdoor)
• Barometric Data: Yes
• Dew Point Data: Yes
• Light Intensity Data: Yes
• UV Index Data: Yes
• Rain Volume Data: Yes
• Forecast Feature: Yes
• Moon Phase: Yes
• Alarm: Yes
• Data Record: Yes
• Wireless Connection: WiFi 2.4 GHz
• Connection to Sensors: Wireless RF 433 MHz
• Display Backlight: Yes (Color Display)
• Display Type: Touch Panel
• Power Source: Battery AA x 3 | Adaptor 5V DC (Included)
• Dimension: Approx. 18.7 x 11.5 x 1.9 cm

Paket Tidak Termasuk Baterai dan Tiang Instalasi
