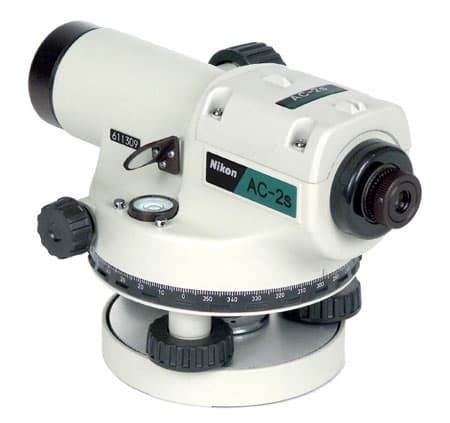

Automatic Level Nikon AC 2S


Features Automatic Level Nikon AC 2S

  • 24x magnification
  • 2.46-foot minimum focusing distance
  • 1/8 inch accuracy
  • 0.5 arc-second compensator accuracy
  • 360-degree horizontal circle
  • Detachable eyepiece
  • Magnetic-dampened automatic compensator
  • Large focusing knob
  • Tangent knobs with unlimited range
  • Friction brake for rapid rotation
  • Compact and lightweight
  • IP52 dust and water resistant
  • 5/8-11 tripod thread

Automatic Level Nikon AC-2S 24X Magnification Lens

Automatic Level Nikon AC 2S digunakan untuk mengambil bidang horizontal yang sangat akurat dan sudut. Dengan 24x pembesaran, alat survei dan konstruksi ini dilengkapi dengan optik kuat yang menyerap lebih banyak cahaya untuk gambar terang dan tajam. Ini memiliki akurasi 1/8 inci pada 150 kaki dan fitur kompensator internal untuk tingkat garis pandang, sehingga cocok untuk lansekap, peletakan pipa, pemasangan pondasi

Features Automatic Level Nikon AC 2S

  • 24x magnification
  • 2.46-foot minimum focusing distance
  • 1/8 inch accuracy
  • 0.5 arc-second compensator accuracy
  • 360-degree horizontal circle
  • Detachable eyepiece
  • Magnetic-dampened automatic compensator
  • Large focusing knob
  • Tangent knobs with unlimited range
  • Friction brake for rapid rotation
  • Compact and lightweight
  • IP52 dust and water resistant
  • 5/8-11 tripod thread

Specifications Automatic Level Nikon AC 2S



AX-2S

AC-2S

AP-8

TELESCOPE
Tube length:

7.5 in (190 mm)

7.5 in (190 mm)

7.5 in (190 mm)

Image:

erect

erect

erect

Effective diameter of objective:

1.2 in (30 mm)

1.2 in (30 mm)

1.2 in (30 mm)

Magnification:

20x

24x

28x

Resolution power:

4.5″

3.5″

3.5″

Field of view:

1°30′ (2.6 ft @ 100 ft)

1°30′ (2.6 ft @ 100 ft)

1°30′ (2.6 ft @ 100 ft)

Minimum focusing distance:

2.46 ft (0.75 m)

2.46 ft (0.75 m)

2.46 ft (0.75 m)

Stadia ratio:

1:100

1:100

1:100

Stadia additive constant:

+10 cm

+10 cm

+10 cm

LEVEL VIAL SENSITIVITY
Circular level:

10′ / 2 mm

10′ / 2 mm

10′ / 2 mm

STANDARD DEVIATION
per 1-km double-run leveling:

±1.5 mm

±1.5 mm

±1.5 mm



AX-2S

AC-2S

AP-8

AUTOMATIC COMPENSATOR
Type:

wire-hung, magnetic damper

wire-hung, magnetic damper

wire-hung, magnetic damper

Compensation range:

±16′

±16′

±16′

Setting accuracy:

±0.5″

±0.5″

±0.5″

HORIZONTAL CIRCLE
Diameter of circle:

4.3 in (110 mm)

4.3 in (110 mm)

4.3 in (110 mm)

Minimum increment:

1° / 1 g

1° / 1 g

1° / 1 g

Scale reading (direct):

1° / 1 g

1° / 1 g

1° / 1 g

Reading by estimation:

0.1° / 0.1 g

0.1° / 0.1 g

0.1° / 0.1 g

DIMENSIONS
Instrument (L X W X H):

7.5 x 5.0 x 4.8 in (190 x 128 x 123 mm)

7.5 x 5.0 x 4.8 in (190 x 128 x 123 mm)

7.5 x 5.0 x 4.8 in (190 x 128 x 123 mm)

Carrying case (L X W X H):

11.5 x 6.7 x 6.4 in (292 x 170 x 163 mm)

11.5 x 6.7 x 6.4 in (292 x 170 x 163 mm)

11.5 x 6.7 x 6.4 in (292 x 170 x 163 mm)



AX-2S

AC-2S

AP-8

WEIGHT
Instrument:

2.8 lbs (1.25 kg)

2.8 lbs (1.25 kg)

2.8 lbs (1.25 kg)

Carrying case:

2.7 lbs (1.2 kg)

2.7 lbs (1.2 kg)

2.7 lbs (1.2 kg)

Complete with:

  • Alumunium tripod
  • Rambu ukur / Levelling staff



Jual Automatic Level Nikon AC 2S dengan harga murah dan cari produk terbaik lainnya dari kategori Automatic Level dari Merek Nikon. Gratis biaya pengiriman untuk wilayah Jakarta dan dapat dikirim ke seluruh Indonesia. Dapatkan hanya di toko online Kucari.com, belanja online alat ukur dan alat survey mudah dan aman.

Kucari.com menyediakan berbagai Automatic Level dari supplier dan distributor resmi yang tersebar dibeberapa kota di Indonesia seperti Jakarta, Bandung, Bekasi, Depok, Cikarang, Tangerang, Lampung, Pontianak, Jogja, Semarang, Solo, Batam, Padang, Pekanbaru, Malang, Surabaya, Medan, Makassar, Balikpapan, Samarinda, Pelembang, Riau, Aceh, Manado, dan Bali
