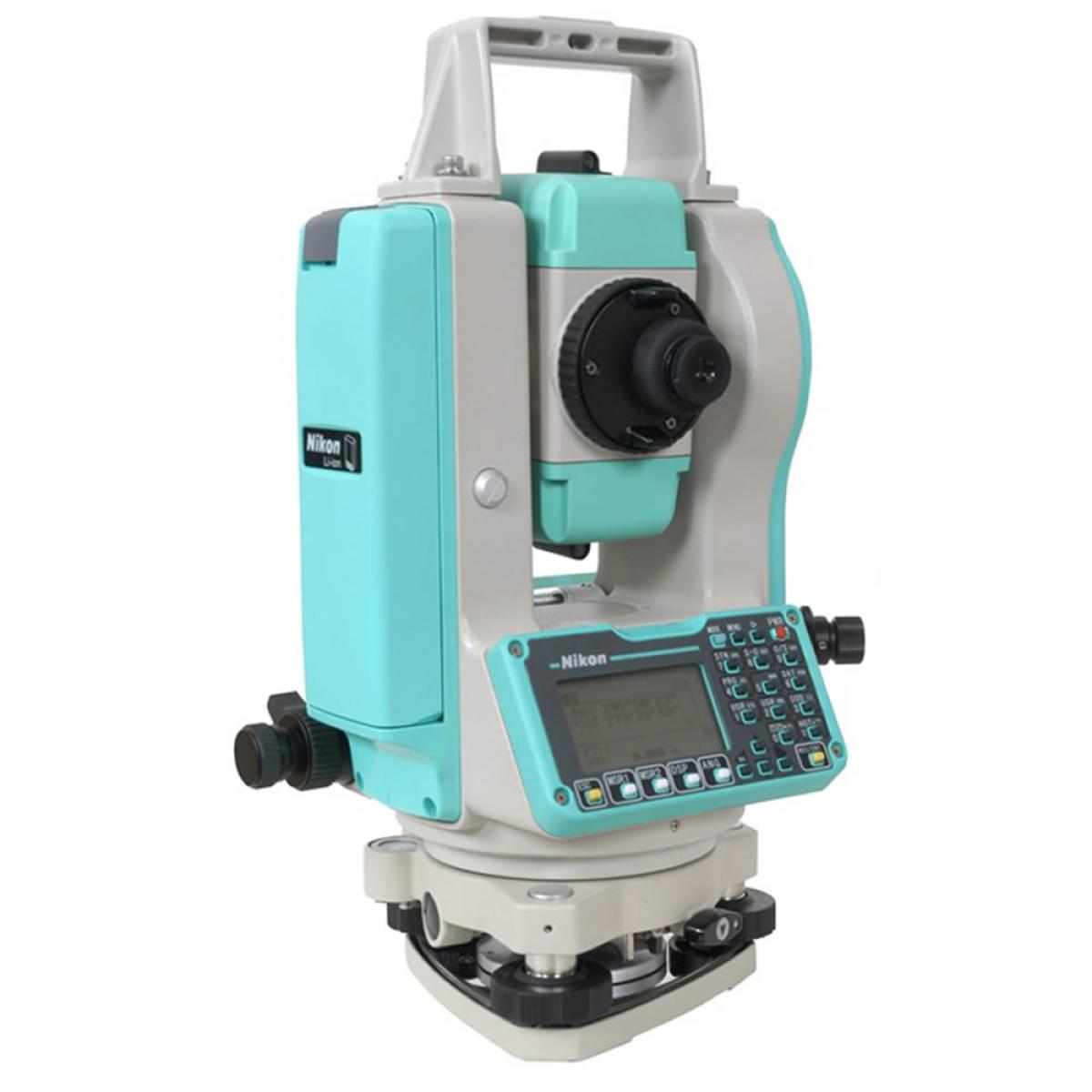

Nikon NPL 322P Total Station

total station nikon NPL 322P adalah alat instrumen optis/elektronik yang lengkap dapat mengukur sudut dan jarak sehingga dapat digunakan dalam pemetaan dan kontruksi  dan bangunan. Total station merupakan  alat terintegrasi dengan komponen pengukur jarak elektronik (electronic distance meter (EDM)) untuk membaca jarak dan kemiringan dari instrumen ke titik tertentu. Total Station Nikon NPL-322P  ini merupakan produk Nikon terbaru pada jenis Total Station dengan beberapa fitur unggulan. Total Station Nikon NPL-322P ini sangat membantu para Surveyor dalam kerja lapangan karna menghasilkan hasil yang terbukti akurat

FITUR

• Akurasi 2 Detik
• Hingga kisaran 9.840 kaki
• Optical Plummet
• Dual Axis
• Bluetooth
• Internal Memori internal 25.000 poin
• Port serial RS-232
• Tahan debu dan tahan air IP55
• Baterai isi ulang Li-ion yang tahan lama
• Daya tahan baterai hingga 22 jam
• Keyboard numerik penuh ganda
• Layar LCD grafis backlit
• EDM yang cepat dan akurat
• Kuat dan ringan

SPESIFIKASI

• Range with Nikon specified prisms
• Good conditions (No haze, visibility over 40 km (25 miles))
• With reflector sheet (5 × 5 cm). 1.5 m to 200 m (4.9 ft to 787 ft)
• With single prism 6.25 cm (2.5 in). 3,000 m (9,840 ft)
• Range reflectorless mode
• Good Normal Difficult
• KGC (18%)1 150m (492 ft) 120m (394 ft) 100m (328 ft)
• KGC (90%)1 200m (656 ft) 180m (590 ft) 150m (492 ft)
• Accuracy ISO 17123-4 (Precise mode)
• Prism2 . ±(2+2 ppm × D) mm
• Reflectorless /Reflector sheet3. ±(3+3 ppm × D) mm
• Measuring interval4
• Prism mode
• Precise mode. 1.8 sec.
• Normal mode . 0.8 sec.
• Reflectorless mode
• Precise mode. 1.8 sec.
• Normal mode . 1.0 sec.
• Least count
• Precise mode. 1 mm (0.002 ft)
• Normal mode . 10 mm (0.02 ft)

ANGLE MEASUREMENT

• ISO 17123-3 accuracy (horizontal and vertical). 2″/0.6 mgon
• 5″/1.5 mgon
• Reading system Photoelectric detection by incremental encoder
• Circle diameter. 88 mm (3.46 in)
• Horizontal angle . 2″:Diametrical
• 5″:Single
• Vertical angle. Single
• Minimum increment (Degree, Gon, MIL6400). Degree: 1/5/10″
• Gon: 0.2/1/2 mgon
• MIL6400: 0.005/0.02/0.05 mil

TELESCOPE

• Tube length . 125 mm (4.9 in)
• Image . Erect
• Magnification. 30× (18x/36x with optional eyepieces)
• Effective diameter of objective. 45 mm (1.77 in)
• EDM. 50 mm (1.97 in)
• Field of view. 1°20′
• Resolving power. 3″
• Minimum focusing distance . 1.5 m (4.9 ft)
• Laser Pointer. Coaxial Red Light

TILT SENSOR

• Type. Single-axis
• Method. Liquid-electric detection
• Compensation range. ±3′
• Setting accuracy. 1″
• COMMUNICATIONS
• Communication ports . 1 x serial (RS-232C)

POWER

• Clip-on Li-on battery
• Output voltage. 3.8 V DC
• Operating time5
• approx. 4.5 hours (continuous distance/angle measurement)
• approx. 11 hours (distance/angle measurement every 30 seconds)
• approx. 22 hours (continuous angle measurement)
• Charging time
• Full charge . 4 hours
• External power supply. N/A

GENERAL SPECIFICATIONS

• Level vials
• Sensitivity of Plate level vial . 30″/2 mm
• Sensitivity of Circular level vial. 10’/2 mm
• Optical plummet
• Image. . .. . . .. . .Erect
• Magnification. 3×
• Field of view. 5°
• Focusing range. 0.5 m (1.6 ft) to ∞
• Display. 2″:Both sides, backlit, graphic LCD (128 × 64 pixel)
• 5″:Single side, backlit, graphic LCD (128×64 pixel)
• Point memory. 10,000 records
• Dimensions (W x D x H). 168 mm x 173 mm x 355 mm
• (6.6 in x 6.8 in x 13.1 in)
• Weight (approx.)
• Main unit (without battery) . 4.9 kg (10.8 lb)
• BC-65 battery . 0.1 kg (0.2 lb)
• Carrying case. 2.5 kg (5.5 lb)
• Dual charger and AC adaptor. 0.6 kg (1.3 lb)
