OWON MSO8202T Mixed Logic Analyzer Oscilloscope

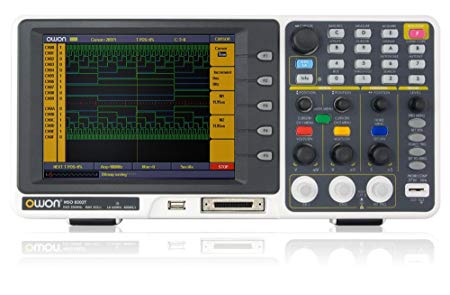

OWON MSO8202T Mixed Logic Analyzer Oscilloscope offers a 16 channel logic-analyser and a digital storage oscilloscope in one device for a really good price. The colorful TFT LCD panel with the resolution of 640 × 480 makes the wave easy to read, especially when a big data or many wave covered reciprocally.

Owon MSO8202T offers 200 MHz bandwidth at a sample rate of 2 GSa/s in oscilloscope mode and up to 66 MHz bandwidth at a sample rate of 400 MSa/s in logic-analyser mode.

Features :

2 in 1 ( DSO+LA )
8 inch LCD color display
Support USB for data transmission to PC
USB Flash Disk Storage
20 Automatic Measurements
Max.2M record length
Slope trigger and pulse trigger added

Specifications :

Bandwidth:  200MHz
Sample rate(Real time): 2GS/s (1GS/s for dual channels)
Horizontal Scale(S/div): 1ns/div~100s/div, step by 1~2~5
Rise time (at input, typical):  ≤1.7ns
Channels: Dual channels + external trigger
Display: 8.0″ color LCD, TFT screen, 640×480 pixels, 65535 colors
Input impedance: 1MΩ±2%, in parallel with 15pF±5pF
Channels Isolation:  50Hz: 100 : 1, 10MHz: 40 : 1
Max. input voltage: 400V (DC + AC PK-PK)
Record length: Max.2M points
Probe attenuation factor: 1X，10X，100X，1000X
Interpolation: (sin x)/x
Vertical resolution (A/D): 8 bit (2 channels simultaneously)
Vertical sensitivity: 2mV/div～10V/div(at input)
DC gain accuracy:  ±3%
DC accuracy(Average): Average>16:±(3% reading+0.05div) for ΔV
Acquisition modes: Sample, Peak Detect and Average
Trigger type: Edge, Video, Alternate, Pulse, Slope
Cursor measurement :  ΔV and ΔT between cursors
Waveform Math: ＋, －, ×, ÷, FFT
Waveform storage:  4 waveforms
Trigger mode:  Auto, Normal, Single
Communication interface:  USB, Support USB Flash Disk Storage
Cymometer:  Available
Power supply:  100V-240V ACRMS, 50/60Hz, CATII
Fuse:  1A, T grade , 250V

Logic Analyzer Characteristics
Sample rate (real time): 20S/s-400MS/s
Bandwidth:  66MHz
Threshold voltage:  ±10V (4 settings)
Input signal range:  ±15V
Channels:  16
Record length:  4M/channel
Input impedance:  1MΩ±2%
Trigger position setting:  pre-trigger, mid-trigger, re-trigger
Trigger mode:  Edge trigger, Bus trigger, Pattern trigger, Sequential queue trigger, Data width trigger, Distributed queue trigger
Data System:  Binary system, Decimal system, Hex
Data search:  Available
Digital filter: 0, 1, 2 optional
Storage setting: 10 settings

Includes :

Probe
Power cord
Logic analyzer module
User’s Manual
USB data cable
CD-Rom
Probe adjust
