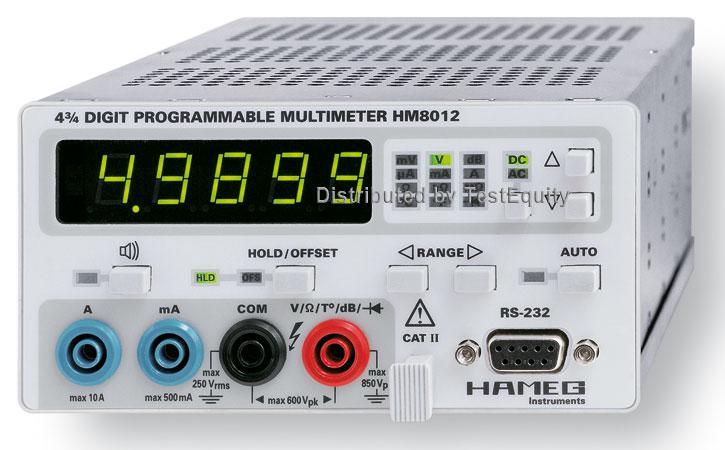

ROHDE & SCHWARZ HM8012 Programmable Multimeter

ROHDE & SCHWARZ HM8012 Programmable Multimeter is a programmable digital multimeter with 8 primary measurement functions, including 42 ranges. Autoranging provides optimum resolution of an unknown input magnitude. The bright 5-digit display will represent a measured magnitude of up to 50,000 points.

The absolute resolution obtained is 10 µV, 10 nA or 10 MΩ at a basic dc accuracy of 0.05%. Input resistance exceeds 1 GΩ in the VDC mode allowing precise measurement on high source resistance. True RMS measurements of AC voltage/current even of distorted waveforms are made up to 100 kHz and AC+DC values can be evaluated.

HM8012 multimeter is capable of making temperature measurement with a Pt100 sensor in °C or °F up to 0.1° resolution. At diode measurements, the HM8012 shows the junction voltage of the DUT, while a constant current is supplied. Analysis of audio and communication circuits is easy, because you can read in dB with a resolution of 0.01 dB.

All instrument functions can be controlled via a RS-232 standard interface, with the provided software under Windows®. Gradients can be recorded over a given time and can processed under Excel®.

programming feature of the HM8012 permits integration in an automatic test environment as a system multimeter. The PC software supplied with the HM8012 may be used to control the instrument or to automatically record measurement results. The measurement results will be shown in numeric and graphical form..

4-3/4 Digit display with 50,000 counts
Basic accuracy 0.05%
Makes and displays 3 to 6 measurements/sec
Resolution: 1 0µV, 0.01 dBm, 10 nA, 10 mΩ, 0.1°C
True RMS measurement of AC or AC + DC
Offset Function/Relative Value measurement
RS-232 Interface and software included
Auto-Range: 42 measurement ranges
Front panel RS-232
HM8001-2 Mainframe required for operation

Includes operating manual, interface cable (HZ14), PVC test leads (HZ15), and software CD.
