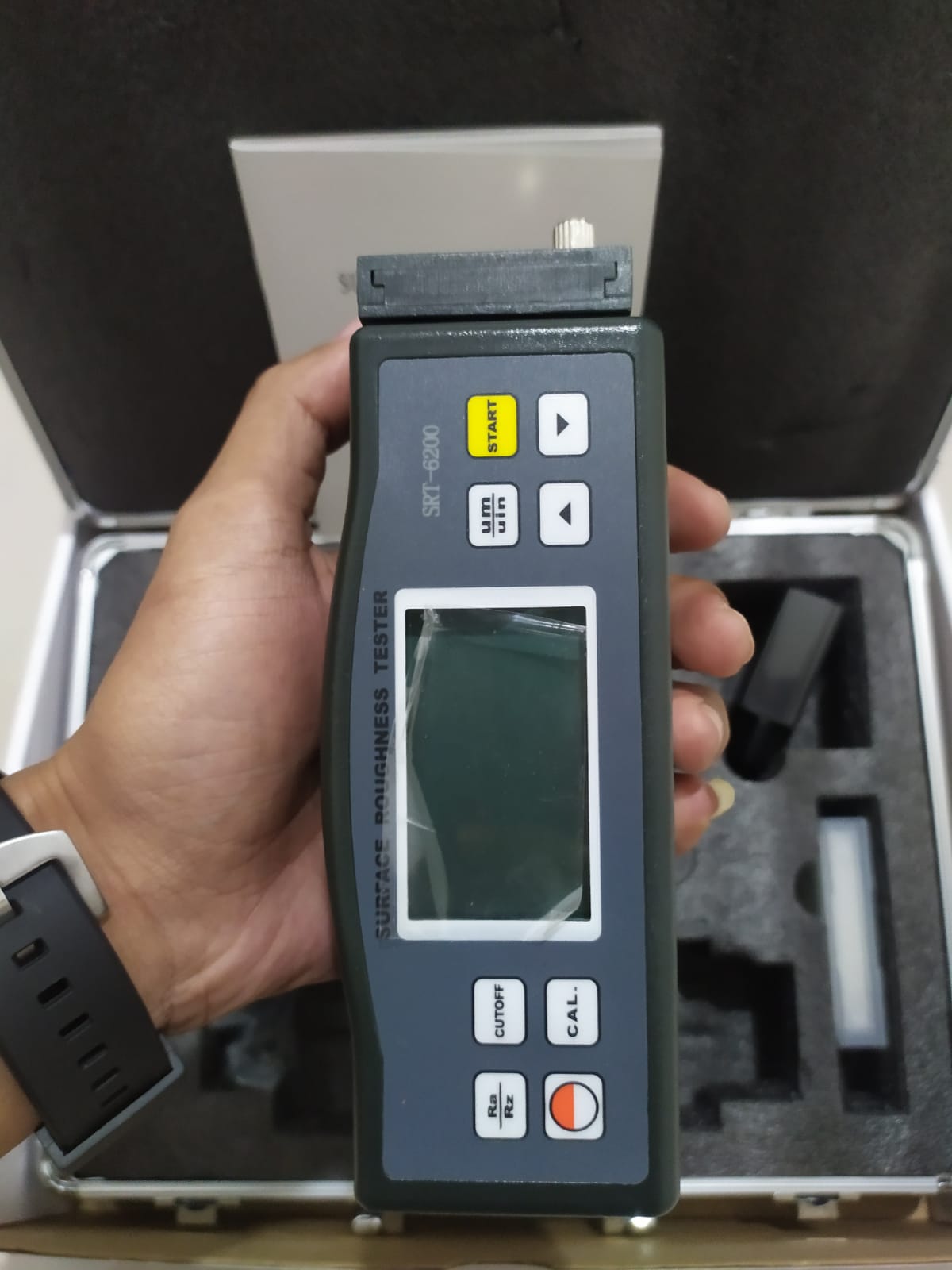

Surface Roughness Tester Landtek SRT-6200
Rp 13.550.000 *Inc. PPN
- 1 x Digital Surface Roughness Tester
- 1 x Metal Carrying Case
- 1 x Standard Sensor
- 1 x Standard Sample Plate
- 1 x Operation Manual
- 1 x Screwdriver
- 1 x Adjustable Leg
1 x Sheath of Sensor
Sudah yakin dengan produk ini? Klik Tombol “Beli Sekarang”
*Harga tidak mengikat, sewaktu waktu bisa berubah tanpa pemberitahuan dahulu
Anda Perusahaan butuh penawaran harga resmi? Klik tombol “Penawaran Harga”
Related Products
Surface Roughness Tester Landtek SRT-6200 is designed to measure roughness of material in 2 parameters (Ra, Rz) using the built-in Diamond pin probe. Compatible with four standards: ISO, DIN, ANSI and JIS.
Description :
- It has 4 wave filtering methods (RC, PC-RC,GAUSS & D-P).
- In addition, said parameters can be downloaded directly to PC via the optional RS-232 CD software & cables.
- This tester is widely used in production site to measure surface roughness of various machinery-processed parts and calculate corresponding parameters.
- Easy measurement can be done by placing the sensor on the surface then uniformly slides along the surface by driving the mechanism inside the tester. The sensor measures the roughness of the surface via the sharp built-in probe.
- This roughness causes displacement of the probe which results in change of inductive amount of induction coils so as to generate analogue signal, which is in proportion to the surface roughness at output end of phase-sensitive rectifier. The exclusive DSP processes and calculates then outputs the results clearly on LCD.
Features :
- Multiple parameter measurement: Ra, Rz
- Highly sophisticated inductance sensor
- Fourwave filtering methods : RC, PC-RC, GAUSS and D-P
- Built-inlithium ion rechargeable battery and controlcircuit with high capacity
- Selectable Metric (µm) and Imperial (µinch)
- Exclusive DSP processes to output measurement results on LCD
- Rechargeable battery via USB cable or Power Adapter
Specifications :
- Multiple parameter measurement: Ra, Rz
- Filtering methods: RC, PC-RC, GAUSS and D-P
- Measuring Range
- Ra: 0.05-10.00 µm / 1.000-400.0 µinch
- Rz: 0.020-100.0 µm / 0.780-4000 µinch
- Accuracy:<=10%
- Fluctuation of display value: <= 6%

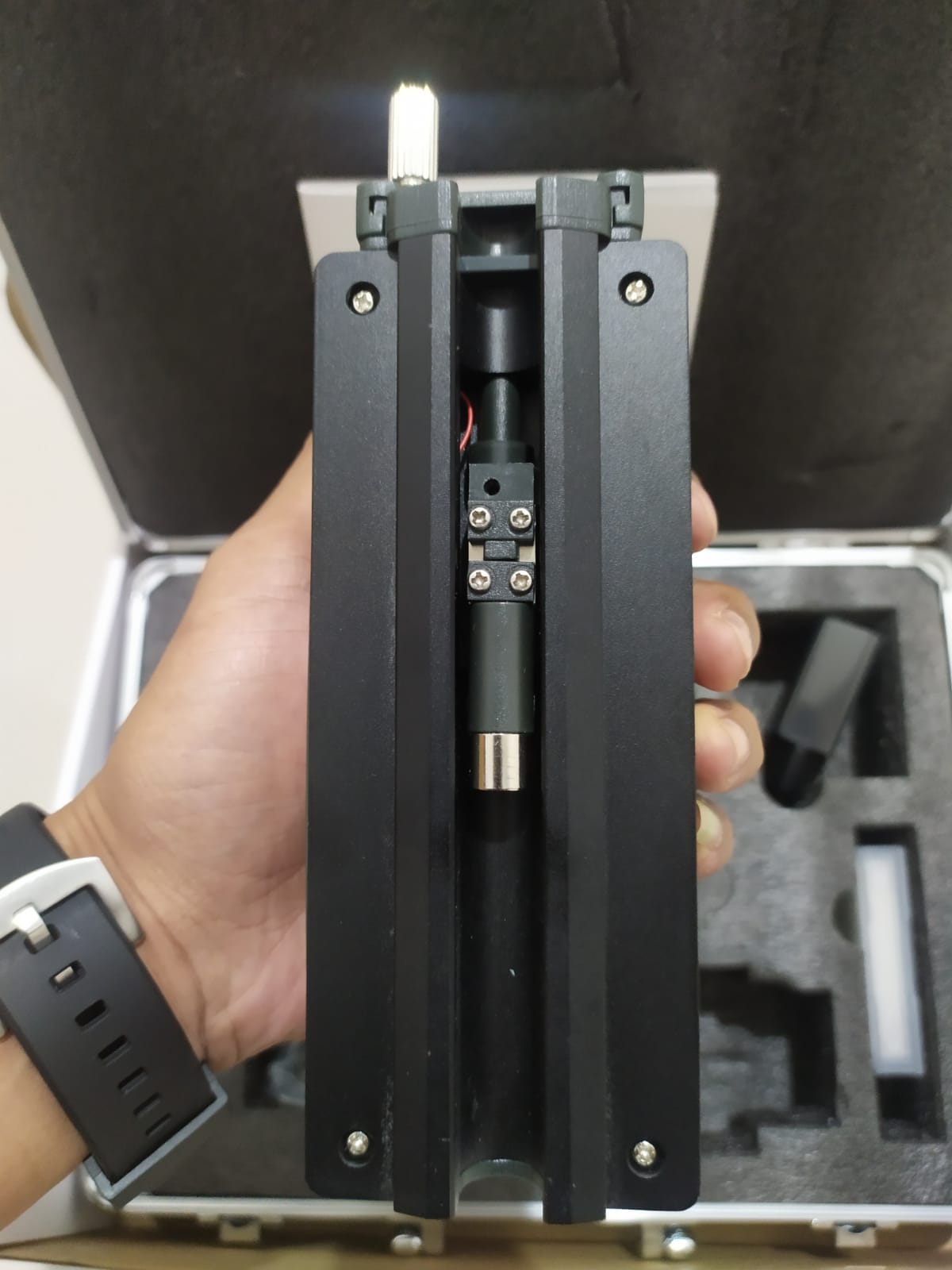

- Sensor
- Test Principle: Inductance type
- Material of Probe Pin: Diamond
- Radius of Probe Pin: 10µm
- Measurement Force of Probe: 16mN(1.6gf)
- Vertical Radius of Guiding Head: 48mm
- Probe Angle: 90°
- Maximum driving stroke: 17.5mm/0.7inch
- Cutoff Length: 0.25mm / 0.8mm / 2.5mm optional
- Evaluation length: 1-5 cut-off optional
- Driving speed
- sampling length = 0.25mm Vt=0.135mm/s
- sampling length = 0.8mm Vt=0.5mm/s
- sampling length = 2.5mm Vt=1mm/s
- returning Vt=1mm/s
- Resolution:
- 0.001µm if reading <10µm
- 0.01µm if 10µm =reading <100µm
- 0.1µm if reading =100µm
- Data output: communicate with PC through RS232C interface (optional, not included in set)
- Metric / Imperial Conversion
- Display: 4 digits, 10mm LCD with blue backlight

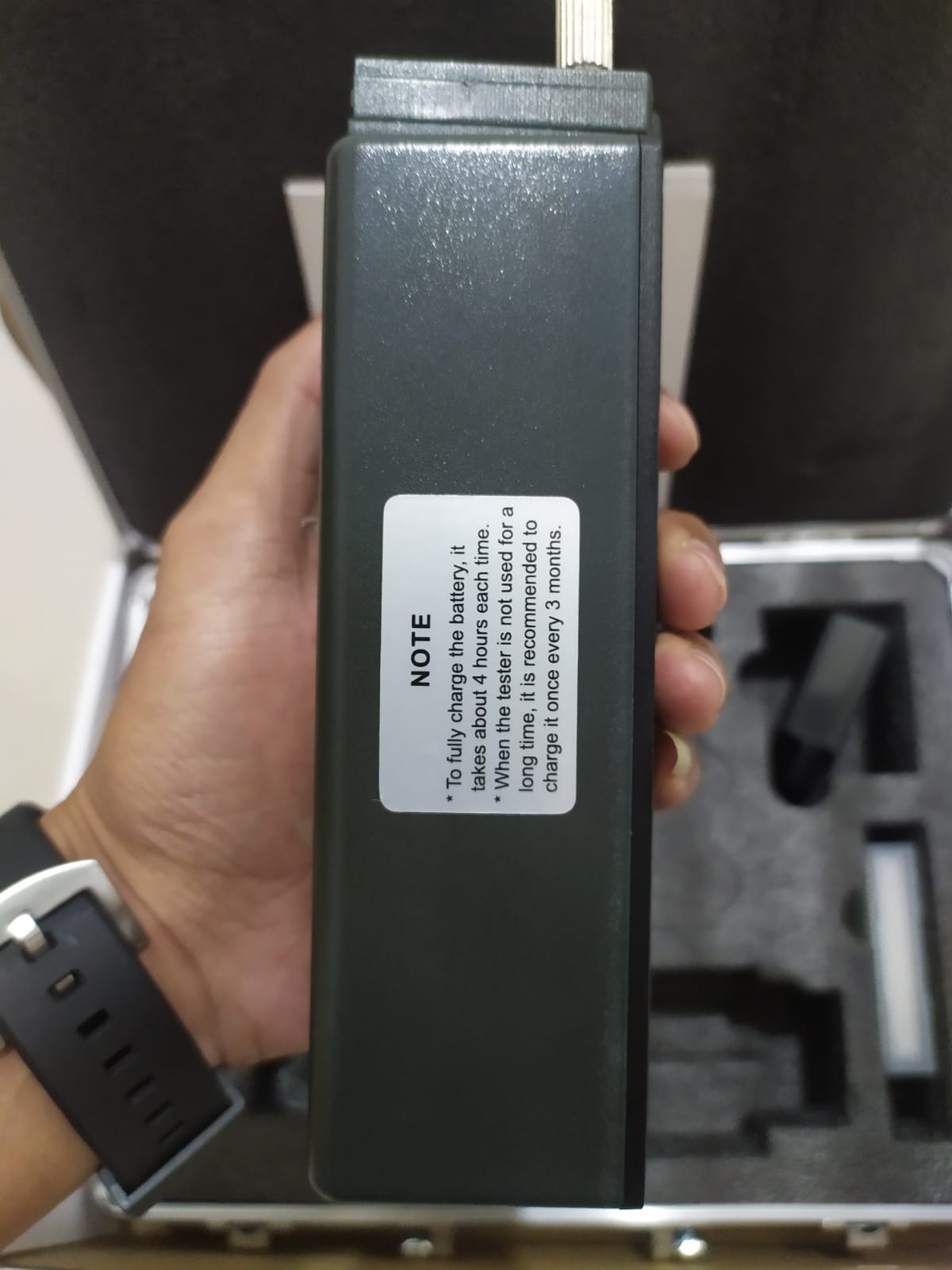

- Power Li-ion battery: rechargeable
- Operating conditions
- Temperature: 0~50°C
- Humidity: <80%
- Auto & Manual switch off
- Size: 140 x 57 x 48mm (5.5 x 2.2 x 1.9 inch)
- Weight: about 420g

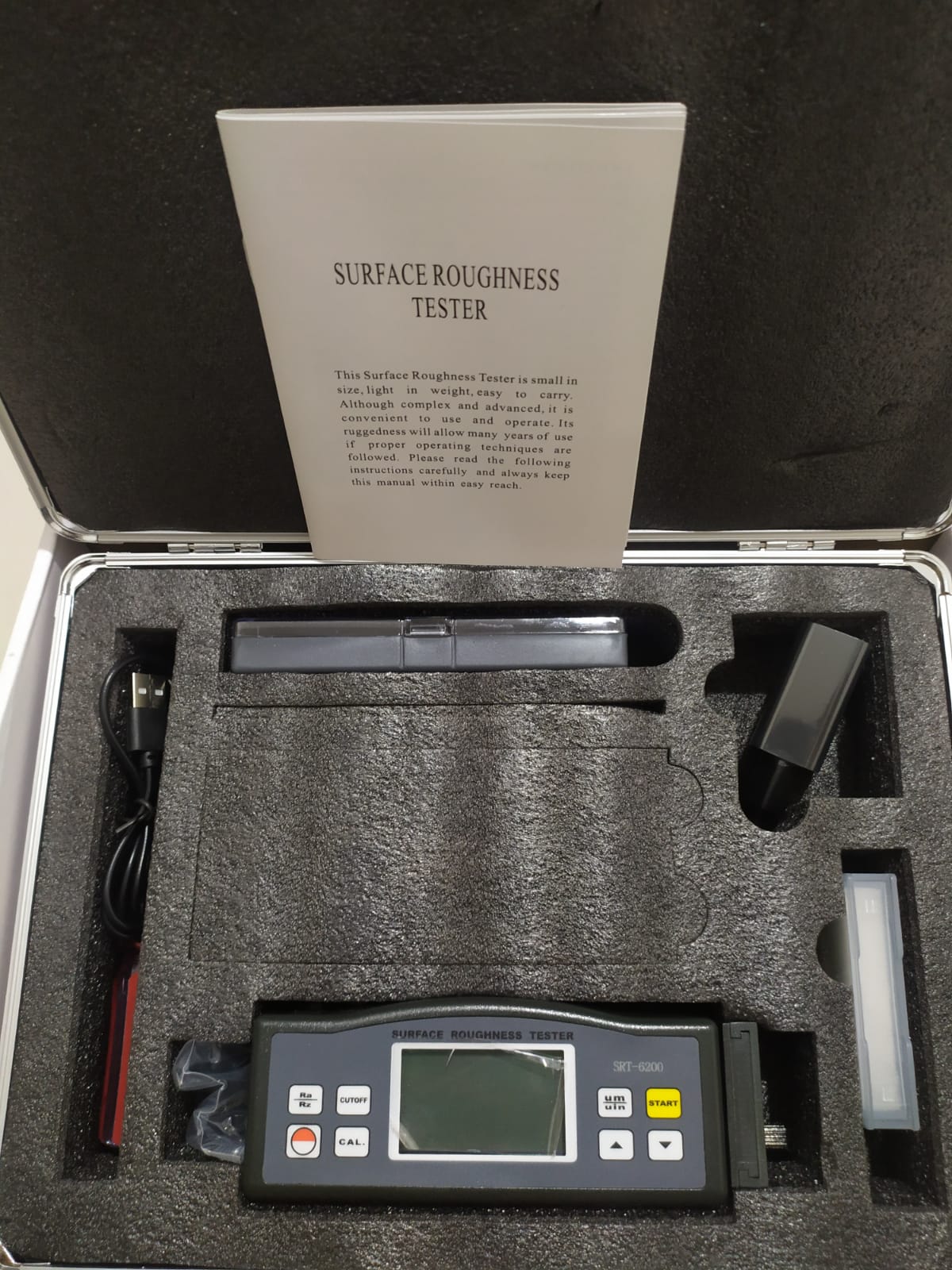

Set Includes :
- 1 x Digital Surface Roughness Tester

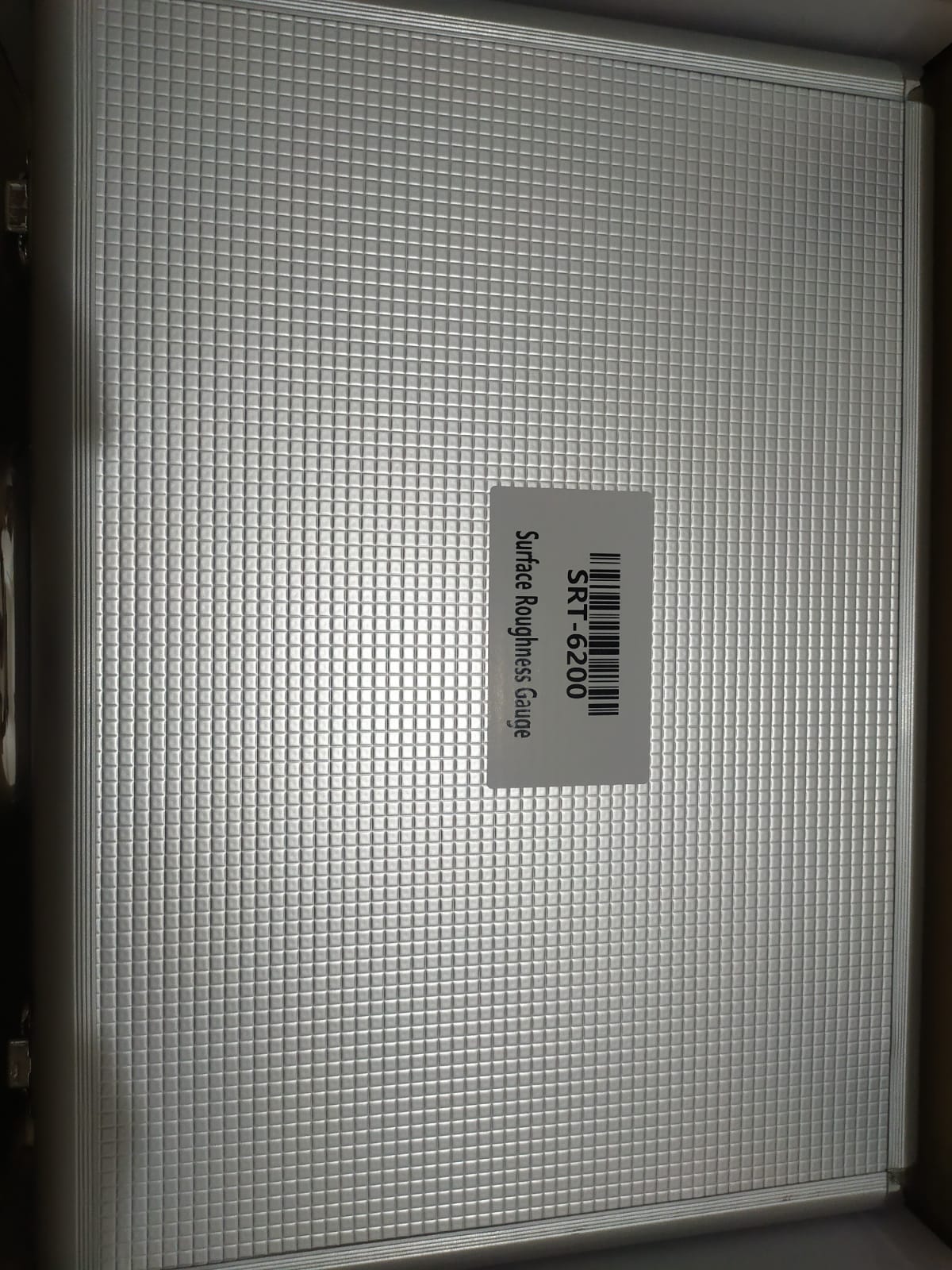

- 1 x Metal Carrying Case
- 1 x Standard Sensor
- 1 x Standard Sample Plate
- 1 x Operation Manual
- 1 x Screwdriver
- 1 x Adjustable Leg
- 1 x Sheath of Sensor
